Injector Splitter Converter PoE

Description

IEEE802.3bt 2.5G/1G 60/90w PoE Injector

PU100QB is a single port, IEEE 802.3bt 60/90w PoE Injector solution with 2.5Gbps/1Gbps Ethernet for remote PoE PD devices. Delivering up to 60/90W through 8 pins, the PU100QB supplies remote power for new applications such as wireless Access Points, Pan-Tilt-Zoom (PTZ) IP cameras, Thin-Client Panel display for digital signage and IP video-phones.

It complies to IEEE 802.3bt PoE++ standard to deliver 60/90w on both end-point and midspan pairs with a total power of 60/90w PoE output. It can work with 10/100/1000Base-T networking devices and emerging 2.5Gbps Ethernet devices such as Wi-MAX and wireless IEEE 802.11n access points.

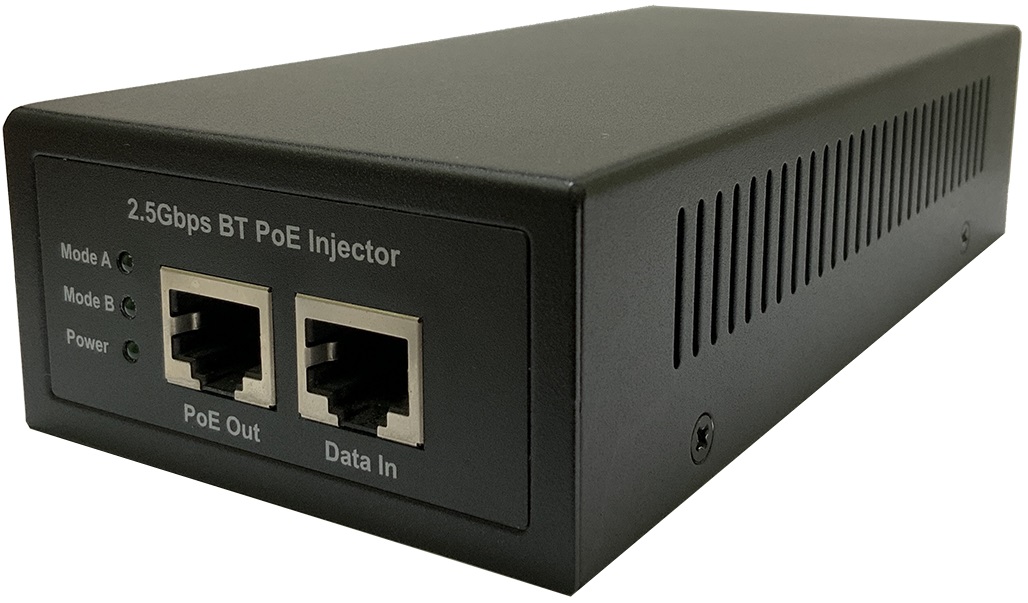

PU100QB


Key Features

  • Up to 60/90W of PoE Power Feeding on 4-pairs
  • IEEE 802.3bt Compliant
  • IEEE 802.3at/af backward compatible
  • Compatible with IEEE 802.3af or Legacy PoE application devices
  • Safe on Low Power Devices Receive Only the Power They Need
  • Safe and Reliable Power to WLAN Access Points
  • Automatic Detection and Protection of Non–standard Ethernet Terminal Devices
  • Supports 10/100/1000Mbps, and 2.5Gbps Ethernet LAN environment
Hardware Specification
No. of PoE PSE Ports 1 port IEEE 802.3bt/at/af PoE
Data Speed 10/100/1000Mbps, 2.5Gbps
Pin Assignment and Polarity 1/2(-), 3/6(+), 4/5(+), 7/8(-)
Output Power Voltage 56 VDC Maximal
PoE power output 60/90 Watts Maximal
Input Power Voltage 100-240 VAC, 50/60Hz
Dimensions 180 x 71 x 37 mm
Weight 530g
Indicators System Indicator: AC Power (Green)
Connectors RJ-45
Operating Ambient Temperature 0 to 40 degrees C
