Surge Protector
Description

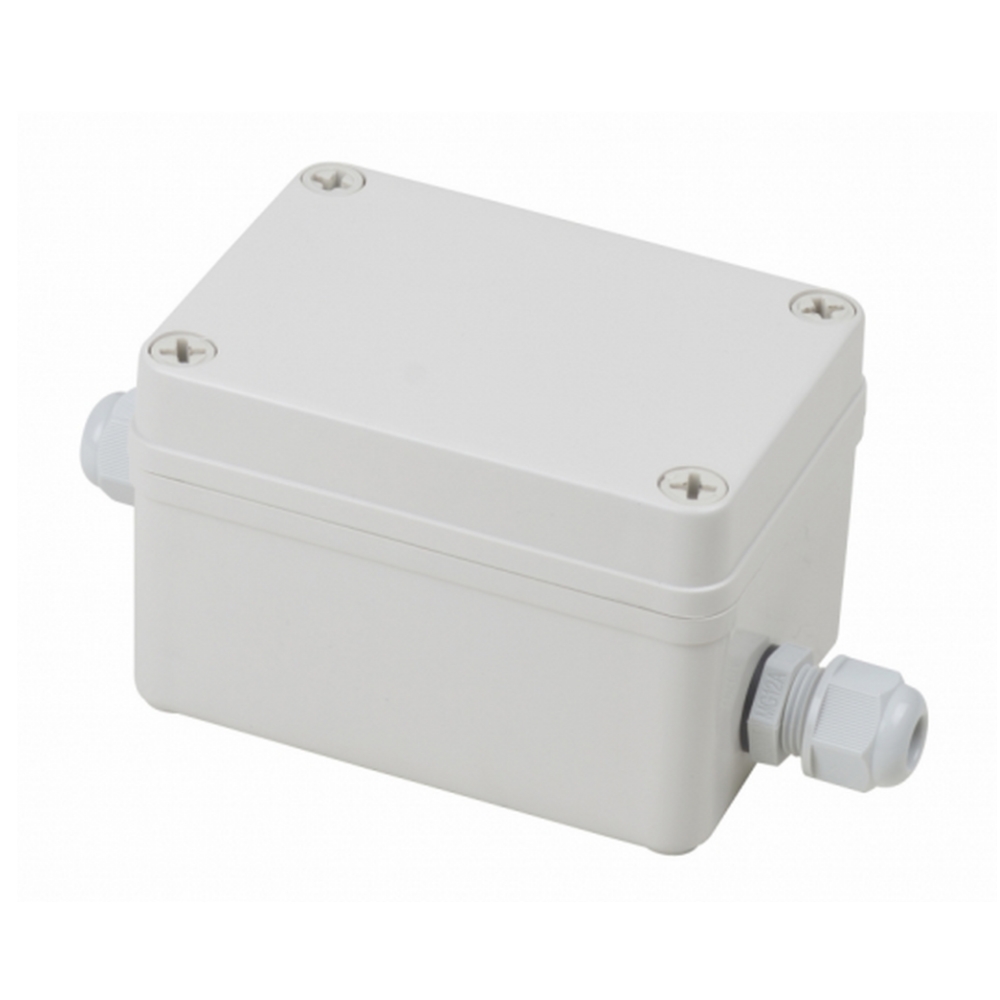

SP210G-ODU is a high quality surge protection device which special design to protect outdoor POE/Network equipment from lightning. The product is enclosed in an IP66 outdoor housing which could be easily mounted on a wall or a pole. It supports data transmission of 10/100/1000Mbps and PoE device up to 90W.
SP210G-ODU is a surge protector designed for Outdoor, Gigabit Ethernet, PoE device to protect your valuable equipment from electro-magnetic pulse or other power surge created by lightning and other strong changes in electricity. With the IP66 cases, SP210G-ODU has great ability of water and dust resistance. It is perfect for any outdoor PoE equipment protection.
SP210G-ODU
- Performs a different function than grounding requirements
- Protects equipment from high voltage surges from nearby lightning strikes
- RJ45 Jack?to RJ45?Jack
- Power and signal line protection
- Support 10/100/1000 Base-T
- Support Mid-Span PoE and End Span PoE
- Support IEEE 802.3af / 802.3at and 802.3bt PD upto 71W
- Support PoE PSE device up to 90W
- Comply with IEC 61000-4-5, IEC 61000-4-2,EN61000-4-5

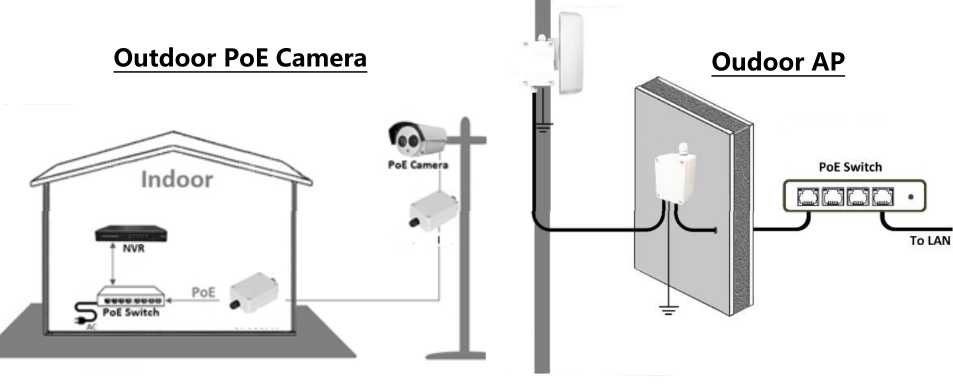

- Application for outdoor PoE equipment (Power over Ethernet) protection
| Specifications | |
|---|---|
| Input/output Interface | RJ45 x 2 |
| Pass Through Data Rates |
10/100/1000 Mbps |
| Response time | I< 0.7nS |
| Maximum discharge current/voltage: |
10KA?8/20 us) 20KV?8/20 us? |
| ESD Protection | 15KV (Air)/ 8KV( Contact) |
| 15KV (Air)/ 8KV( Contact) | 60V |
| Waterproof Rating | IP66 |
| Operating Temperature Range |
Operation: -40 to 70℃, Storage: -40 to 90℃, Humidity: up to 95% |
| Housing Material | ABS |
| Dimension (mm) | 80 x 158 x 45 |
