Modules PoE
Description

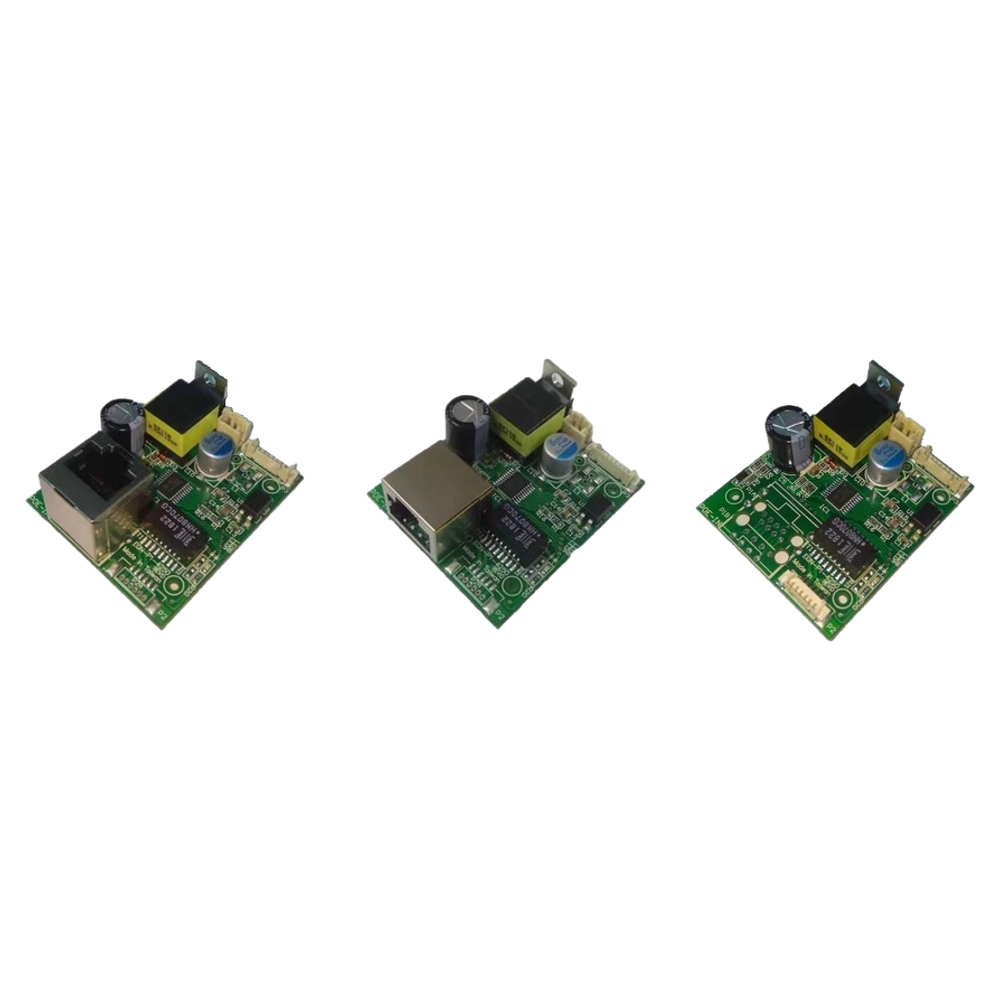

IEEE 802.3at PoE PD Splitter Module Series
PD-4250
Features
Specification
Applications
Download
Peak 30W high-power PoE PD Splitter, Compliant with IEEE 802.3at standard Design for meets 10/100 BASE-T
Built-in dual-channel bridge rectifier, directly supporting end-point and mid-span modes
Use 30W/45W/60W Injector or Midspan or PoE Switch, the Splitter support total 30W output. (@ P1 RJ-45 Connector VPoE IN=56Vdc)
Over-temperature Protection
High Efficiency, Easy installation
2 year warranty(Limited)
no abstract ...
no abstract ...
Product DM
