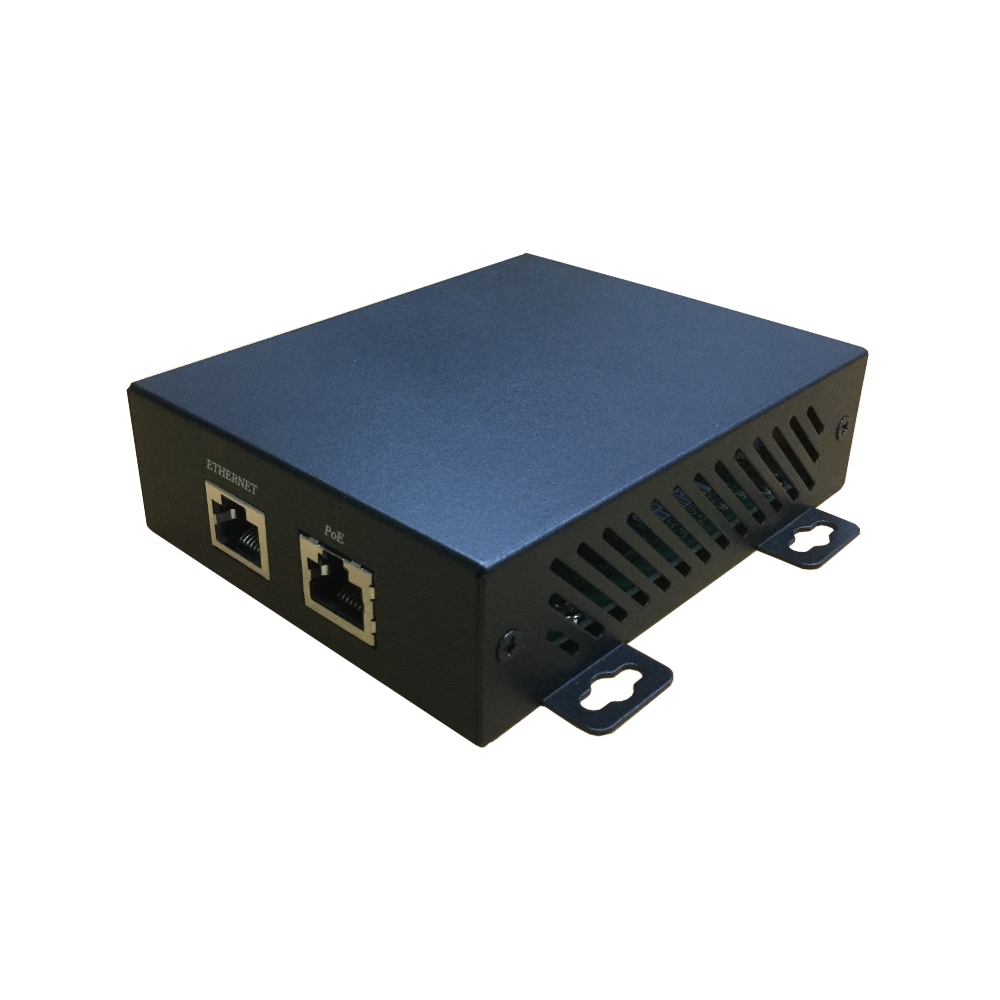

PS612GT is a high power PoE Splitter for use in Power over Ethernet systems. With Ethernet Input (data +power) port and Output (data only) port, PS612GT may split power from existing LAN cable and convert up to 12VDC/5A for power hungry applications such as Wireless APs, Security cameras and IP Phones. The internal current limit, short-circuit and overload protection are implemented to provide up to 12VDC/5A for use of DC output power.

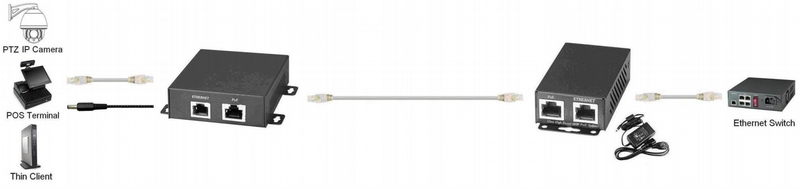

PS612GT can work in pair with PU100GT-60E or 90E, a high power PoE Injector, to deliver up to 12VDC/5A for use of high power devices, such as 60W IP Camera. PS612GT itself is powered by PU100GT-60E and so requires no separate power connection in the middle of the cable, making it extremely easy to connect and power IP cameras.
LAN Interface | Auto-Detection for 10/100/1000BaseT and full/half duplex Standard Straight-through, or Cross-over CAT 5 cable RJ-45 Connector x 2 |
POWER | OUTPUT: 12VDC 5A at full load |
LED Indictors | POWER: Power is ON |
Regulations & Approvals | FCC, CE, RoHS |
Physical Dimension | WxDxH: 109.6 ∗ 109.7 ∗ 30 (mm) |
Operating Environment | Humidity: up to 95% Temperature: 0 ~ 55 degree C |
