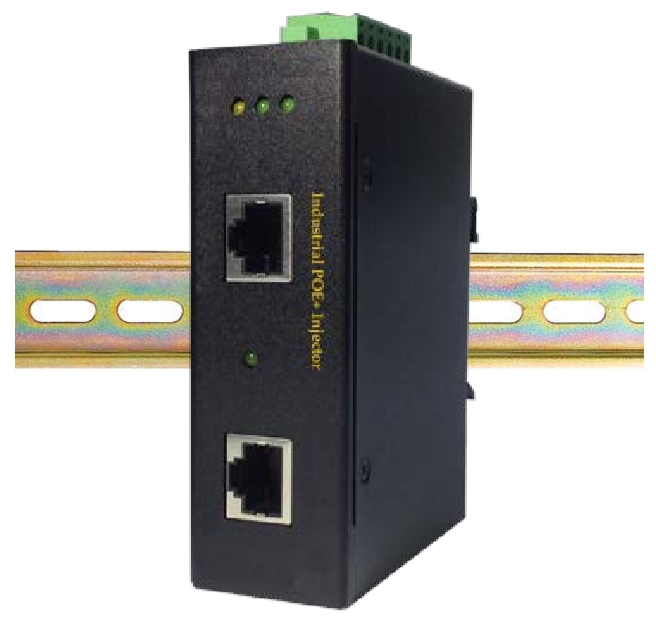

This Super Voltage Booster --- The high power Single port industrial POE+ Injector is equipped with our high efficiency ColdDesign technology which allows low input voltage, such as 12/24/48VDC be boost up 55VDC to meet IEEE802.3at requirement. The ColdDesign technology will not only boost up Input Voltage, also reduce the excessive heat problem to a minimum. It accepts the input voltage as low as 12VDC, to be boost up to 55VDC. It is being rigorously tested for your Security, Transportation and Telco application.
Specification IEEE Standard - IEEE 802.3 10Base-T Ethernet - IEEE 802.3u 100Base-TX Fast Ethernet - IEEE 802.3ab 1000Base-T Gigabit Ethernet - IEEE802.3af for POE - IEEE802.3at for POE+ Network Connector : - 1xRJ-45 10/100BaseT(X) Data - 1xRJ-45 10/100BaseT(X) Data with POE - Output power Network Cable - UTP/STP above Cat.5e Cable - EIA/TIA-568 100-ohm (100m) Protocol - CSMA/CD LED - PW1(Power 1) Green, - PW2(Power 2) Green, - ERR( Fault ) Amber, - POE Status(Green) - Flash: Overload - ON: POE Normal working - OFF: NO POE power detected POE Pin Assignment - End-Span Alternative A mode - Positive(VCC+): RJ-45 pin 1,2 - Negative(VCC-): RJ-45 pin 3,6 Reserve polarity protection - Present Overload current protection - Present Power Supply - Redundant Dual DC 12V-48V Power Input Power Consumption - 1W@12/24/48VDC full load, Without POE Input Current - Max 3A@12VDC input Alarm Relay Contact - Relay outputs with current carrying capacity of 1 A @24VDC, - Relay in short circuit mode when 2 powers are connected. in open circuit mode when only one power supply is connected POE power - POE power 30watts, Maximum 36Watts at 12VDC. Removable Terminal Block - Provide 2 Redundant power , Alarm relay contact ,6 Pin - Wire range: 0.34mm^2 to 2.5mm^2 - Solid wire (AWG):12-24/14-22 - Stranded wire(AWG): 12-24/14-22 - Torque:5lb-In/0.5Nm/0.56Nm - Wire Strip length: 7-8mm Operating Temperature - -40℃~75℃ fully tested Surface temperature - Surface temperature rises 6°C full load in a 75°C chamber Operating Humidity - 5% to 95% (Non-condensing) Storage Temperature - -40℃~85℃ MDBF(mean time between failure) - 5,510,304hrs (MIL-HDBK-217F) at 25°C Housing - Rugged Metal ,IP30 Protection Case Dimension (W X D X H) - 102mmx32mmx75mm (LxWxD) Installation mounting - DIN Rail mounting and Wall Mounting EMC/EMS - CE, FCC EMI - FCC Part 15 Subpart B Class A, - CE EN 55022 Class A
