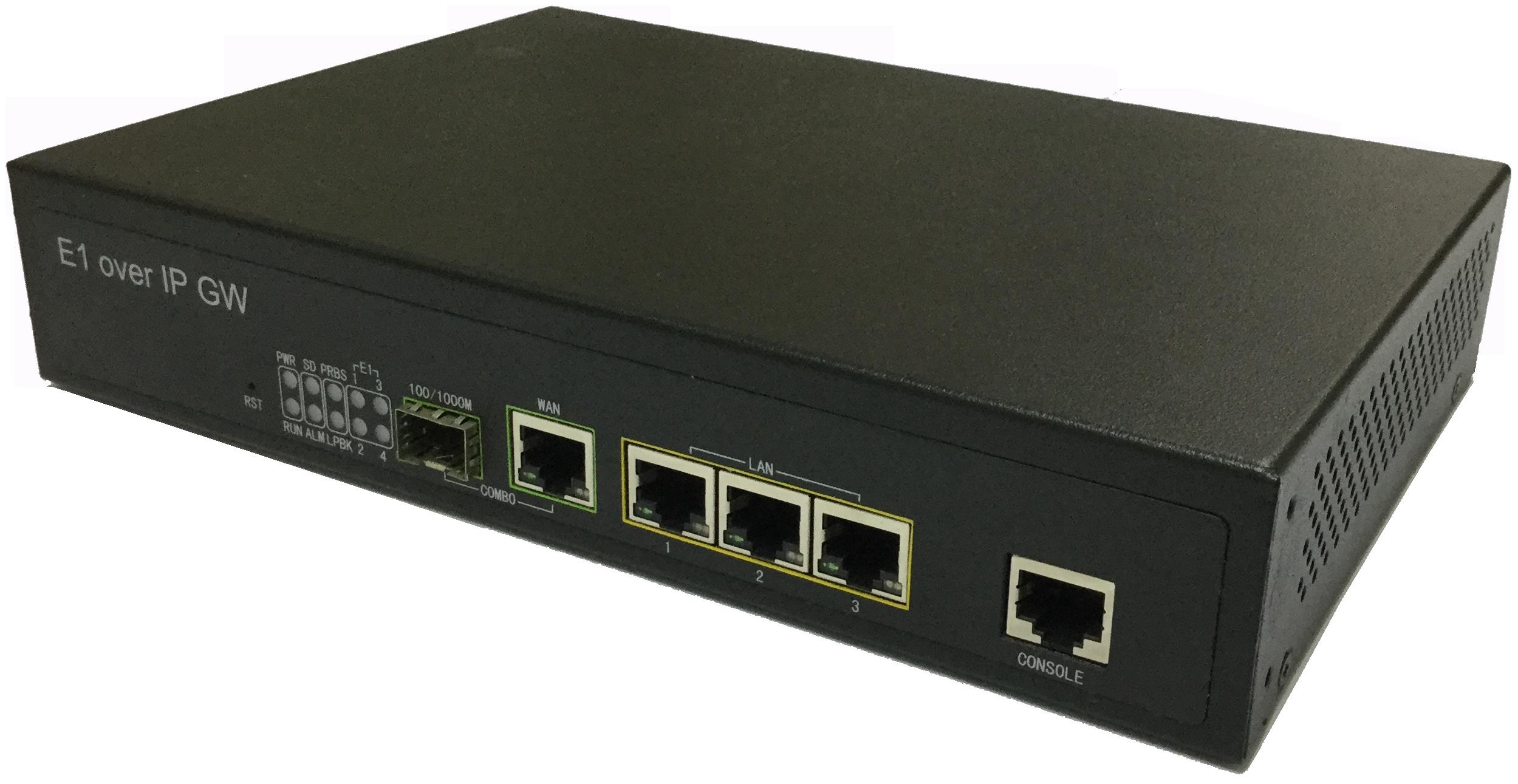

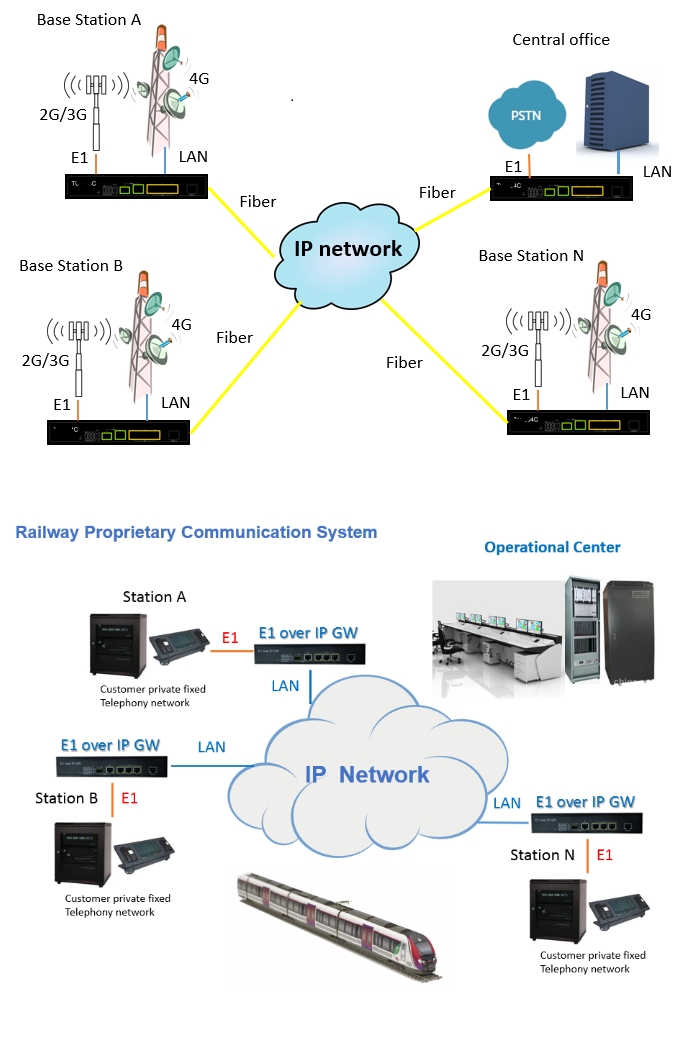

G4640/G4620 offers a solution for extending traditional E1 services transparently over Ethernet network. The device converts the data stream coming from its TDM ports into Ethernet packets that are encapsulated using TDM over IP method and forwarded over Ethernet, G4640/G4620 offers point to point or point to multi-point synchronization for voice/leased line applications. G4640/G4620 also provide 4 Gigabit Ethernet ports (1 x Combo, 3 x LAN) for connectivity to IP networks and Ethernet devices. Management is performed locally by a terminal, or remotely via Web, Telnet, or SNMP.
Several versions of the unit are available, offering different of impedance types and 4 or 2 x E1 ports to suite different application requirements.
Giga Ethernet Interface | |
---|---|
Standard | IEEE 802.3 / IEEE 802.3u |
Interface | IEEE 802.3/802.3u 10/100/1000M Base-T |
Bridging Capability: | Complied with IEEE 802.1d transparent bridge Complied with IEEE 802.1d transparent bridge |
Connection Type: | RJ45, 4 ports |
Ethernet packet size: | Maximum packet size up to 9K jumbo frame | SFP Interface |
Type | One 100Base-FX 802.3u interface or 10/100/1000Base-FX 802.3u interface, SFP type |
Parameter | The detail specification is in order information required like fiber type, wavelength and optical power. | E1 Interface |
Standard: | ITU-T G.703, G.704, |
No. of E1 output: | 1~4, scaled down automatically per E1 alarms |
Line rate: | 2048 Kbps +/- 50 PPM |
Line Code: | HDB3 |
Framing: | PCM31, PCM31C, PCM30, PCM30C |
Pulse shape: | Meet ITU-T G.703 |
Impedance: | Balanced 120ohm+/-5% resistive or unbalanced 75ohm+/-5% resistive, software programmable |
Connection Type: | RJ-45 (120ohm) or BNC (75ohm) | Mechanic |
Desktop (WxHxD) | 234 x 155 x 44 mm | Operation |
Temperature | 0° ~ 50 degree C |
Humidity | 5 ~ 95% non-condensing | Configuration |
Configuration | Local console (RS232) Telnet access Web-based GUI (HTTP) |
Network Management | Web-based GUI for express setup, configuration and management Menu-driven interface for local console and Telnet access Password protected management and access control list for administration SNMP management with SNMPv1/SNMPv2/v3 Software upgrade via web & TFTP server |
