Unmanaged PoE Switch

Description

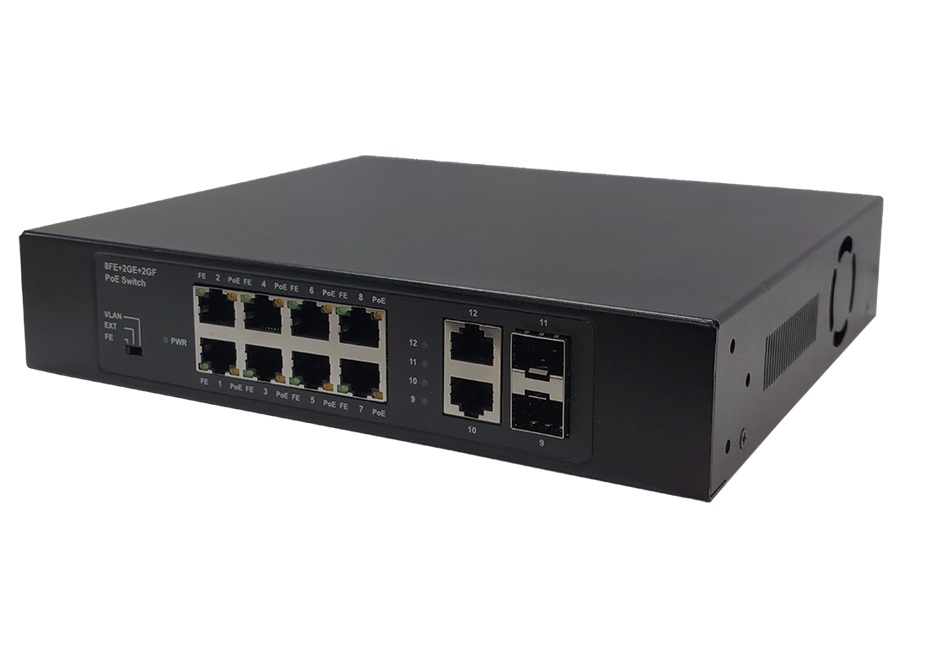

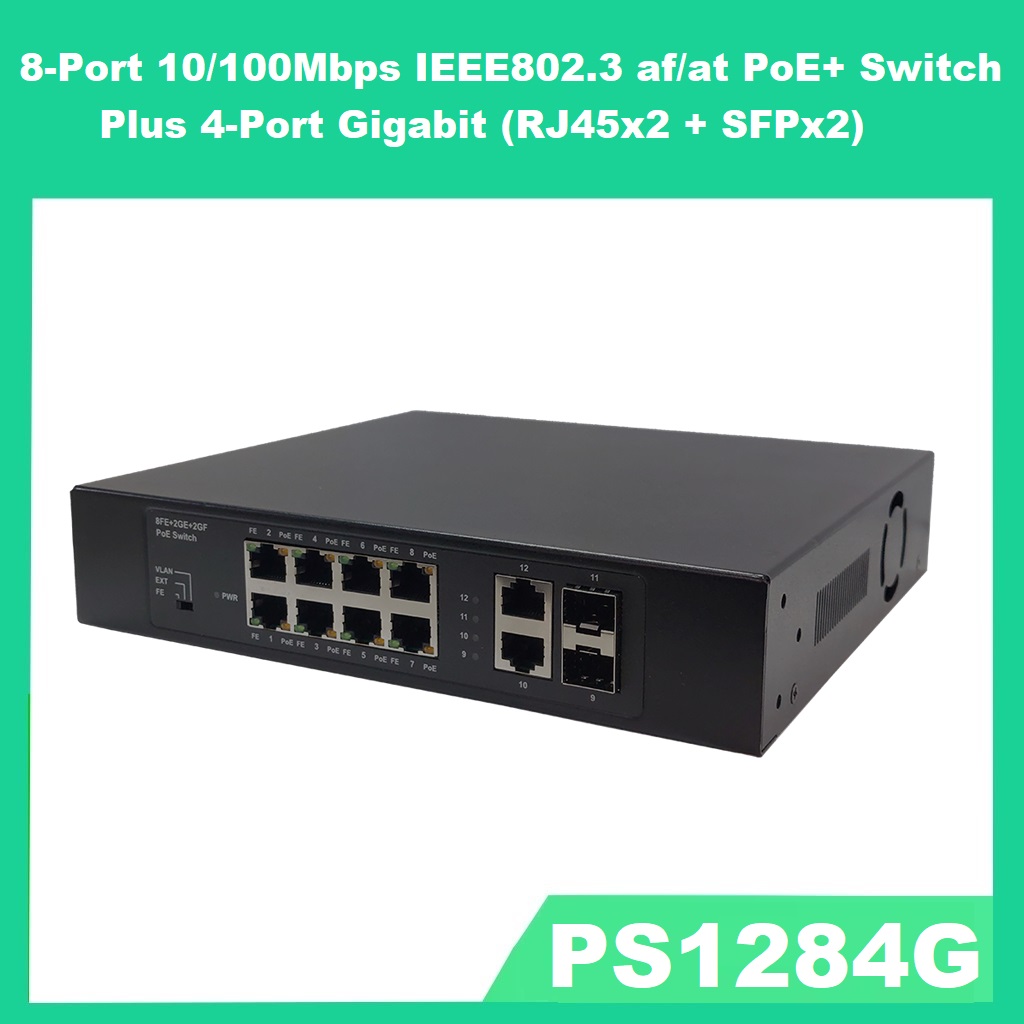

8-Port 10/100Mbps IEEE802.3 af/at PoE+ Switch Plus 4-Port Gigabit (RJ45x2 + SFPx2)

PS1284G is an 8-port 10/100Mbps with IEEE802.3af/at PoE+ Switch, plus 4-port Gigabit uplink port with RJ45x2 + SFPx2 connectors. All the PoE ports may support up to 30W per port basis.

The PS1284G also features 250meter Ethernet extension, and VLAN functions. The slide switch on the front panel is to select FE, EXT, and VLAN functions for Ethernet. The FE is to set for all the 8 port as standard 10/100Mbps Fast Ethernet. The EXT is to set for each of the 8 port to link at 10Mbps Ethernet to support up to 250meter cable extension for CAT5e cable. The VLAN is to set for each of the 8 ports as 8 individual isolated ports and to communicate only with the gigabit uplink ports.

With internal AC-to-DC power supply, it supports AC input power of 100VAC~240VAC with standard 3-prong AC power connector to provide PoE up to 120W/240W power budget. For each of the 8 ports with PoE function, it all supports over-current, over-voltage, and over-temperature protections.

PS1284G


Key Features

  • System Interface/Performance
    -RJ-45 port support Auto MDI/MDI-X function
    -Store-and-Forward Non-Blocking Switching
    -Back-plane Switching Fabric: 10Gbps
    -Packet Buffer Memory: 2M bits
    -4K MAC address table
    -Support 16K Jumbo packets
  • 4 Gigabit ports with RJ45x2 + SFPx2 connectors
  • Support 250meter Ethernet extension at 10Mbps
  • Support Virtual LAN (VLAN) from 8xFE to 4xGE
  • Metal Housing with Wall Mount Design
  • AC Power Input: 100VAC~240VAC
  • Support PoE total power budget up to 120W/240W
  • 8-port IEEE 802.3af/at PoE (max. 30W per port)
  • Support PoE over-current, over-voltage, over-temperature protections
  • Operating Temperature: 0°C~40°C
Specifications
IEEE Standards IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX /FX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-SX/LX
IEEE802.3x Flow Control and Back Pressure
IEEE 802.3af/at, PoE+
Switch Properties Back-plane (Switching Fabric): 10Gbps Packet Throughput ability (Full-Duplex): 1,488,100pps @64bytes
Transfer Rate 14,881pps for Ethernet port
148,810pps for Fast Ethernet port
1,488,100pps for Gigabit Ethernet port
Connectors 10/100BaseT: 8 x RJ-45 with auto MDI/MDIX and IEEE802.3af/at PoE+ function
1000Base-TX: RJ-45 with auto MDI/MDIX
1000Base-FX: Gigabit SFP
Jumbo Frame Support 16K Jumbo Packets
MAC Address 4K MAC addresses
Frame Processing Store-and-Forward
Protocol CSMA / CD
Slide Switch Mode FE: Normal Fast Ethernet ports x8
EXT: 250meter extension at 10Mbps for FE x8
VLAN: Virtual LAN from FEx8 to GEx4 ports
LEDs Power Indicator
-Green for DC input PWR
LANx8 Indicators
-Green/Flash for 10/100M Link/Activity
PoEx8 Indicators
-Amber for PoE ON
Gigabit and Act Indicators (GEx4):
-Green for 1000Mbps Link, and Activity,
-Amber for 10/100Mbps Link, and Activity.
Power Input AC input: 100VAC~240VAC, 50/60Hz
Consumption 3.76 Watts (Full load for System Ethernet)
PoE Polarity Pin 1/2 (+), Pin 3/6 (-)
PoE Power Budget Up to 120W / 240W
Operating Humidity 5% to 95% Non-condensing
Operating Temperature 0°C~40°C
Physical Dimension 44mm(W) x 195mm(D) x 220mm(H)
Weight 890g
Storage Temperature -40°C~75°C / -40°F~167°F
AC Surge Protection Standard 2KV surge protection
(optional 4KV)
Regulation Compliances FCC Part 15 Class A
CE, LVD
Warranty 1 year
Order Information PS1284G
