Unmanaged PoE Switch

Description

10-Port 10/100/1000BaseT (UTP) + 8-Port PoE Gigabit IEEE802.3 af/at PoE Switch

PS1082Gi is a 10-port Gigabit PoE Switch with RJ45 connectors plus 8-port IEEE 802.3af/at for PoE plug-and-play installation. This slim switch is designed with Rack-mountable, making installation simple and easy.

The IEEE 802.3at/af PoE standard makes the PS1082Gi to deliver Gigabit speed data and up to 30 watts PoE per port for up to 8 PoE ports with an embedded AC-to-DC power supply for a combined total power budget of 120watts.

The PS1082Gi is designed to support PoE with Over Current Protection / Over Temperature Protection / Over Voltage Protection.

The PS1082Gi can be used in extreme environments with an operating temperature range of 0°C to 45°C.

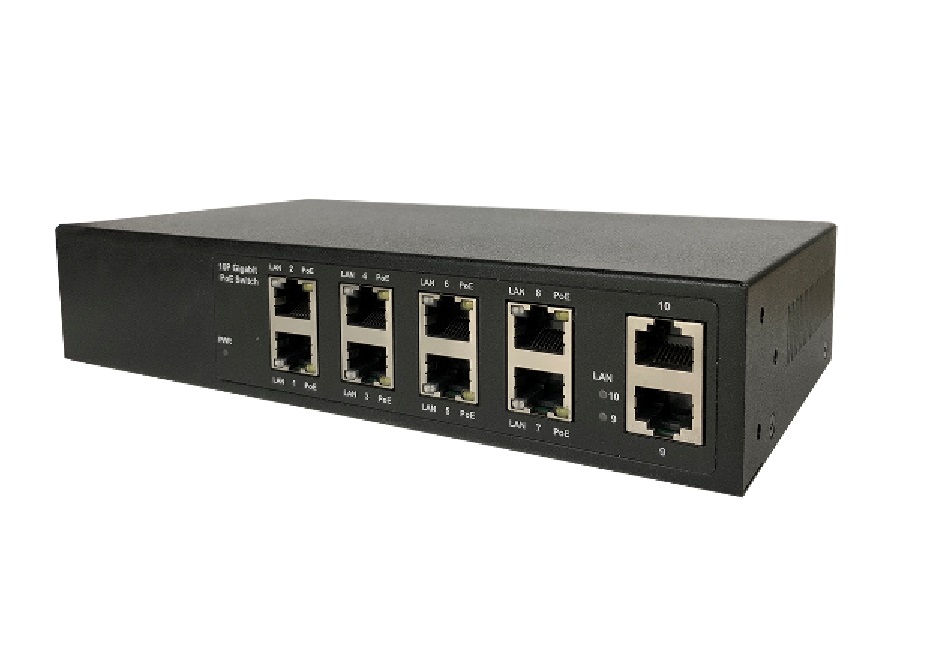

PS1082Gi


    Key Features

  • System Interface/Performance
    -RJ-45 port support Auto MDI/MDI-X Function
    -Store-and-Forward Switching Architecture
    -Back-plane (Switching Fabric): 20Gbps
    -8K MAC address table
  • Complies with Complies with IEEE 802.3, 10BASE-T,
    IEEE802.3u, 100BASE-TX, IEEE802.3ab,1000BASE-T,
    IEEE802.3az Energy Efficient Ethernet, IEEE 802.3x flow control and back pressure
  • Supports 8-port IEEE 802.3af/at (30W per port)
  • Total 10 ports Gigabit Switch
  • Embedded AC-to-DC Power Supply
  • Total PoE Power budget :120W
  • Power Input : 100VAC~240VAC/li>
  • Metal Housing with Rack Mount Design
  • Rack Mountable design
Specifications
IEEE Standards IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX /FX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-SX/LX
IEEE802.3x Flow Control and Back Pressure
IEEE 802.3bt/at/af, PoE++
Switch Properties Back-plane (Switching Fabric): 20Gbps Packet throughput ability (Full-Duplex): 1,488,100pps @64bytes
Transfer Rate 14,881pps for Ethernet port
148,810pps for Fast Ethernet port
1,488,100pps for Gigabit Ethernet port
Connectors 10/100/1000BaseT: 8 x RJ-45 with auto MDI/MDI-X function with IEEE802.3 af/at PoE
10/100/1000BaseT: 2 x RJ-45 with auto MDI/MDI-X
MAC Address 8K MAC addresses
Processing Store-and-Forward
Network Cable 10Base-T : 2-pair UTP/STP Cat. 3, 4, 5, 6 cable EIA/TIA-568 100-ohm (100m)
100/1000Base-TX : 2-pair UTP/STP Cat. 5, 6 cable EIA/TIA-568 100-ohm (100m)
Protocol CSMA/CD, Auto-Negotiation
Case Dimension Metal case, 220mm(W)x116mm(D)x44mm(H)
Weight 620g
LED Power Indicators : Green LED x 1 for PWR
LAN Indicators : Green for 1000M and Amber for 10/100Mbps
PoE Indicators : Amber for PoE ON
Power Supply 100~240VAC, for 120W
Consumption 3.76 Watts (Full load: Only Ethernet)
Overload Current Present
PoE Polarity 1,2 (+), 3,6 (-)
Operating Humidity 5% to 95% Non-condensing
Operating Temperature 0°C~45°C / -40°F~167°F
Storage Temperature -40°C~70°C / -40°F~185°F
EMI/EMS FCC Class A
EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS)
EN61000-4-8,
EN61000-4-11
CE EN55022 Class A, CE EN55024
Warranty 1 years
