PoE HUB
Description

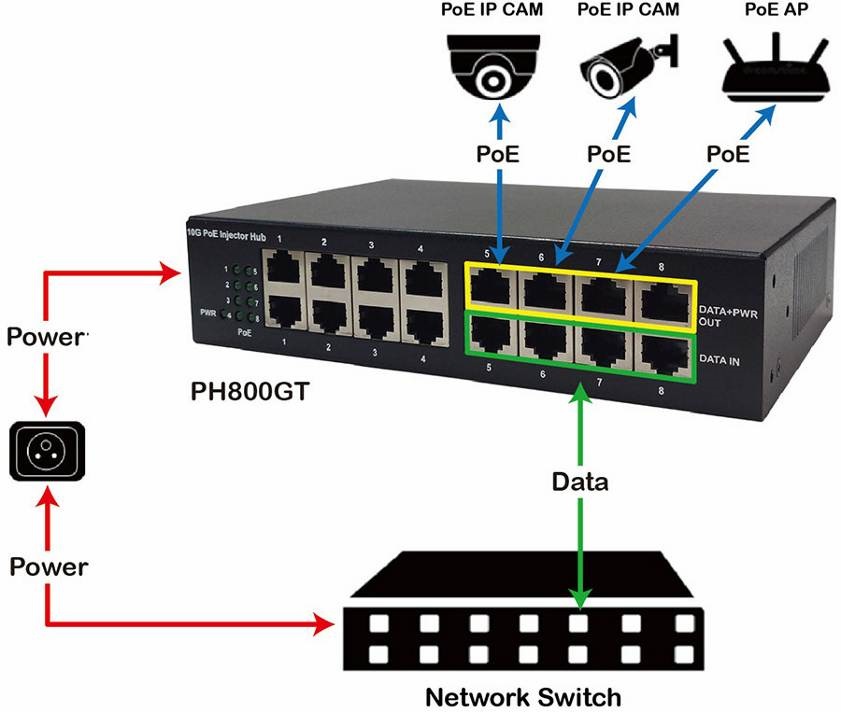

PH800GT is an 8-port 10G/5G/2.5G/1G/100M/10Mbps PoE Injector Hub compliant with IEEE 802.3af/at Power over Ethernet. It supplies PoE power of up to 30w per port for 10G over existing LAN cable CAT6/6A or higher UTP cable up to 70m to power up IEEE802.3af/at standard network accessories or through PoE splitter for non-PoE devices such as wireless Access Point, IP Cam, IP Phone, etc.
With DC Jack and Terminal Block, it supports DC power input of 48V~57VDC for a total maximum PoE power budget 240W. It also provides triple protection of over-current, over-voltage and over-temperature on each PoE port.

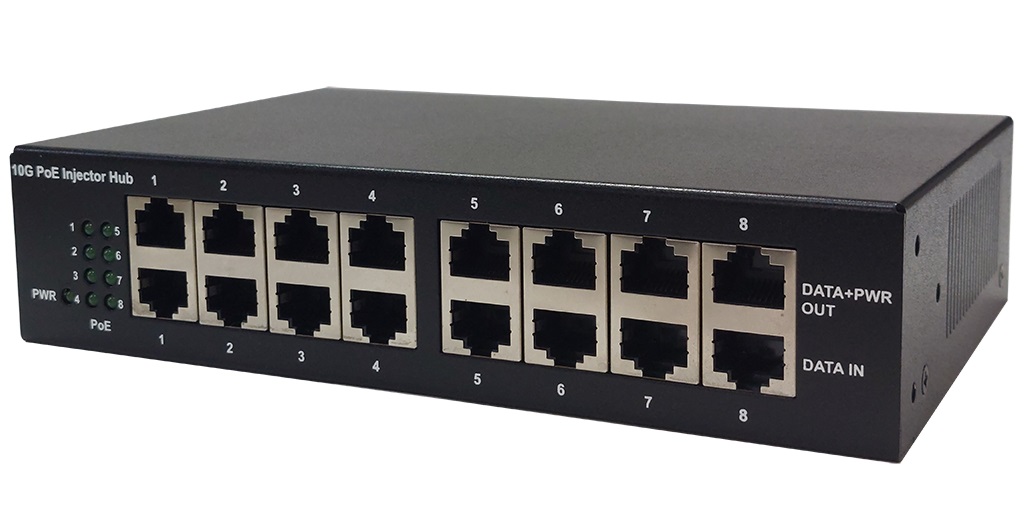

PH800GT
- 8 x 10G data input ports and 8 x 10G data + PoE output ports
- Auto negotiation for speeds of 10G/5G/2.5G/1G/100M/10Mbps
- Support IEEE 802.3af/at standards with PD detection
- Maximum PoE output power: 30W per port
- Selectable power source (DC Jack or Terminal Block) up to 240W
- Auto MDI/MDI-X cable detection
- High safety over-load/current, over-voltage, and over-temperature protections
- PoE surge protection: 2KV (optional 6KV)
- Compact desktop design / 19” rack-mount metal housing
| Hardware Specification | |
|---|---|
| Interface | Data In Ports: 8 x RJ-45 STP Data+PWR Out Ports: 8 x RJ-45 STP |
| LEDs | Power x 1 (Green), PoE Status x 8 (Green) |
| Network Cable | 10Base-T: 2-Pair UTP Cat. 3, 4, 5, up to 250m 100Base-TX: 2-Pair UTP Cat. 3, 4, 5, up to 100m 1000Base-TX: 2-Pair UTP Cat. 3, 4, 5, up to 100m 2.5G/1000Base-T: Cat.5e or higher UTP (<=100m) 5G Base-T Cat.6 or higher UTP (<=100m) 10G Base-T Cat.6A or higher UTP (<=70m) |
| Dimension (W x D x H) | 188 x 120 x 44 mm |
| Weight | 0.9kgs |
| Operating Temperature | 0 ~ 40 Degree C |
| Storage Temperature | -40 ~ 70 Degree C |
| Humidity | 5 ~ 95% (non-condensing) | Power over Ethernet |
| PoE Standard | IEEE 802.3af/at PoE |
| PoE Function | Auto Recovery, OVP, OCP, OTP |
| PoE Power Output | Per Port 48V~56VDC max.30 watts |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| Power Adaptor Budget | 120W (Optional 240W for Terminal Block) | Standards Conformance |
| Standards Compliance | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3az 1000Base-TX Gigabit Ethernet IEEE 802.3an/bz, 10GBase-T, 5G/2.5GBase-T IEEE 802.3af/at Power over Ethernet |
| Regulation Compliance | FCC Part 15 Class A, CE |
