PoE HUB

Description

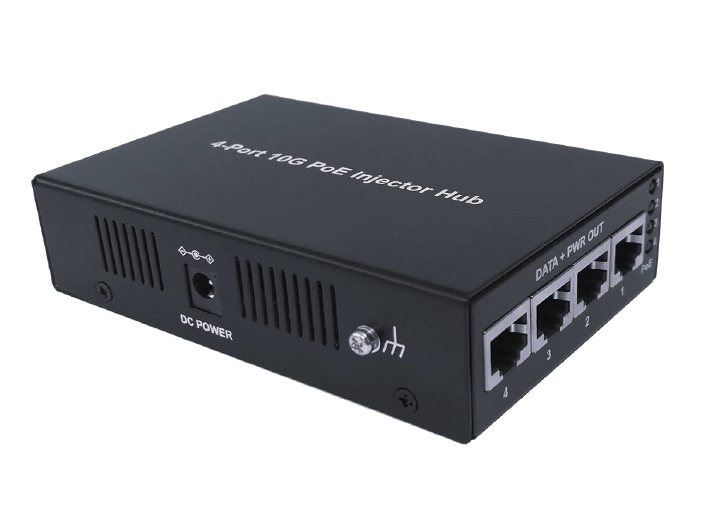

PH400GT is a 4-port 10G/5G/2.5G/1G/100M/10Mbps Injector Hub with Power over Ethernet (PoE). It provides triple protection of over-current, over-voltage and over-temperature on individual PoE port.

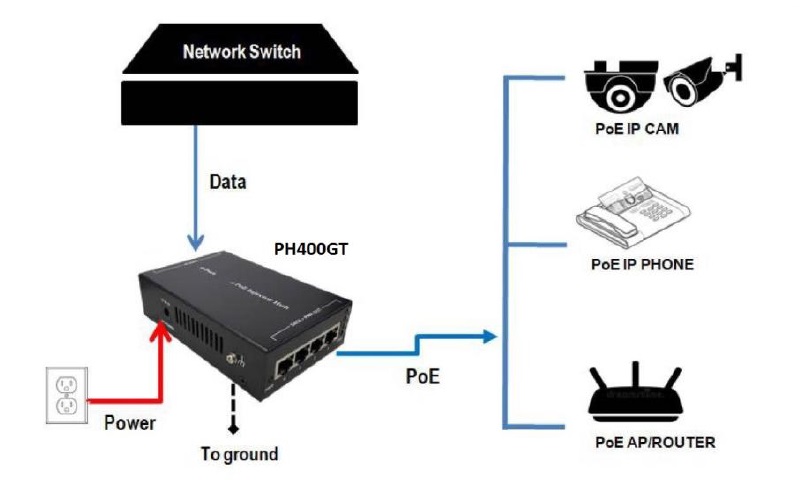

It supplies PoE power of up to 30w per port over existing LAN CAT6A cable up to 100m to power up IEEE802.3af/at standard network accessories or through PoE splitter for non-PoE devices such as wireless Access Point, IP Cam, IP Phone, etc.

PH400GT


  • 4 data input ports and 4 data + PoE output ports
  • Support IEEE 802.3af and IEEE 802.3at standards with PD detection
  • PoE power supply over pins 1/2 (+) and 3/6 (-)
  • Maximum PoE output power: 30W per port
  • Centralized power budget up to 65W (optional power adaptors up to 120W)
  • Auto negotiation for speeds of 10G/5G/2.5G/1G/100M/10Mbps
  • Auto MDI/MDI-X cable detection
  • Compact desktop design (120mm x 78mm x 32mm)
  • High safety over-load/current, over-voltage, and over-temperature protections
Hardware Specification
Interface Data In Ports: 4 x RJ-45 STP
Data+PWR Out Ports: 4 x RJ-45 STP
LEDs Power x 1 (Green), PoE Status x 4 (Green)
Network Cable 10Base-T : 2-Pair UTP Cat. 3, 4, 5, up to 250m
100Base-TX : 2-Pair UTP Cat. 3, 4, 5, up to 100m
1000Base-TX : 2-Pair UTP Cat. 3, 4, 5, up to 100m
2.5G/1000Base-T : Cat.5e or later UTP (<=100m)
5G Base-TX Cat.6 or later UTP (<=100m)
10G Base-X Cat.6A or later UTP (<=100m)
Dimension (W x D x H) 120 x 78 x 32 mm
Weight 0.5kgs
Operating Temperature 0 ~ 40 Degree C
Storage Temperature -40 ~ 70 Degree C
Humidity 5 ~ 95% (non-condensing)
Power over Ethernet
PoE Standard IEEE 802.3at/af PoE
PoE Function Auto Recovery, OVP, OCP, OTP
PoE Power Output Per Port DC 56V max.30 watts
Power Pin Assignment 1/2(+), 3/6(-)
Power Adaptor Budget 65W (Optional 36W or 90W or 120W)
Standards Conformance
Standards Compliance IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3az 1000Base-TX Gigabit Ethernet
IEEE 802.3an/bz, 10GBase-T, 5G/2.5GBase-T
IEEE 802.3af/at Power over Ethernet
Regulation Compliance FCC Part 15 Class A, CE
