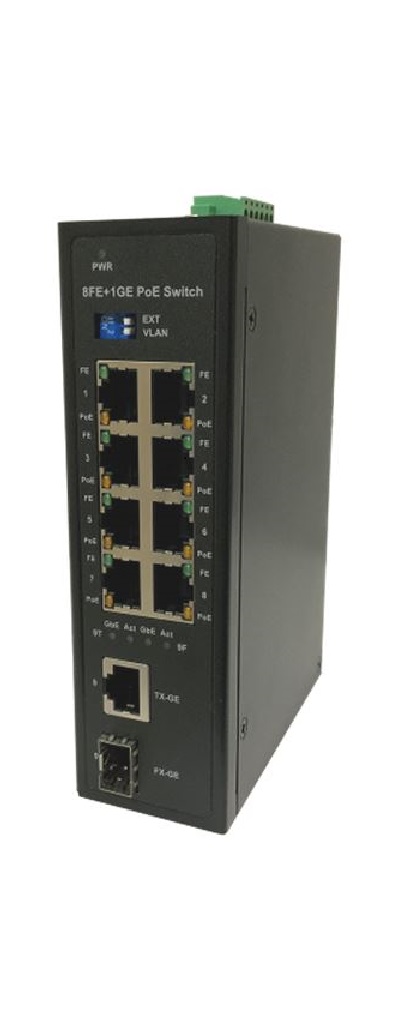

8-Port 10/100Mbps IEEE802.3 af/at PoE+ Switch Plus 1-Port Uplink Gigabit Combo (RJ45 / SFP)

DP981CG is a hardened 8-port 10/100Mbps with IEEE802.3af/at PoE+ Switch, plus 1-port uplink Gigabit Combo port with RJ45/SFP connectors. All the PoE ports may support up to 30W per port basis. The uplink Gigabit Combo port supports either RJ45 or SFP connector; Only one of the connector RJ45/SFP can be linked at a time in Gigabit Ethernet. If both RJ45/SFP connectors are connected, the SFP connector will be linked at default.

The DP981CG also features 300meter Ethernet extension, and VLAN functions. There are 2 dip switches; EXT, and VLAN. The dip switch EXT is to set on the 300meter cable extension for all the 8-port Ethernet link at 10Mbps, and the other dip switch VLAN is to set on Virtual LAN from each of the 8xFE to 1xGE. After setting on the VLAN dip switch, the user need to power off/on once to activate the VLAN function.

Besides redundant power supply with overload current protection, it embeds with power din and 6-pin terminal block connectors to prevent from power failure with sufficient power of up to 5A for 50VDC~57VDC power input. It can perform dual power backup to ensure system power loss immunity.

This slim switch is designed with Wall-mountable and/or DIN rail mountable, making installation simple and easy. It meets with critical network environment with IP30 enclosure and test under extensive Industrial EMI and Safety standards. It can be used in extreme environments with an operating temperature range of -40°C to 75°C, and also passed stability testing such as free fall, shock and vibrations.

DP981CG


  • System Interface/Performance
    -RJ-45 port support Auto MDI/MDI-X Function
    -Store-and-Forward Non-Blocking Switching
    -Back-plane Switching Fabric: 4Gbps
    -Packet Buffer Memory: 1M bits
    -2K MAC address table
    -Jumbo Frame: Max. 1552 bytes
  • Supports Wide Operating Temperature (-40°C~75°C)
  • Supports 300meter Ethernet cable Link at 10Mbps
  • Support Virtual LAN (VLAN) from 8xFE to 1xGE
  • Metal Housing with DIN Rail and Wall Mount Design
  • DC 50V~57V Redundant Power (Power Din & Terminal Block) up to 5Amp for backup with each other
  • 8-port IEEE 802.3af/at PoE (max. 30W per port) function
  • Polarity reverse protection & removable terminal block
HARDWARE SPECIFICATIONS
IEEE Standards IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX /FX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-SX/LX
IEEE802.3x Flow Control and Back Pressure
IEEE 802.3af/at, PoE+
Switch Properties Back-plane (Switching Fabric): 4Gbps Packet
Throughput ability (Full-Duplex): 1,488,100pps @64bytes
Transfer Rate 14,881pps for Ethernet port
148,810pps for Fast Ethernet port
1,488,100pps for Gigabit Ethernet port
Connectors 10/100/1000BaseT: 8 x RJ-45 with auto MDI/MDIX and IEEE802.3af/at PoE+ function
1000Base-TX: RJ-45 with auto MDI/MDIX
1000Base-FX: Gigabit SFP
Jumbo Frame Support 1552 bytes
MAC Address 2K MAC addresses
Frame Processing Store-and-Forward
Protocol CSMA/CD
Ethernet Extension 300meter at 10Mbps
Virtual LAN From 8-Port Fast Ethernet to 1-Port Gigabit Ethernet
LEDS Power Indicators:
-Green for DC input PWR
LANx8 Indicators:
-Green/Flash for 10/100M Link/Activity
PoEx8 Indicators
-Amber for PoE ON
Gigabit and Act Indicators (COMBO):
-Green for 1000Mbps Link, and Activity
Power Supply 50~57VDC, Redundant power with polarity reverse protect function and removable terminal block
PWR (Power Din or 6-pin Terminal Block) Up to 5A for either Power Din or 6-pin Terminal Block
Consumption 3.76 Watts (Full load for System Ethernet)
PoE Polarity Pin 1/2 (+), Pin 3/6 (-)
Operating Humidity 5% to 95% Non-condensing
Operating Temperature -40°C~75°C / -40°F~167°F
Case Dimension Metal case, IP-30; 44mm(W)x105mm(D)x150mm(H)
Weight 620g
Storage Temperature -40°C~85°C / -40°F~185°F
EMI/EMS FCC Class A
EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),
EN61000-4-8,
EN61000-4-11
CE EN55022 Class A, CE EN55024
Stability Testing IEC60068-2-32 (Free fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)
Warranty 2 years
Order Information DP981CG
