Description

8-Port 10/100Mbps IEEE802.3 af/at PoE+ Switch Plus 4-Port Uplink Gigabit (RJ45x2 + SFPx2)

DP1284G is a hardened 8-port 10/100Mbps with IEEE802.3af/at PoE+ Switch, plus 4-port Gigabit uplink with RJ45x2 + SFPx2 connectors. All the PoE ports may support up to 30W per port basis.

The DP1284G also features 250meter Ethernet extension, and VLAN functions. The slide switch on the front panel is to select FE, EXT, and VLAN functions for Ethernet. The FE is to set for all the 8 port as standard 10/100Mbps Fast Ethernet. The EXT is to set for each of the 8 port to link at 10Mbps Ethernet to support up to 250meter cable extension for CAT5e cable. The VLAN is to set for each of the 8 ports as 8 individual isolated ports and to communicate only with the gigabit uplink ports.

With the terminal block connector, it supports PoE with DC power input of 48VDC~57VDC up to 120W/240W power budget. For each of the 8 ports with PoE function, it all supports over-current, over-voltage, and over-temperature protections

This slim switch is designed with Wall-mountable and/or DIN rail mountable, making installation simple and easy. It meets with critical network environment with IP30 enclosure and test under extensive Industrial EMI and Safety standards. It can be used in extreme environments with an operating temperature range of -40°C to 75°C.

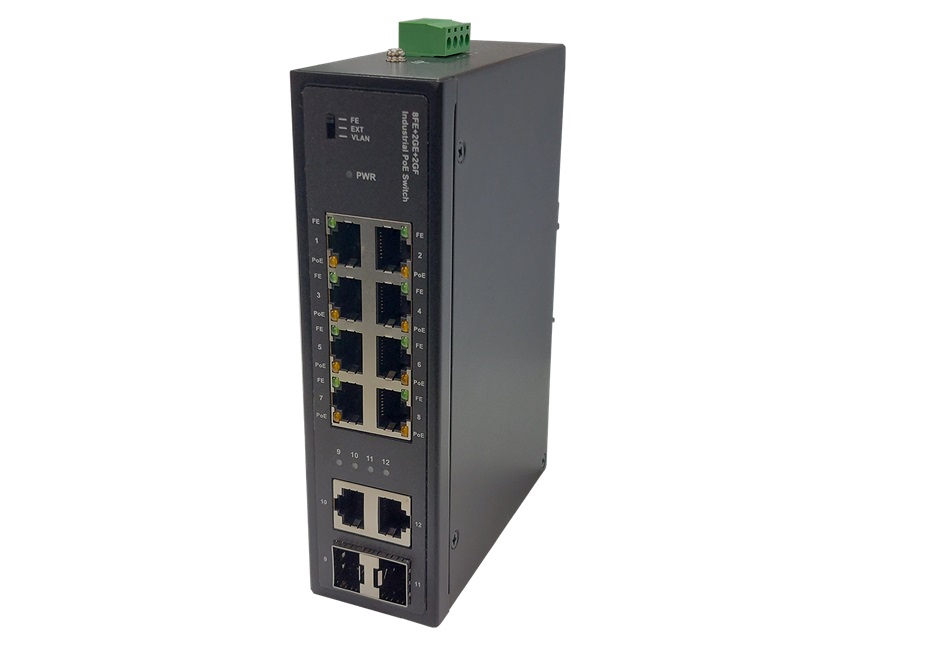

DP1284G


Key Features

  • System Interface/Performance
    -RJ-45 port support Auto MDI/MDI-X Function
    -Store-and-Forward Non-Blocking Switching
    -Back-plane Switching Fabric: 10Gbps
    -Packet Buffer Memory: 2M bits
    -4K MAC address table
    -Support 16K Jumbo packets
  • 8-port 10/100Mbps with IEEE 802.3af/at PoE function (max. 30W per port)
  • 4 Gigabit ports with RJ45x2 + SFPx2 connectors
  • Supports 250meter Ethernet extenesion at 10Mbps
  • Support Virtual LAN (VLAN) from 8xFE to 4xGE.
  • DC Power input 48VDC~57VDC for Terminal Block up to 120W/240W total PoE power budget
  • Metal Housing with DIN Rail and Wall Mount Design
  • Support PoE over-current, over-voltage, over-temperature protections
  • Supports Wide Operating Temperature (-40°C~75°C)
Specifications
IEEE Standards IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX /FX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-SX/LX
IEEE802.3x Flow Control and Back Pressure
IEEE 802.3af/at, PoE+
Switch Properties Back-plane (Switching Fabric): 10Gbps Packet Throughput ability (Full-Duplex): 1,488,100pps @64bytes
Transfer Rate 14,881pps for Ethernet port
148,810pps for Fast Ethernet port
1,488,100pps for Gigabit Ethernet port
Connectors 10/100BaseT: 8 x RJ-45 with auto MDI/MDIX and IEEE802.3af/at PoE+ function
1000Base-TX: RJ-45 with auto MDI/MDIX
1000Base-FX: Gigabit SFP
Jumbo Frame Support 16K Jumbo Packets
MAC Address 4K MAC addresses
Frame Processing Store-and-Forward
Protocol CSMA / CD
Slide Switch Mode FE: Normal Fast Ethernet ports x8
EXT: 250meter extension at 10Mbps for FE x8
VLAN: Virtual LAN from FEx8 to GEx2 COMBO ports
LEDs Power Indicator
-Green for DC input PWR
LANx8 Indicators
-Green/Flash for 10/100M Link/Activity
PoEx8 Indicators
-Amber for PoE ON
Gigabit and Act Indicators (GEx4):
-Green for 1000Mbps Link, and Activity,
-Amber for 10/100Mbps Link, and Activity.
Power Input 48VDC~57VDC, for 4-pin Terminal Block connector up to 120W/240W total PoE power budget
Consumption 3.76 Watts (Full load for System Ethernet)
PoE Polarity Pin 1/2 (+), Pin 3/6 (-)
Operating Humidity 5% to 95% Non-condensing
Operating Temperature -40°C~75°C / -40°F~167°F
Case Dimension Metal case, IP-30; 44mm(W) x 105mm(D) x 150mm(H)
Weight 620g
Storage Temperature -40°C~85°C / -40°F~185°F
EMI/EMS FCC Class A
EN61000-4-2 (ESD)
EN61000-4-3 (RS)
EN61000-4-4 (EFT)
EN61000-4-5 (Surge)
EN61000-4-6 (CS)
EN61000-4-8
EN61000-4-11
CE EN55022 Class A
CE EN55024
Stability Testing IEC60068-2-32 (Free fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)
Warranty 2 year
Order Information DP1284G
