Industrial

Description

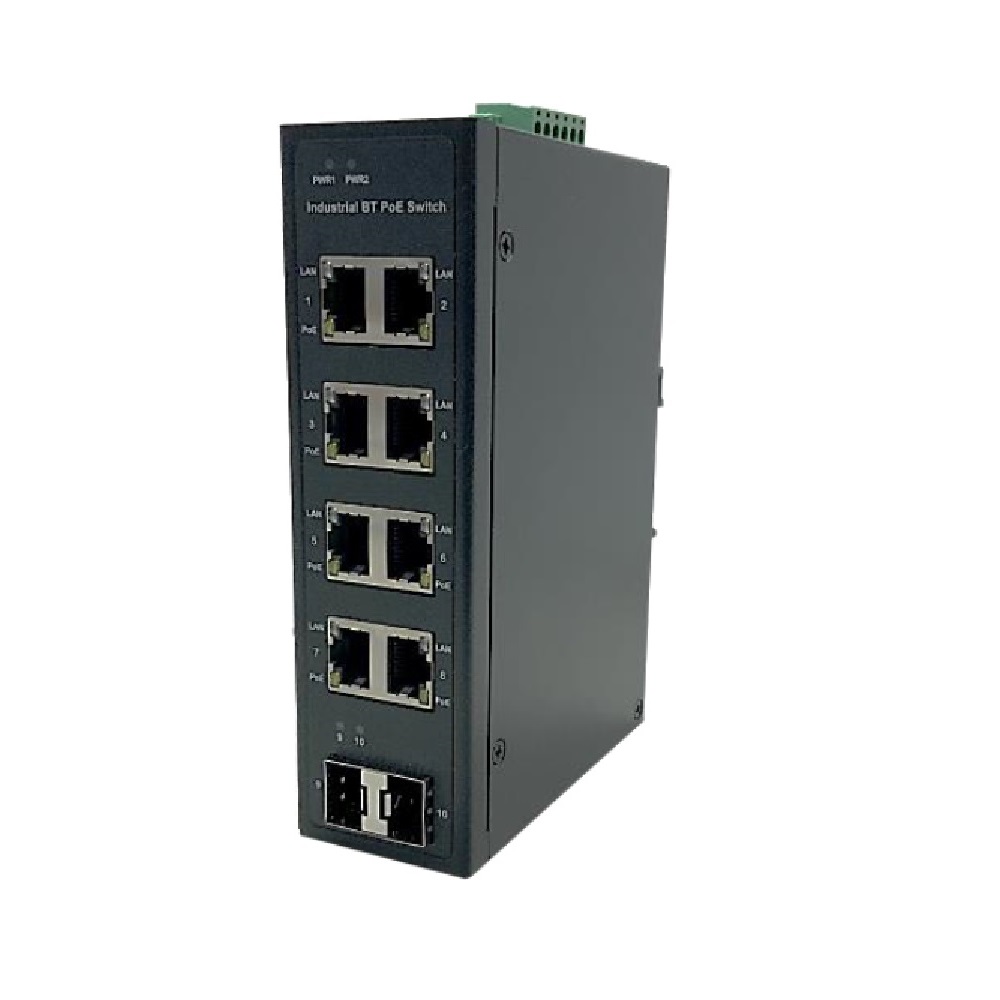

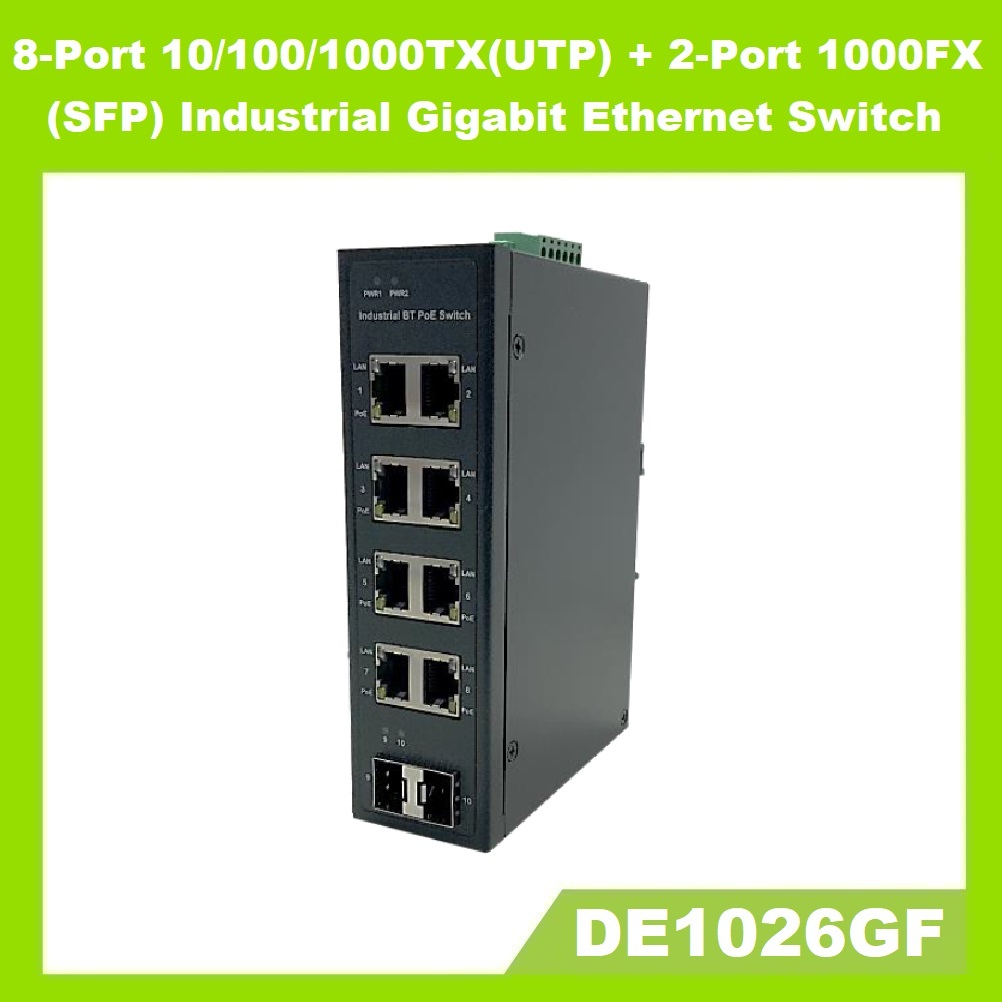

8-Port 10/100/1000TX(UTP) + 2-Port 1000FX (SFP)
Industrial Gigabit Ethernet Switch

DE1026GF is an 8-port 10/100/1000TX and 2-port 1000M SFP Industrial Gigabit Etherent Switch for plug-and-play installation. This slim switch is designed with Wall-mountable or DIN rail mountable, making installation more easy.

Besides redundant power supply with overload current protection, it embeds with power din and 6-pin terminal block to prevent power failure event and sufficient power of up to 10A. It can perform dual power backup to ensure system power loss immunity.

The DE1026GF is designed to meet with critical network environment with IP 30 enclosure and test under extensive Industrial EMI and Safety standards. It also passed stability testing such as free fall, shock and vibration.

The DE1026GF can be used in extreme environments with an operating temperature range of -40°C to 75°C.

DE1026GF


    Key Features

  • System Interface/Performance
    -RJ-45 port support Auto MDI/MDI-X Function
    -Store-and-Forward Switching Architecture
    -Back-plane (Switching Fabric): 20Gbps
    -8K MAC address table
  • Supports Wide Operating Temperature (-40°C~75°C)
  • IP-30 Metal Housing with DIN Rail and Wall Mount Design
  • 12VDC~48VDC Redundant Power (Power Din & Terminal Block) up to 10 Amp for backup with each other
  • Polarity reverse protection & removable terminal block
Specifications
IEEE Standards IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX /FX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-SX/LX
IEEE802.3x Flow Control and Back Pressure
IEEE 802.3bt/at/af, PoE++
Switch Properties Back-plane (Switching Fabric): 20Gbps Packet throughput ability (Full-Duplex): 1,488,100pps @64bytes
Transfer Rate 14,881pps for Ethernet port
148,810pps for Fast Ethernet port
1,488,100pps for Gigabit Ethernet port
Connectors 10/100/1000TX: 8 x RJ-45 with auto MDI/MDI-X function
1000M fiber: 2 x 1000M SFP slot for Single-mode or Multi-mode type fiber cable
MAC Address 8K MAC addresses
Processing Store-and-Forward
Network Cable 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5, 6 cable EIA/TIA-568 100-ohm (100m)
100/1000Base-TX: 2-pair UTP/STP Cat. 5, 6 cable EIA/TIA-568 100-ohm (100m)
Optical Cable Multi-mode: 50/125um~62.5/125um
Single-mode: 9/125um
Distance: 2km (Multi-mode)/30km (Single-mode)
Wavelength: 1310nm (Multi-mode/Single-mode)
Protocol CSMA/CD
MDI / MDIX Auto MDI / MDIX
Data Link Speed Auto Negotiation
LEDs Power Indicator : Green LED x 2 for PWR 1 and PWR 2
LINK / ACT : Green for 1000M, or Amber for 10/100Mbps
Power Supply 12VDC~48VDC, Redundant power with polarity reverse protect function and removable terminal block PWR 1 (Power Din), PWR 2 (6-pin Terminal Block) up to 10 Amp
Case Dimension Metal case, IP-30; 44mm(W)x105mm(D)x150mm(H)
Weight 620g
Consumption 4.76 Watts (Full load Ethernet)
Operating Humidity 5% to 95% Non-condensing
Operating Temperature -40°C~75°C / -40°F~167°F
Storage Temperature -40°C~85°C / -40°F~185°F
EMI/EMS FCC Class A
EN61000-4-2 (ESD)
EN61000-4-3 (RS)
EN61000-4-4 (EFT)
EN61000-4-5 (Surge)
EN61000-4-6 (CS)
EN61000-4-8
EN61000-4-11
CE EN55022 Class A, CE EN55024
Stability Testing IEC60068-2-32 (Free fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)
Warranty 2 year
