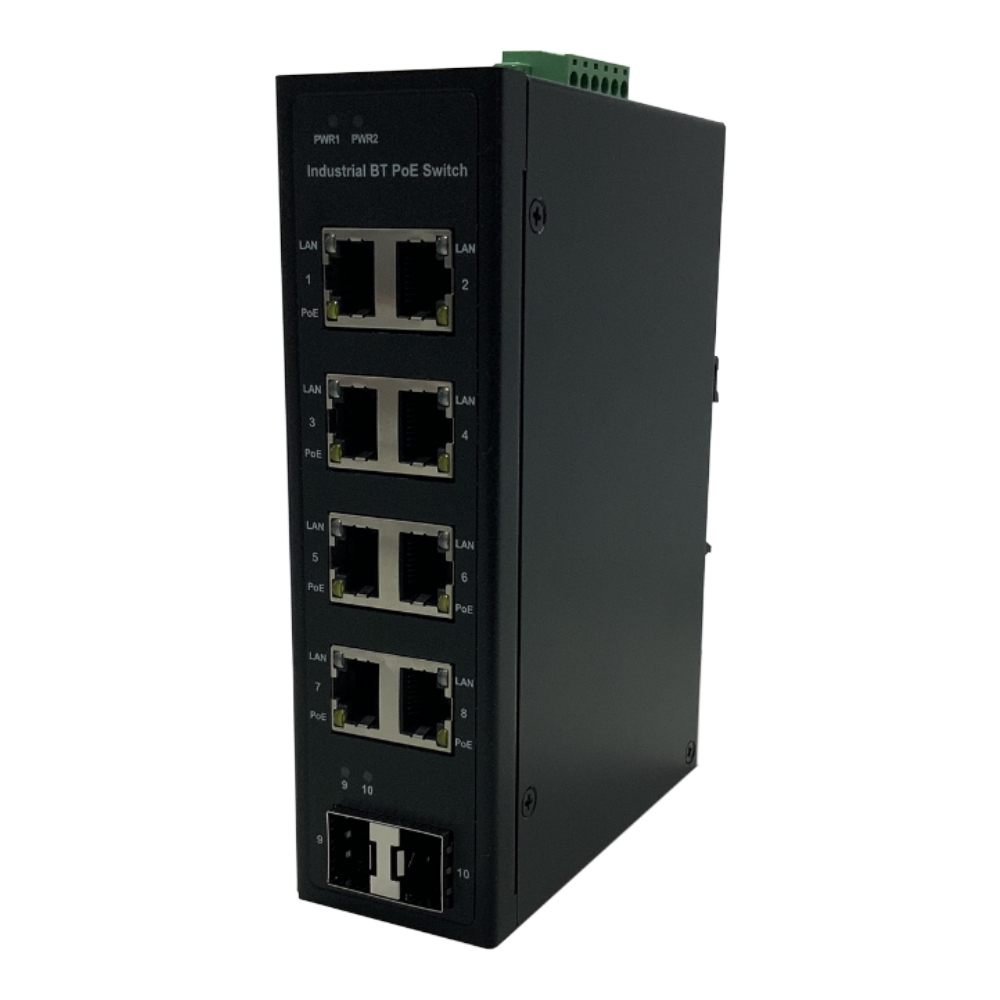

Industrial Grade DB1026GFB 10p Gigabit Switch with 802.3bt PoE

Yoda Harden-Graded Industrial Unmanaged Gigabit PoE Switches are designed with IP30, 6KV PoE Ethernet port surge protection, and operation temperature between -40 degree Cand 75 degree C during harsh weather conditions. Besides enabling connections of IEEE 802.3bt/at/af PoE PDs, DB1026GFB series is specially designed for latest PoE bt(>75W)/Ultra PoE(>25.5W) PDs such as IR PTZ cameras, multi-sensor cameras, and long range PoE applications The DB1026GFB series provide multi-port Gigabit PoE (10M/100M/1000M) delivering data and power to PoE PDs over a single network cable as well as additional SFP transceiver slots for flexible uplink. The DB1026GFB series has three sub-models classified as easy-to-install power source equipment (PSE) and provide power up to 30W/60W/95W per port.

DB1026GFB


  • 60W/90W IEEE802.3bt compliant, or 95W PoH compliant
  • PoE 60W/90W/95W x 1p + 30W x 6p, or
  • PoE 60W/90W/95W x 2p + 30W x 4p, or
  • PoE 60W/90W/95W x 3p + 30W x 2p, or
  • PoE 60W/90W/95W x 4p
  • 6KV surge protection on each PoE port (12KV option)
  • Operating temperature between -40°C ~ 75°C
  • Supporting 10/100/1000Mbps data rates
  • IP30 rating with DIN-Rail mounting and wall mounting
  • Dual Power inputs of Power DIN & Terminal Block
  • IEEE3az Energy Efficient Ethernet for green power
  • 2 x SFP transceiver ports for uplink/downlink
  • Grounding pin supported
Network Specifications
Total Gigabit Ports 10
Gigabit PoE Ports (10M/100M/1G) DB1026GFB-1/2: 1/2 x 60W/90W PoE BT or 95W PoH + 6/4 x 30W PoE AT/AF
DB1026GFB-3: 3 x 60W/90W PoE BT or 95W PoH + 2 x 30W PoE AT/AF
DB1026GFB-4: 4 x 60W/90W PoE BT or 95W PoH
SFP Slots (100M/1G) 2
Gigabit Ports (RJ45) 8
Forwarding Capacity 29.76Mbps
Mac Table 8k
Jumbo Frames 9,216 Bytes
Switching Capacity 20Gbps
Power Specifications
Power 1 : Input Voltage (Power DIN) 52VDC ~ 57VDC
Power 2 : Input Voltage(Input VDC) 52VDC ~ 57VDC
Output Voltage Range /per PoE Port 52~56 VDC
PoE IEEE 802.3bt (Max. 90W) output
PoE PoH (Max. 95W) output
PoE IEEE802.3at (Max. 30W) output
PoE Power Budget 380W
Surge Protection /each PoE Port 6KV (12KV option)
Mechanical Specifications
Dimensions (WxHxD) 150x105x44 mm
Weight 0.61KG
Connectors RJ45 x 8, SFP x 2, Terminal Block x1, Power DIN x1
Environmental Specifications
Operating Temperature -40 degree C~ 75 degree C (-40 degree F~ 167 degree F )
Storage Temperature -40 degree C~ 85 degree C (-40 degree F~ 185 degree F)
Operating Humidity 5% ~ 95% non-condensing
Certifications
EMC CE, FCC, VCCI
Safety EN 62368-1
Surge EN61000-4-5
