Description
Industrial 4-Port Gigabit PoE Switch + 1 Gigabit RJ45 Uplink Port (AC Power Input)

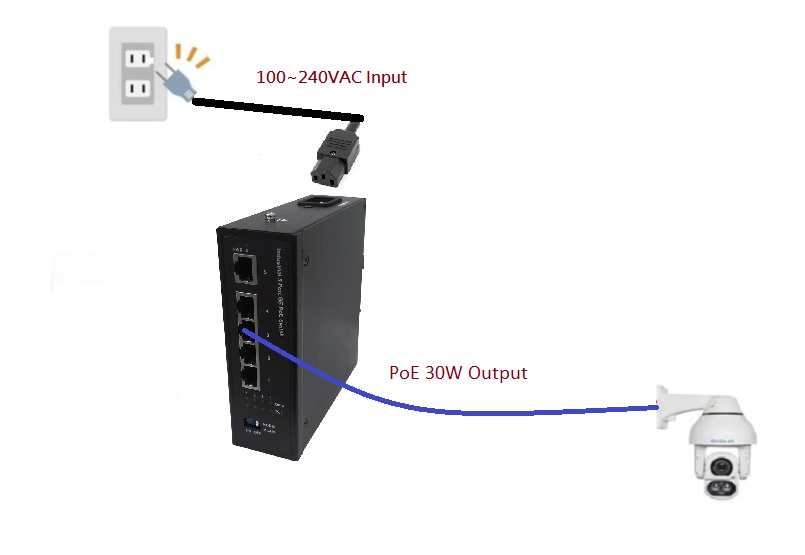

DA541G is a hardened 5-Port Gigabit Power Over Ethernet (PoE) Switch that offers a cost-effective and quick solution for upgrading network system to IEEE 802.3af/at Power over Ethernet system with AC power input of 100VAC~240VAC.
DA541G features IEEE 802.3af/at PoE standards that delivers up to 30-watt power output per port with AC power input of 100VAC~240VAC. Meanwhile, it provides triple protections of over-current, over-voltage, and over-temperature on the PoE ports.
DA541G also support VLAN functions of port isolation and connect to uplink port only. This is designed specifically to satisfy the growing demand of high-power networking application such as video surveillance, wireless Access Point, and 5G/LTE Router which are located outdoor in harsh environments.

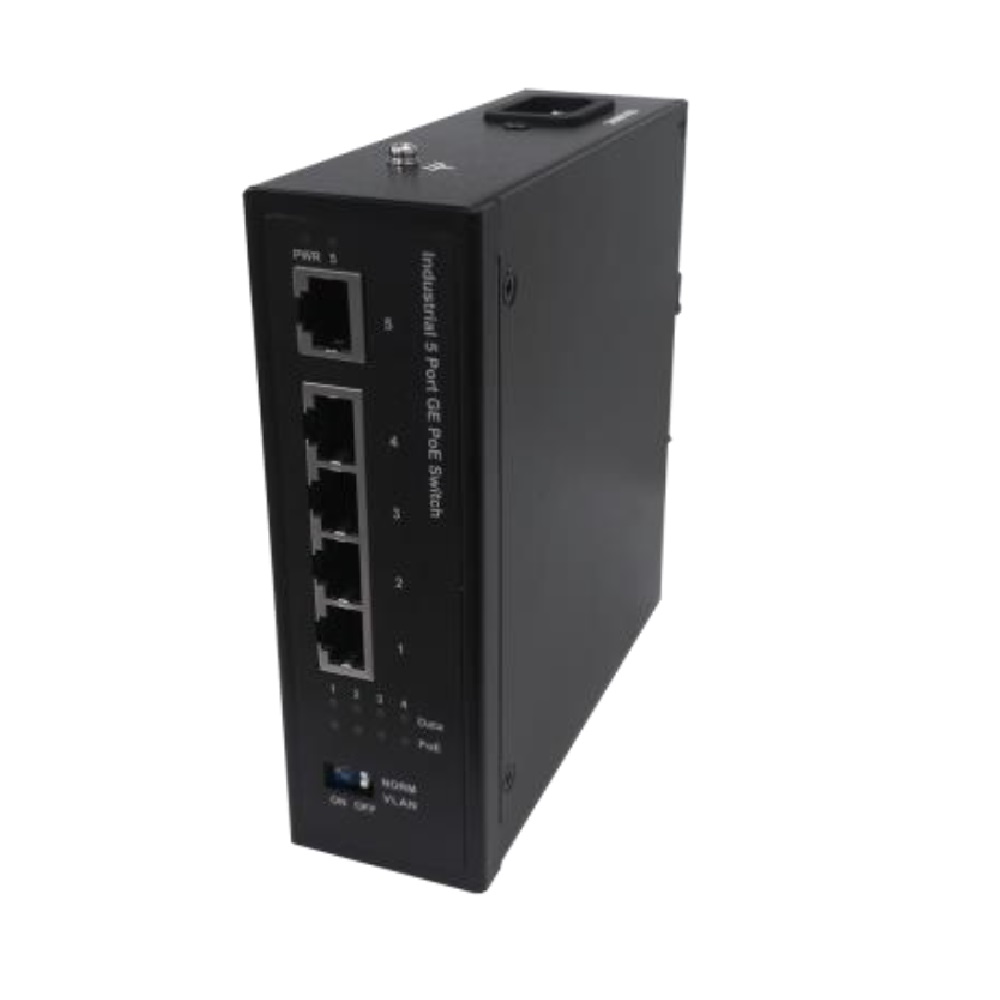

DA541G
Key Features
- Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u, 100BASE-TX, IEEE802.3ab, 1000BASE-T
- Compliant with IEEE802.3af/at Standards
- Support AC power input of 100VAC ~ 240VAC
- Supports IEEE802.3af/at PoE output power up to 30 watts per port basis
- Supports VLAN function and link to uplink port only
- AC Power Surge Protection: 2KV
- ESD protection: 15KV air / 8KV contact discharge
- Auto-detection and protection of non-standard PoE devices
- Over Current Protection / Over Temperature Protection / Over Voltage Protection
- Metal housing with DIN Rail and desktop / rackmount design
| Specifications | |
|---|---|
| Model | DA541G |
| Ethernet Standards | IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-T |
| Transfer Data Rate | 10/100/1000Mbps |
| Power Input | IEC320 3-Pin AC Socket
100VAC~240VAC, 50Hz~60Hz |
| DATA IN Port | 1 x 10/100/1000BASE-T RJ45 |
| DATA+PoE OUT Port | 4 x 10/100/1000BASE-T RJ45 |
| PoE Output Standards | IEEE802.3af/at for up to 30W per port basis |
| RJ45 PoE Pin Polarity | 1/2(+), 3/6(-); |
| PoE Compatibility | Auto-Detection / Compatible with Legacy PoE devices
with Protection of non-standard PoE devices |
| PoE Protections | Over Current Protection,
Over Voltage Protection Over Temperature Protection |
| LEDs | Power indicator
Data: for port 1 ~ port 5 Green On for data link/act at1000Mbps, Amber On for data link/act at 10/100Mbps PoE: for port 1 ~ port 4 Green On for PoE power on. |
| AC Surge Protection | 2KV |
| ESD Protection | 15KV air / 8KV contact discharge |
| Operating Temperature | -40°C ~ +70°C |
| Storage Temperature | 40°C ~ +75°C |
| Relative Humidity | 20% ~ 90% Non-condensing |
| Certifications | EN61000-4-2 /-3 /-4 /-6 /-8 /-11 /-4-5
IEC/EN62368 |
| Dimensions (W x H xD) | 44mm * 130mm * 140mm |
| Metal Housing | With DIN Rail and Desktop / Rack Mount design |
| Weight | 0.71kg |
