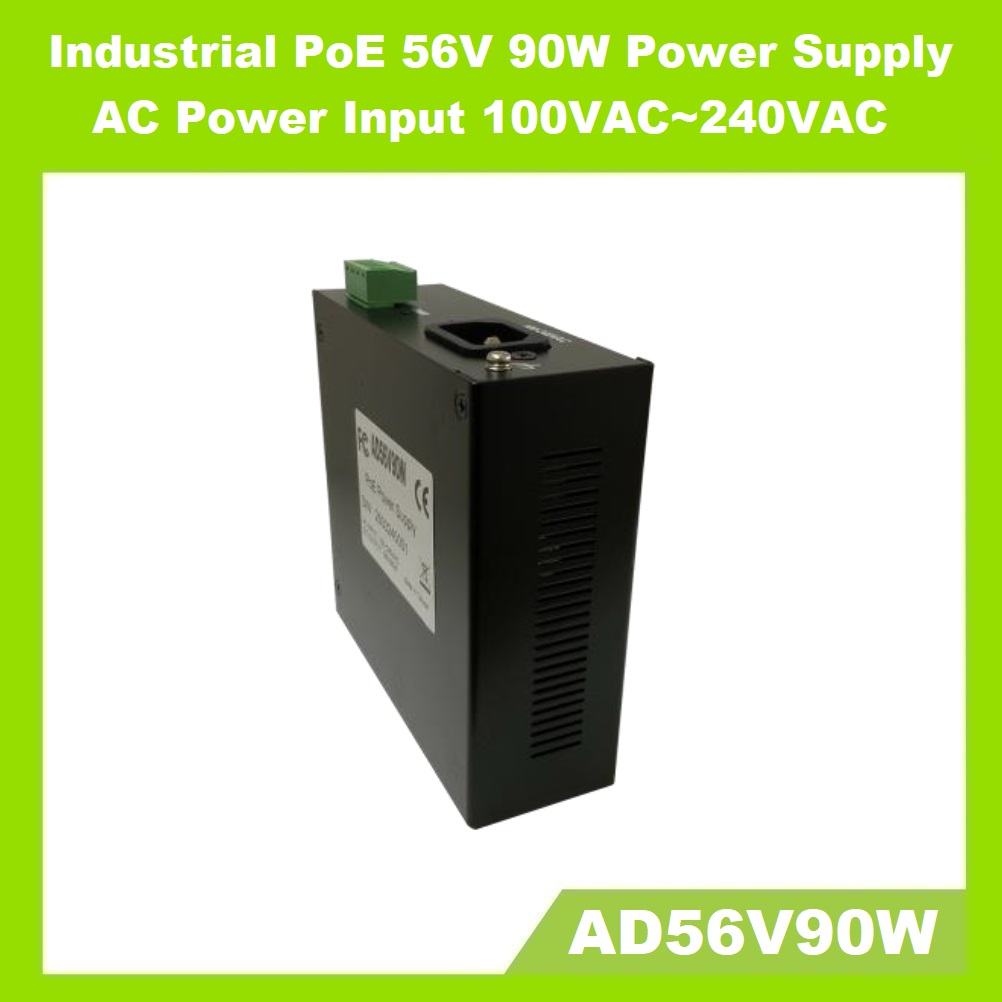

Industrial PoE 56V 90W Power Supply
AC Power Input 100VAC~240VAC

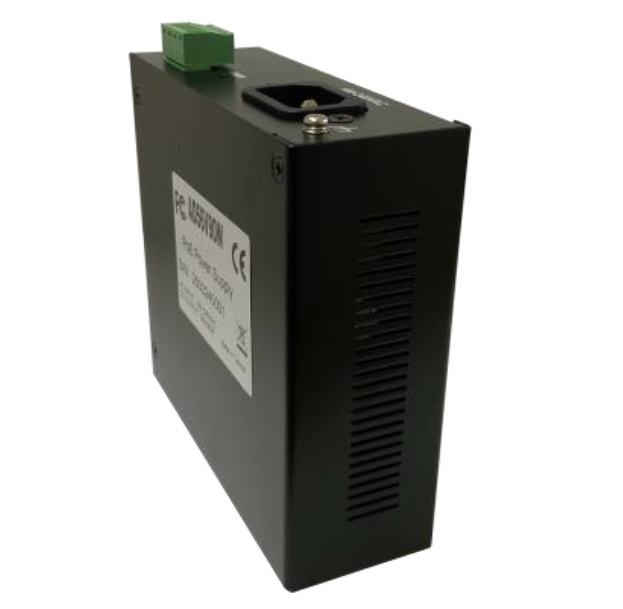

AD56V90W is one of the AD power supply series designed specifically for the PoE applications. It is a hardened PoE power supply providing 56VDC for PoE applications with output power output of 90W, with options of 35W, 65W, and 120W. With AC power input ranging from 100VAC~240VAC, this slim metal housing is designed with DIN Raill, and wall mount type, making installation simple and easy.

The AD56V90W, housing with physical dimension of 44mm x 115mm x 120mm (WxHxD), supports ESD 8KV for air , and 4KV for contact, and can be used in extreme environments with an operating temperature range of -40°C to 70°C. The output volatge can be optional with 24VDC/60W, 24VDC/90W, or 12VDC/36W, 12VDC/60W.

AD56V90W


  • Support for IEEE 802.3af/at PoE standards
  • Supports input power of 100VAC ~ 240VAC
  • Internal AC-to-DC Power supply with PoE 90W power output
  • Operating Temperature: -40°C ~ +70°C
  • Fanless Design
  • 2KV surge protection (4KV optional)
SPECIFICATIONS
PoE hardened AC to DC Power Supply
Output Power budgets 56V: 35W, 65W, 90W, 120W
24V: 65W, 90W
12V: 36W, 60W
Power Input 100VAC~240VAC
Power On LED indicator
Safety for PoE LVD EN62368-1
ESD EN61000-4-2
Level ± 2,4,8KV Air Discharge
Level ± 2,4KV Contact Discharge
Surge Protection EN61000-4-5
Level ± 1KV / Line-Neutral
Level ± 2KV / Line-Ground
Operating Temperature / Humidity -40°C ~ +70°C, 20~90% RH non-condensing
Storage Temperature / Humidity -40°C ~ +80°C, 10~95% RH non-condensing
Physical Deimension (WxHxD) 44mmx115mmx120mm
Metal Housing with DIN Rail, and Rack Mountable design
