PoE USB

Description

3 Features in one box

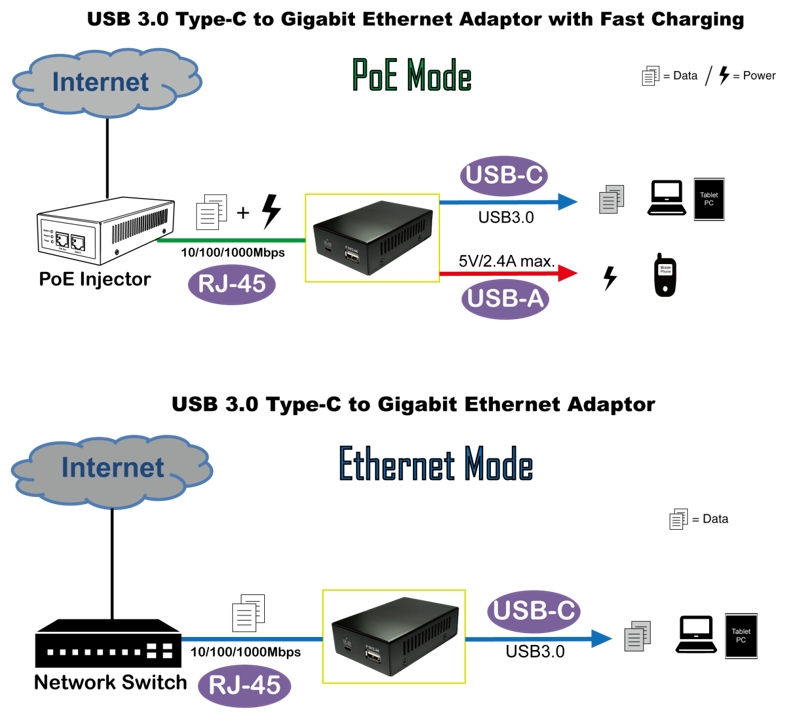

The PoE-USB-Combo is an adaptor for the PoE Gigabit Ethernet to USB Type-C (USB-C) connection, with additional USB type-A port for fast charging features. It allows the Notebook users with USB-C connector to have Internet access thru the PoE Gigabit Ethernet Switch, while providing fast charging port to charge mobile devices with PoE input power. With the features of plug and play, it is an ideal design solution for the mobile user in the office to access Internet through the PoE Ethernet interfaces, while charging up additional mobile device, such as mobile cell phones.

For the Ethernet interfaces, the PoE-USB-Combo, as an IEEE802.3at/bt PoE PD device, is equipped with an RJ45 port for the 10/100/1000Mbps Gigabit Ethernet connection. It takes the PoE power up to 25Watt in a distance of 100meter away from the PoE Ethernet Switch, and convert into the power supplies for the COMBO system and the charger. There are 2 LED indicators; one for PoE power on, and the other for 10/100Mbps, or 1000Mbps data link/act indications.

For the USB-C interfaces, the PoE-USB-Combo provides a USB type-C connector with compatibility of USB3.0, 2.0, and 1.1 for super speed data connection. One LED indicator on the front panel is for the USB-C data connection and activity.

The fast charging capacity is compatible with many charging protocol including Battery Charge (BC1.2) 5V/1.2A, Apple 5V/2.4A, Samsung Galaxy 5V/2.1A.

PoE-USB-Combo


  • 1 x RJ-45 port with IEEE802.3at/bt PoE PD for 10/100/1000 Mbps Gigabit Ethernet Connection
  • 1 x USB2.0 Type-A fast charging port with Battery Charge (BC1.2) 5V/1.5A, Apple 5V/2.4A, and Samsung Galaxy 5V/2.1A
  • 1 x USB-C port supporting USB3.0, 2.0, and 1.1
  • USB-C to Gigabit Ethernet Adaptor with fast charging
  • Compliant with IEEE802.3, IEEE802.3X, 802.3u, 802.3ab, 802.3az (EEE)
  • Ethernet Jumbo frame: 9K bytes
  • Auto MDI/MDIX
  • Supporting IPv4/IPv6, TCP, UDP
  • LEDs Indicators: Ethernet Link/Act 10/100 or 1000 Mbps, PoE, USB-C Link/Act
  • Power Input: PoE as well as USB-C port
  • USB-C Back-Flow Protection
  • Plug & Play
  • Compact Cigarette Size (Physical Dimension: 93 x 60 x 28mm)
Technical Specifications
Ethernet Ports RJ45 with IEEE802.3af/at/bt PoE PD
Ethernet Data Rates 10/100/1000 Mbps
Ethernet Interface Supporting IEEE802.3, IEEE802.3X, 802.3u, 802.3ab, 802.3az (EEE), with auto MDI/MDIX
Pin Assignment and Polarity Compatible to standard IEEE802.3af/at/bt PoE Switch
Ethernet Jumbo Frame 9K bytes
Ethernet Packets Supporting IPv4/v6, TCP, UDP
USB Data Port USB3.0 type-C connector supporting with USB3.0, 2.0, and 1.1
USB Fast Charging Port USB2.0 type-A connector supporting Battery Charging (BC1.2) 5V/1.5A, Apple 5V/2.4A, and Samsung Galaxy 5V/2.1A
Input Power Source PoE with IEEE802.3af/at/bt as well as USB-C
Dimensions / Weight 93 x 60 x 28 mm / 310g (cigarette size)
Ethernet LED Indicators Ethernet Data Link/Act for 10/100 Mbps (Amber)
Ethernet Data Link/Act for 1000 Mbps (Green)
PoE on (Amber)
USB-C LED IndicatorUSB-C Link/Act(Green)
Plug & PlayWith Notebooks and Mobile cell phones
USB-C Back Flow ProtectionYes
Operating Ambient Temperature 0 to 40 degree Celsius
