Media Converter

Description

Delivering Power/Fiber over 3,400 ft (1 km) with PoE+ (30 Watt) Output

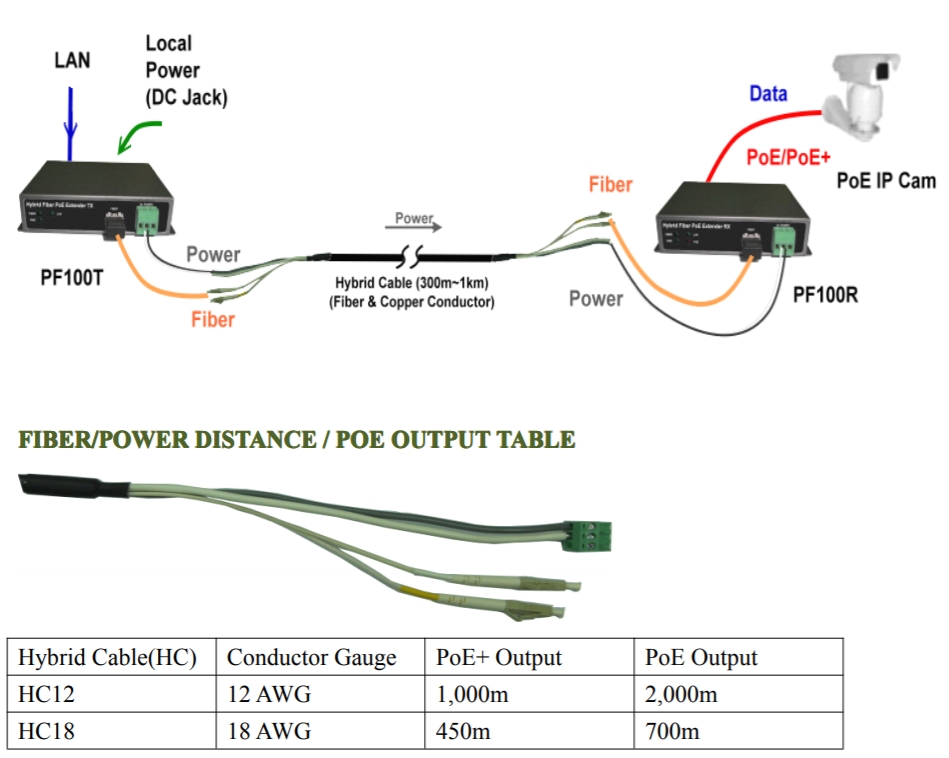

In use of hybrid cable (fiber and copper conductor), PF100 can deliver integrated power and data over a distance of 3,400 ft ( 1km) with PoE and PoE+ power output to perform Power over Ethernet cable of 100 meters for IP surveillance application.

Centralized management of IP Surveillance application
A 19" cabinet power shelf can accommodate up to 8 PF100T which enables IT manager to centrally manage the remote IP/power requirement.

Outdoor enclosure (PF100R-ODU) and harden working environment supported
Optionally PF100R is housed into IP-66 rated outdoor housing for harden working environment of -40℃ to 70℃ .

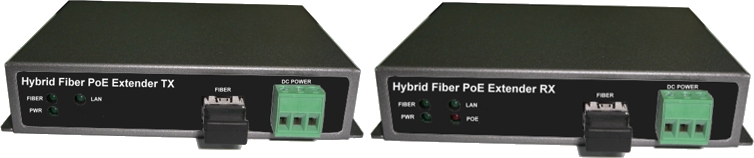

PF100


FEATURES
  • Comply with IEEE 802.3x 10Base-T, 100Base-TX & 100Base-FX standard
  • One Fiber Optic LC connector and one RJ-45 connector
  • 100 Mbps Data Transfer Rate (Full Duplex)
  • Transmission distances up to 2km, Multimode fiber
  • Supports auto-negotiation with 10M/100M, full/half duplex capability
  • Support auto MDI-MDIX function in Twist Pairs side
  • LED indicators allow for visual verification of power, fiber and LAN activity
  • Compact metal casing with rack mount facility or IP-66 rating outdoor
  • Harden working environment supported
  • Supports IEEE 802.3at/af PoE+ to extend fiber/power distances up to 1,000m
Technical Specification
Standard IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, 100Bast-FX
PoE IEEE 802.3at/af
Interface 10/100Base-T RJ-45 Port x 1/4 & 100Base-FX Port (LC) x 1
Switching Method Store and forward
Data Transfer Rate 100 Mbps-Full duplex
MAC Table 1K
Memory Buffer 128Kb RAM
Dimensions(W x D x H) 133 x 90 x 28mm (D x W x H)
Weight 0.5kg
Temperature 0~50℃ (Operating), -40℃~70℃ (optional PF100R-ODU), 0~70℃(Storage)
Humidity 10~90% non-condensing
Power Ext. Power Supply, DC 56V, 1.2A
Power comsumption: 65 W
