Modules PoE

Description

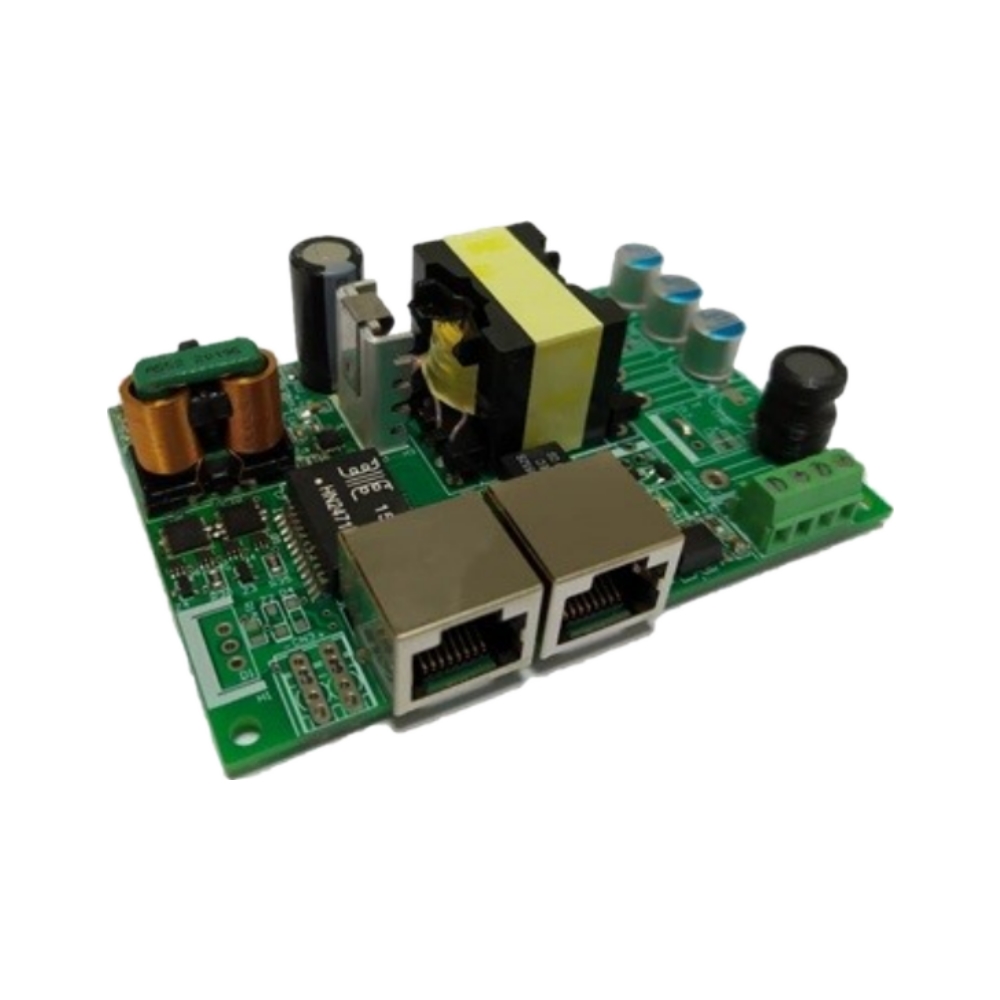

Complies with 802.3bt , 66W output PoE Splitter Module

BS6612G


  • Peak 66W output PoE PD Splitter, Complies with IEEE 802.3bt standard
  • Compatible with 4 pairs 802.3at PoE+ PSE
  • Design for meets 10/100/1000 BASE-T
  • Use an 802.3bt Type-4 PSE ,the Splitter support 66W output(@ CN1 VPoE IN=56Vdc)
  • LED indicator for PSE input type and DC output status
  • Over current/Over temperature Protection
  • Supports high surge/ESD protection
  • High Efficiency, Easy installation
  • 1 year warranty(Limited)
