Description

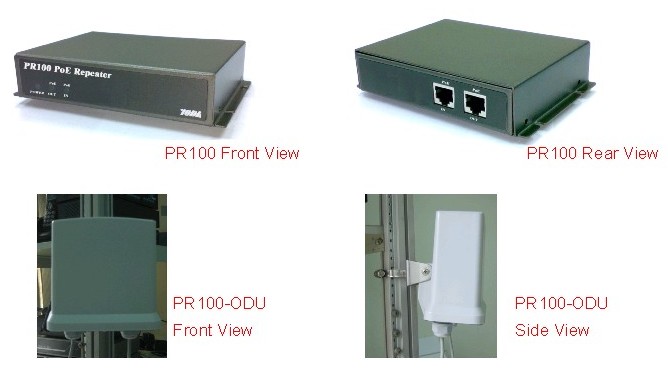

PR100 is an Ethernet and Power-over-Ethernet Repeater providing a 100/100Mbps Ethernet transmission for 100m distance and extend Ethernet connectivity another 100m with power over Ethernet capability. It forwards both Ethernet and PoE for another 330ft (100m) using an innovative power- processing scheme and multiple units can be deployed in series for even longer distances, with no degradation in network speed or latency. PR100 itself is powered by an Ethernet PoE switch (or PoE injector) and so requires no separate power connection in the middle of the cable, making it extremely easy to connect and power IP cameras two or three times further than previously possible without going to fiber or installing midspan power sources.

In the simplest application, a PR100 allows an IP camera to be located 200-300 meters away from a POE switch. The switch delivers POE power over the first 100 meters of Cat5 cable to the PR100, and the PR100 restores the Ethernet signal and forwards remaining POE power to the camera. The PR100 requires no local power supply, and the PR100 presents no restriction to the camera network connection. Typically, the POE switch would be confined to a centrally located equipment room, and would connect to several IP cameras distributed about the site. With PR100, each camera may have its own dedicated connection to the switch, and power cable installation to remote switches or cameras is not required.
