Repeater PoE

Description

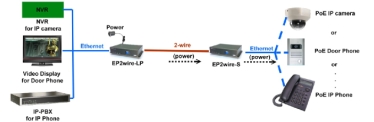

Local Powered PoE Repeater over 2-wire

EP2wire-LP performs to connect Ethernet with remote PoE capability at a distance up to 1,500 ft over 24AWG line when using an external power adaptor of 48VDC output.

EP2wire-LP works in pair with one master and one slave (client) units. In addition, it is compliant to Safety-Extra-Low-Voltage (SELV) standard.

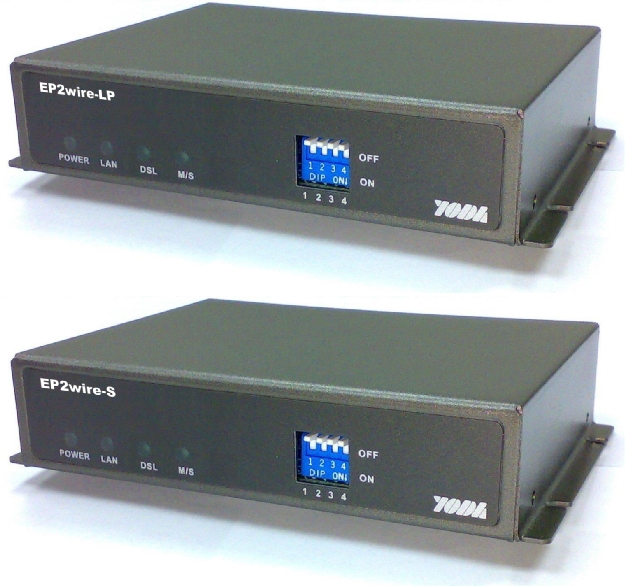

EP2wire-LP-Pair


EP2wire-LP Pair consist of Master and Slave units.
Master Type Input Power by Transmit Ether/PoE over
EP2wire-LP Compact Metal Box Local high power 2-wire

Slave (Client) Type Input Power by Transmit Ether/PoE over
EP2wire-S Compact Metal Box 2-wire Ethernet/PoE-PSE
*Metal box can be wall mounted Features:
  • Remote Line Power over 2-wire
  • Maximum 1,500 ft distance for 24AWG 2-wire line
  • Line rate up to 60 Mbps full duplex
  • Dip Switches for line speed settings with Slave following Master
  • Up to 7 or 20 watts via PoE, depending on power from Master
  • IEEE 802.3af PSE Compliant for Class 0-3.
  • Auto MDIX for 10/100 BaseT Ethernet LAN Ports
  • Low-Latency for Video/Voice/Data applications
Technical Specifications: LAN Interface:
  • IEEE 802.3af Compatible PSE for Slave
  • Auto-Detection for 10/100 BaseT and Half/Full duplex
  • Fully compatible with IEEE802.3/IEEE802.3u
  • Automatic MDIX Function
  • Connector: RJ45
Line Interface:
  • Line Rate: 60/60 ~ 10/10Mbps (full duplex)
  • Rate Selection: Dip Switches with Slave following Master
  • Safety Extra Low Voltage (SELV) Compliant (< 60V)
  • Connector: RJ11
Remote PSE:
  • IEEE 802.3af Compliant with output voltage within 44 - 57Volt
  • Power Auto Restart with Under Voltage Lockout (UVLO) Fault Detection
  • Maximum output power 15.4 or 30 Watts depending on power from master
LED Indicators:
  • POWER: Power is ON
  • LINE: 2-wire Line Connection Status
  • LAN: Data Activity of LAN Port
  • M/S: Master or Slave
Physical Dimension:
  • EP2wire-LP & EP2wire-S: 120 x 90 x 28 (mm)
Operating Environment:
  • Humidity: 5% to 95% non-condensing
  • Temperature: 0 ~ 50 degree C
Regulatory Compliance:
  • FCC Rules Part 15
  • CE
