PoE Repeater over Coaxial Wireline

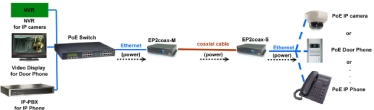

EP2coax connects Ethernet with remote PoE capability at a distance up to 3,000 ft with 5C2V coaxial cable when co-working with a 40Watt high power PoE injector.

EP2coax works in pair with one master and one slave (client) units. In addition, it is compliant to Safety-Extra-Low-Voltage (SELV) standard.

EP2coax-Pair

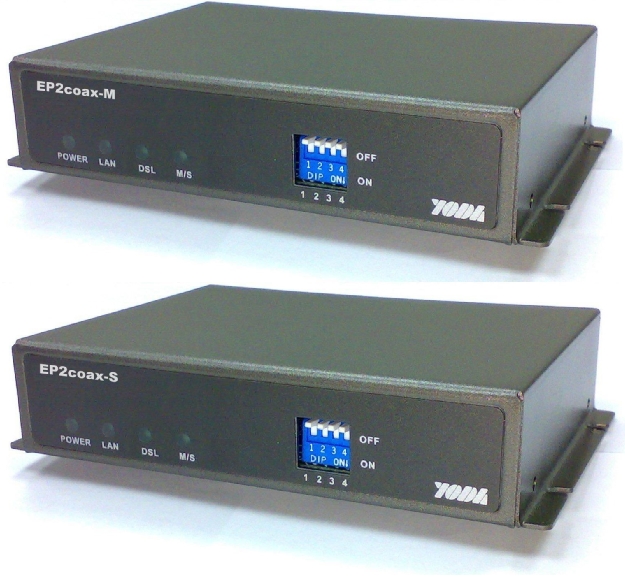

EP2coax pair consist of Master and Slave units.
Master Type Input Power by Transmit Ether/PoE over
EP2coax-M Compact Metal Box PoE via Cat. 5 Coaxial cable

Slave (Client) Type Input Power by Transmit Ether/PoE over
EP2coax-S Compact Metal Box Coaxial cable Ethernet/PoE-PSE
*Metal box can be wall mounted Features:
  • Remote Line Power over coaxial cables
  • Maximum 3,000 ft distance for 5C2V Coaxial cable
  • Line rate up to 60 Mbps full duplex
  • Dip Switches for line speed settings with Slave following Master
  • Up to 7 or 20 watts via PoE, depending on power from Master
  • IEEE 802.3af PSE Compliant for Class 0-3.
  • Auto MDIX for 10/100 BaseT Ethernet LAN Ports
  • Low-Latency for Video/Voice/Data applications
Technical Specifications: LAN Interface:
  • IEEE 802.3af Compatible PoE PD for Master, and PSE for Slave
  • Auto-Detection for 10/100 BaseT and Half/Full duplex
  • Fully compatible with IEEE802.3/IEEE802.3u
  • Automatic MDIX Function
  • Connector: RJ45
Line Interface:
  • Line Rate: 60/60 ~ 10/10Mbps (full duplex)
  • Rate Selection: Dip Switches with Slave following Master
  • Safety Extra Low Voltage (SELV) Compliant (< 60V)
  • Connector: BNC
Remote PSE:
  • IEEE 802.3af Compliant with output voltage within 44-57Volt
  • Power Auto Restart with Under Voltage Lockout (UVLO) Fault Detection
  • Maximum output power 15.4 or 30 Watts depending on power from master
LED Indicators:
  • POWER: Power is ON
  • LINE: Coaxial Wire
Connection Status
  • LAN: Data Activity of LAN Port
  • M/S: Master or Slave
Physical Dimension:
  • EP2coax master or slave: 120 x 90 x 28 (mm)
Operating Environment:
  • Humidity: 5% to 95% non-condensing
  • Temperature: 0 ~ 50 degree C
Regulatory Compliance:
  • FCC Rules Part 15
  • CE
