Description

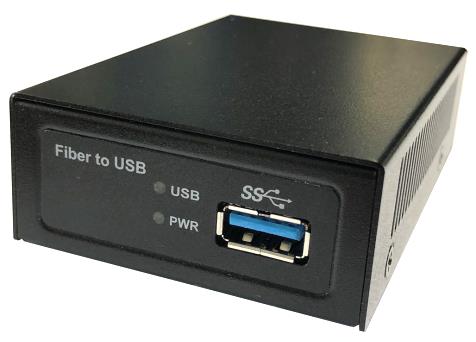

Fiber Optic to USB3.0
Gigabit Ethernet Media Converter

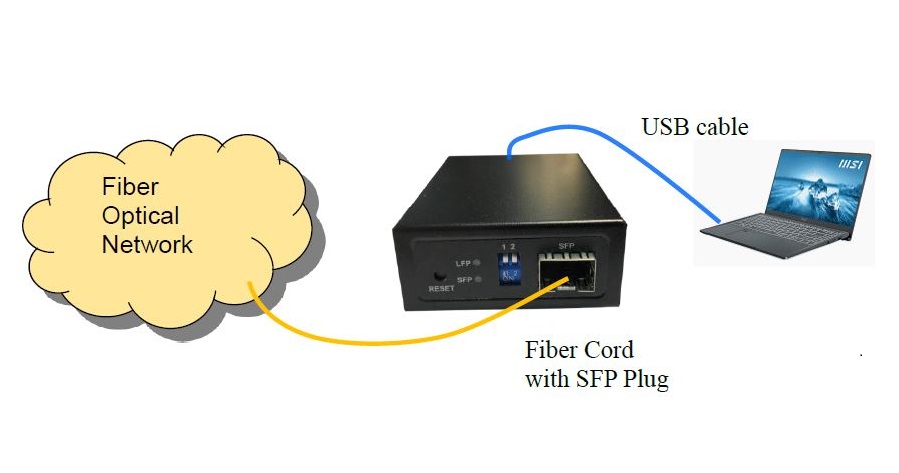

The UFO UF101G is a Gigabit Ethernet media converter which converts the Gigabit data link of the fiber optical SFP port to connect to the USB3.0 Type-A (USB3.0-A) port of the Notebook PC, with compatibility to USB3.0/USB2.0 5Gbps/500Mbps super speed specifications. The UFO design is powered by the USB 5V power source with maximum 2.5Watt power consumption including the SFP plug at the highest Gigabit Ethernet transmission for the Fiber Optical converter.
With plug and play features, the UFO embeds auto driver for Windows, Linux, and Mac OS, to provide for the on-site professionals to access the fiber network through the USB port of their Laptop without needs of an external AC/DC power adaptor.
UFO_UF101G
- Fiber Optical SFP to USB3.0 Type-A Gigabit Ethernet Media Converter
- 1x SFP port for 100/1000 Mbps SFP Plug
- 1x USB-A port supporting USB3.0, 2.0, and 1.1
- Power consumption: Max. 5V/0.5A (2.5Watt)
- Compliant with IEEE802.3, IEEE802.3X, 802.3u, 802.3ab
- Ethernet Jumbo frame: 9K bytes
- Supporting IPv4/IPv6, TCP, UDP
- Wake-on-LAN support
- Laptop OS Compatibility: Windows, Linux, and MacOS
- LED Indicators: SFP, LFP, USB, PWR
- 2 Dip Switches for settings of SFP speed and LFP function
- Reset Push Button for activation of SFP and LFP function
- Power Input: from USB
- Plug & Play
- Physical Dimension: 60mm x 89.2mm x 26mm (WxDxH)
| Technology Specifications | |
|---|---|
| SFP Port |
SFP with IEEE802.3u/ab Ethernet at 1000m/100Mbps |
| Ethernet Data Rates | 1000/100 Mbps |
| Ethernet Interface | Supporting IEEE802.3, IEEE802.3X, 802.3u, 802.3ab |
| Ethernet Jumbo Frame | 9K bytes |
| Ethernet Packets | Supporting IPv4/v6, TCP, UDP, Wake-on-LAN |
| USB Data Port | 9-pin USB-A connector supporting with USB3.0, 2.0, and 1.1 |
| Power Consumption | Max. 5V 0.5A |
| Laptop OS Compatible | Windows 7,8,10,11, MacOS 10.9-10.14,11,12, Linux 3.5 and up/td> |
| Input Power Source | USB |
| SFP LED Indicators | Link Fault Pass-thru (LFP) (Amber) Ethernet Data Link/Act (Green) |
| USB-A LED Indicators | USB-A Link/Act (Green) USB Power ON (Green) |
| DIP Switches x2 | For setting SFP speed and LFP function |
| Power Consumption | Max. 5V 0.5A |
| Reset Push Button | For activation of SFP speed and LFP function |
| Plug & Play | With Laptop Notebooks and PC supporting USB3.0/USB2.0 |
| Operating Ambient Temperature | 0 ~ 40 degrees C |
| Dimensions (WxDxH) | 60 x 89.2 x 26 mm |
