Injector Splitter Converter PoE
Description

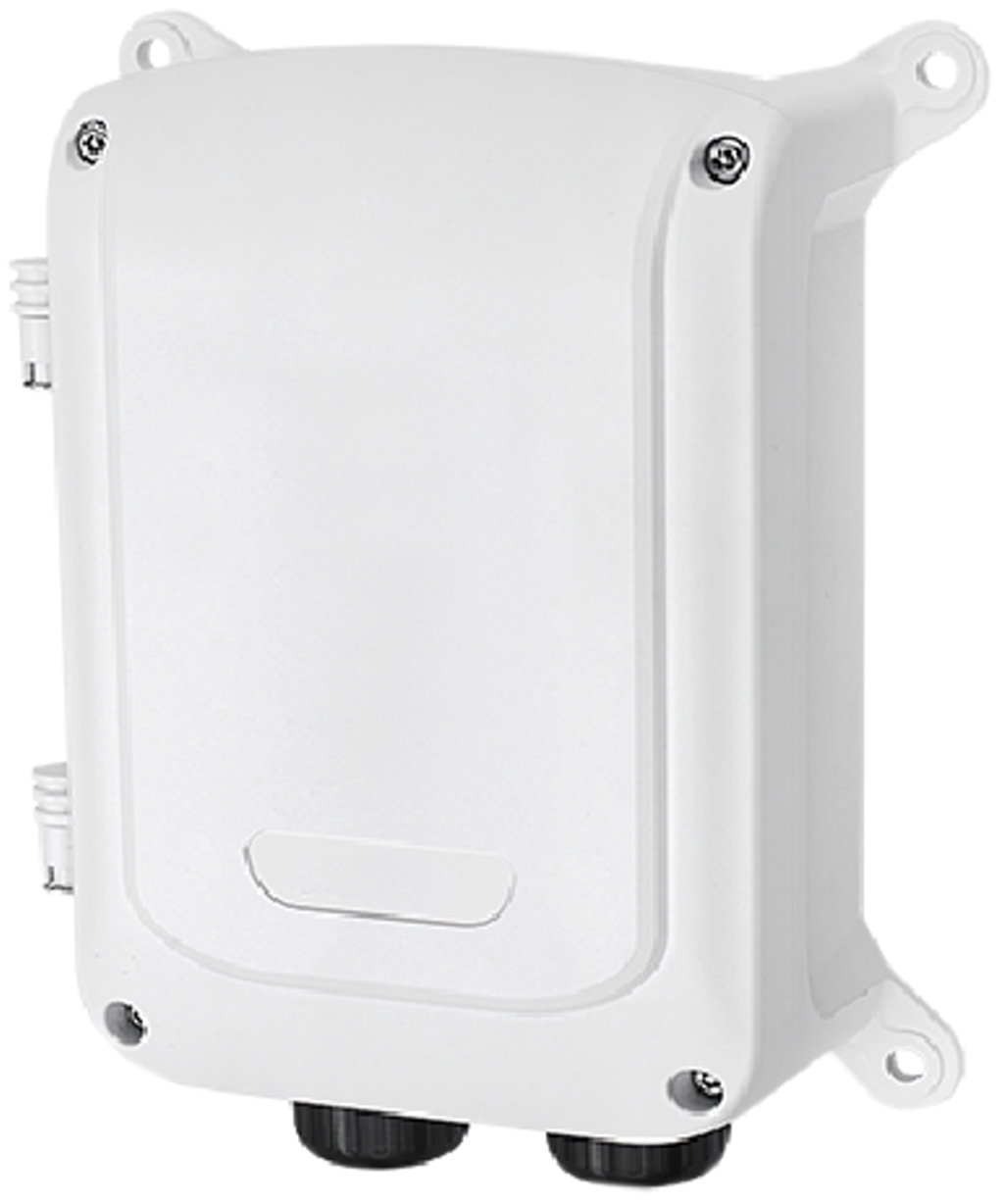

This 60Watts, ultra high power single port industrial POE Injector is equipped with our high efficiency ColdDesign technology to reduce the excessive heat problem to a minimum. It accepts 100~240VAC input voltage to provide 60Watts power to your end device. Within IP-67/IK10 outdoor enclosure and embedded with 10kV PoE surge protection, it is being rigorously tested for your Security, Transportation and Telco application.
DI100G-60W-ODU
- Provide 60W of PoE Power Feeding on 4-pairs
- Working temperature range: -40~60℃
- Remote power feeding up to 100m
- IEEE 802.3at PoE Standard compliant
- Automatic detection and protection of non–standard Ethernet terminals
- Supports 10/100/1000Base-T LAN environment
- Supports 10/100Base-T LAN environment
- Safe and reliable power to PoE cameras or WLAN access points
- Plug-and-Play installation
Mechanical Specifications
- Dimensions (WxHxD) 255.2 x 199.9 x 90 mm
- LED Indicators Power, PoE
- Weight 3 kg (6.61 lb)
| Environmental Specifications | |
|---|---|
| Weather Rating | IP67 |
| Vandal Proof | IK10 |
| Operating Temperature | -40℃ ~ 60℃ (-40℉ ~ 140℉) |
| -40℃ ~ 85℃ (-40℉ ~ 185℉) | |
| Operating Humidity | 10% ~ 90% non-condensing |
| Certificate | CE/FCC, EN60950-1 |
| Power Surge Protection | 10KV |
| PoE Surge Protection | 12KV |
