Description
IEEE802.3bt PoE to 24VDC Splitter
60W Isolated Power Output and Gigabit Data
The BS524G is a Gigabit Power over Ethernet (PoE) Splitter, which splits a Gigabit Ethernet IEEE802.3bt PoE cable into a separated Gigabit Ethernet and an isolated 24VDC with 60W power output. It allows users to run Gigabit speed for CAT5e cables over a 100m distance away from PoE switch while providing isolated 24VDC output and separated data to power up the non-PoE network devices.
With a DC-Jack connector for an isolated 24VDC power output, this BS524G also provides 2 LED indicators: BT and Vout. The BT LED indicates if the BS524G is powered by IEEE802.3bt 90W PoE Switch, and the Vout indicates if the 24VDC is ON. It saves cost when installing various network devices in varied locations without AC adaptor outlets.

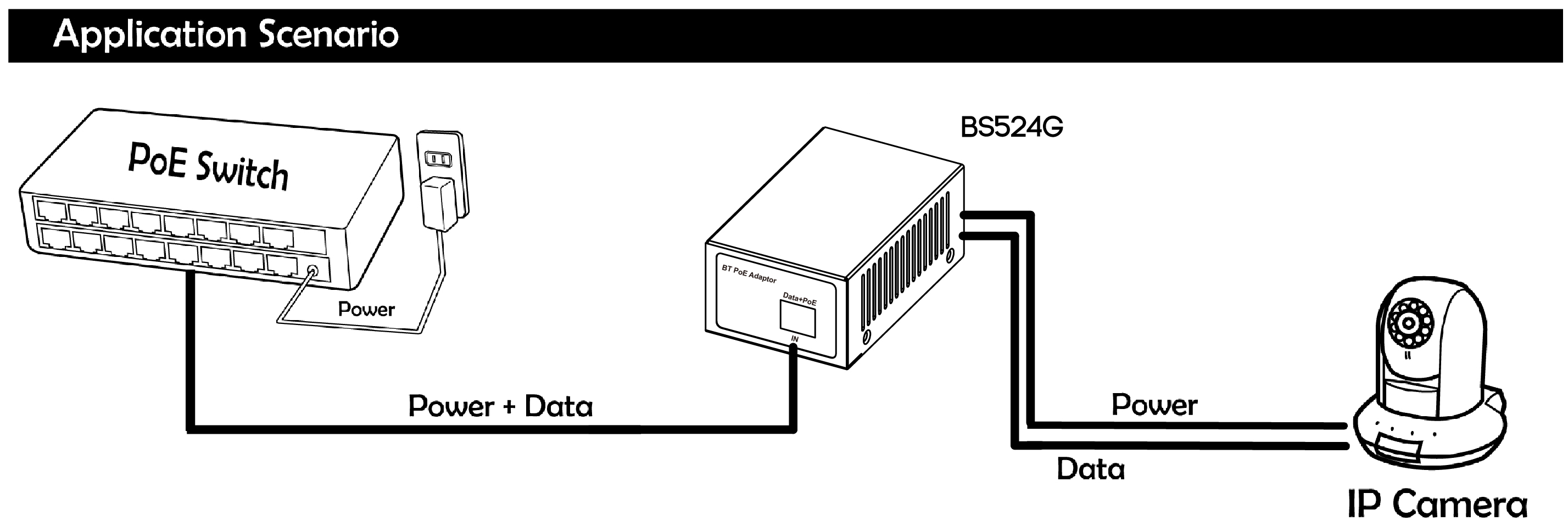

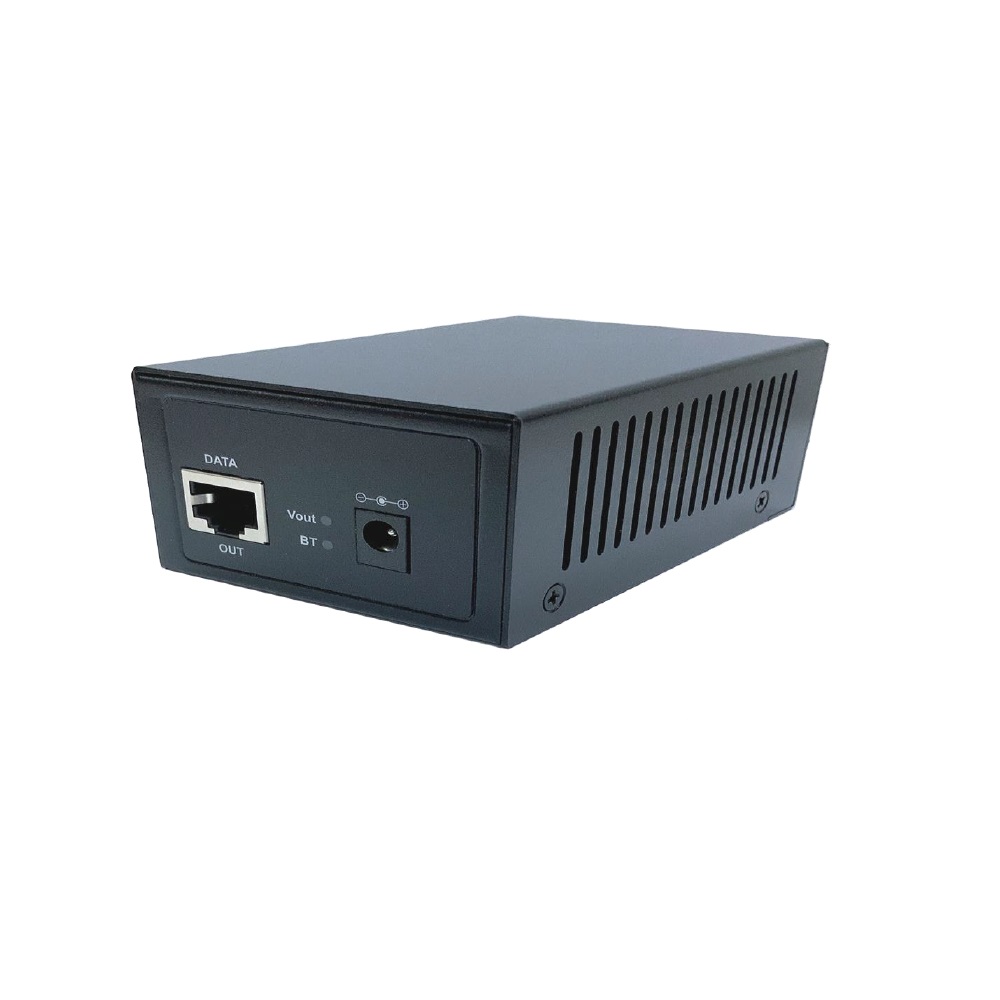

BS524G
Key Features
- Splitter Output Voltage: 24VDC with max 60W over PoE CAT5e 100meter distance
- Power Output Current: up to 2.5A with power isolation
- Ethernet devices at 10/100/1000Mbps speeds within a compact device
- Auto-sensing power from IEEE802.3bt/at/af or Passive high power PSE devices
- Safeguards network device with over-current and short-circuit protection
- Converts Non-PoE devices with Power Over Ethernet Support
- Wider working temperature of 0 ~ 50 degree C
- Light weight and compact size with wall mounting capability
- Fan-less thermal diffusion design
Interfaces
- 2-Port RJ-45 interfaces : 1x PoE (Data+Power) input, and 1x Data output
- DC-Jack Connector for 24VDC power output
Power over Ethernet
- IEEE 802.3bt/at/af PoE standards compliant PD (Powered Device)
- Supports max. 60watt (24VDC x 2.5A) isolated power output
- Split the 48~56V DC power over RJ-45 Ethernet cable into 24VDC output
- Remote power feeding up to 100 meters
Hardware
- Metal case with wall-mounting capability
- LED indicators for IEEE802.3bt PoE and Power voltage output
- Fan-less thermal diffusion design
Standard Compliances
- IEEE 802.3 10Base-T
- IEEE 802.3u 100Base-TX
- IEEE 802.3ab 1000Base-T
- IEEE 802.3bt High Power over Ethernet
- IEEE 802.3at/af Power over Ethernet
- FCC Part 15 Class A, CE
| Hardware Specification | |
|---|---|
| Ethernet Interfaces | Input Port (back Panel)
|
| LED Indicators | Vout: 24VDC output voltage is ON (Green)
BT: PoE Power from IEEE802.3bt source (Green) |
| PoE Power Source Network Cable | 802.3bt PoE (90W): PU100GA
10/100/1000Base-T: 4-Pair UTP Cat. 5e, 6 up to 100m (328ft) Midspan PoE (60W): PI300GA, PI300GH 10/100Base-T: 2-Pair UTP Cat. 3 5, 5e, 6 up to 100m (328ft) 10/100/1000Base-T: 4-Pair UTP Cat. 5e, 6 up to 100m (328ft) 802.3at PoE (30W): PI100GA 10/100/1000Base-T: 2-Pair UTP Cat. 3, 5, 5e, 6 up to 100m (328ft) |
| Data Rate | 10/100/1000Mbps Auto Sensing |
| Dimensions (WxDxH) | 66 x 104 x 44 mm |
| Weight | 280g |
| Input Power Source | CAT5e with PoE 48 ~ 56V DC |
| Max Output Power | 60watts (24V/2.5A) |
| Operating Temperature | 0 ~ 50 degrees C |
| Storage Temperature | -10 ~ 70 degrees C |
| Humidity | 5 ~ 95% (Non-condensing) | Power over Ethernet |
| PoE Standard | IEEE 802.3bt 90W Power over Ethernet |
| PoE Power Input | End-Span or Mid-Span auto detection |
| Power Output | DC 24V / 2.5A (Max. 60W) for CAT5e 100m distance | Standards Conformance |
| Standards Compliance | IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3at High Power over Ethernet IEEE 802.3af Power over Ethernet High Power Midspan PoE |
| Regulation Compliance | FCC Part 15 Class A, CE |
