IEEE802.3bt PoE to 12VDC Splitter
48W Isolated Power Output and Gigabit Data

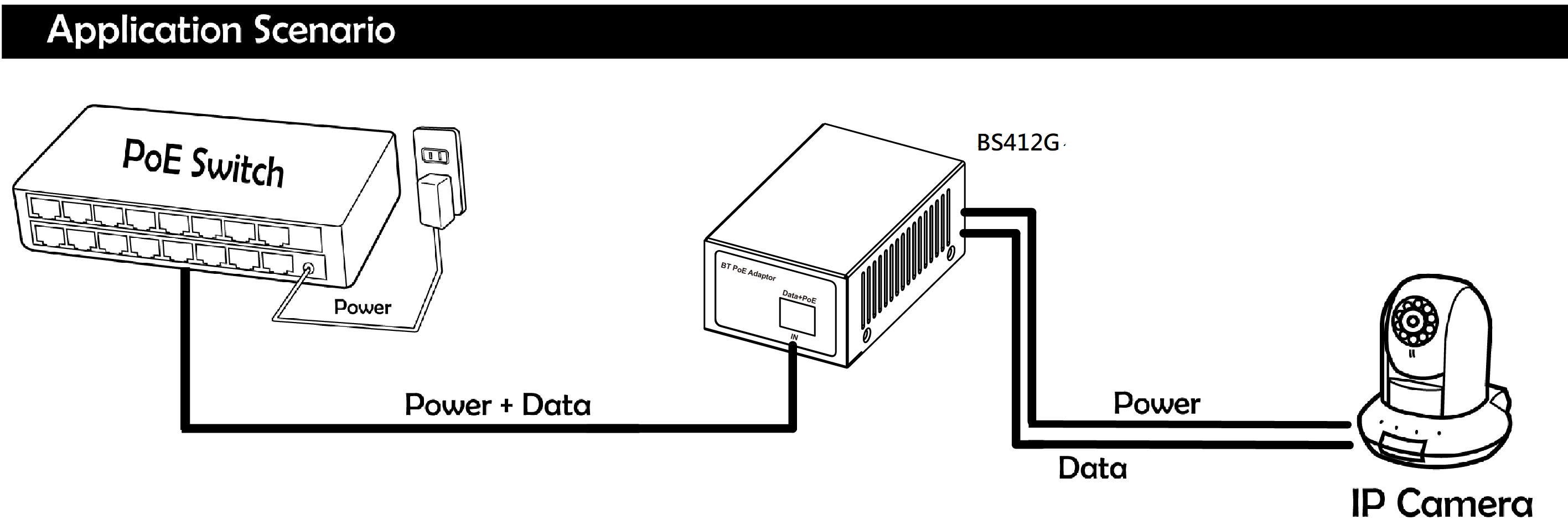

The BS412G is a Gigabit Power over Ethernet (PoE) Splitter, which splits a Gigabit Ethernet IEEE802.3bt PoE cable into a separated Gigabit Ethernet and an isolated 12VDC with 48W power output. It allows users to run Gigabit speed for CAT5e cables over a 100m distance away from PoE switch while providing isolated 12VDC output and separated data to power up the non-PoE network devices.

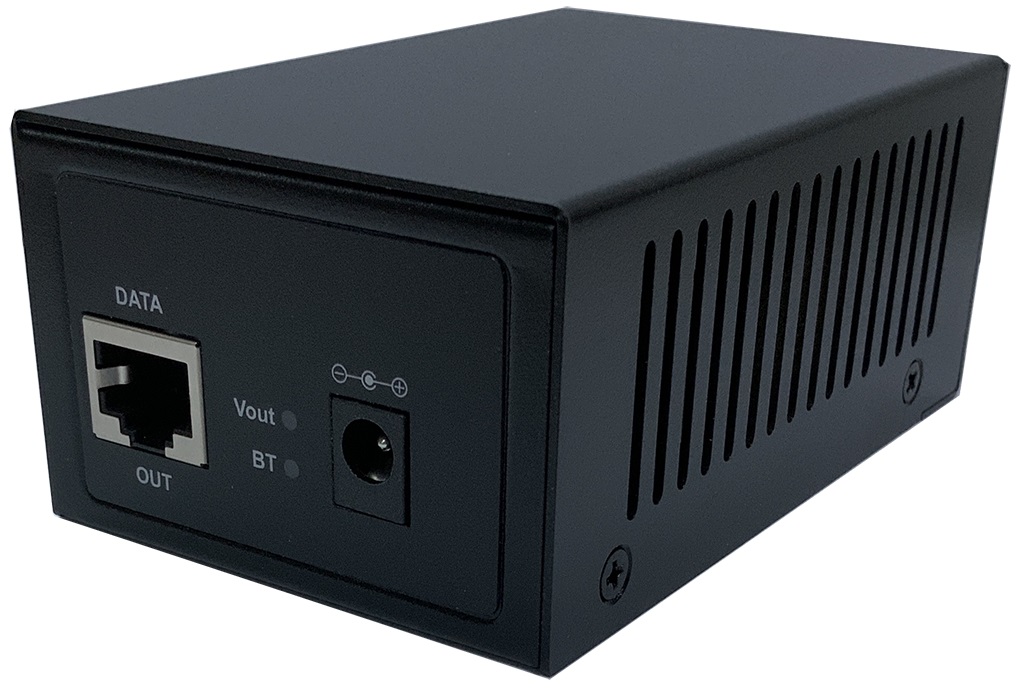

With a DC-Jack connector for an isolated 12VDC power output, this BS412G also provides 2 LED indicators: BT and Vout. The BT LED indicates if the BS412G is powered by IEEE802.3bt PoE Switch or Injector, and the Vout indicates if the 12VDC is ON. It saves cost when installing various network devices in varied locations without AC adaptor outlets.
Key Features
Interfaces
Power over Ethernet
Hardware
Standard Compliances
Hardware Specification | |
---|---|
Ethernet Interfaces | Input Port (Front Panel)
|
LED Indicators | Vout: 12VDC output voltage is ON (Green)
BT: PoE Power from IEEE802.3bt source (Green) |
PoE Power Source Network Cable | 802.3bt PoE (90W): PU100GB
10/100/1000Base-T: 4-Pair UTP Cat. 5e, 6 up to 100m (328ft) Midspan PoE (60W): PI300GA, PI300GH, PU100GA 10/100Base-T: 2-Pair UTP Cat. 3 5, 5e, 6 up to 100m (328ft) 10/100/1000Base-T: 4-Pair UTP Cat. 5e, 6 up to 100m (328ft) 802.3at PoE (30W): PI100GA 10/100/1000Base-T: 2-Pair UTP Cat. 3, 5, 5e, 6 up to 100m (328ft) |
Data Rate | 10/100/1000Mbps Auto Sensing |
Dimensions (WxDxH) | 66 x 104 x 44 mm |
Weight | 280g |
Input Power Source | CAT5e with PoE 48 ~ 56V DC |
Max Output Power | 48 watts (12V/4A) |
Operating Temperature | 0 ~ 40 degrees C |
Storage Temperature | -10 ~ 70 degrees C |
Humidity | 20 ~ 95% (Non-condensing) | Power over Ethernet |
PoE Standard | IEEE 802.3bt 90W Power over Ethernet |
PoE Power Input | End-Span or Mid-Span auto detection |
Power Output | DC 12V / 4A (Max. 48W) for CAT5e 100m distance | Standards Conformance |
Standards Compliance | IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3at High Power over Ethernet IEEE 802.3af Power over Ethernet High Power Midspan PoE |
Regulation Compliance | FCC Part 15 Class A, CE |
