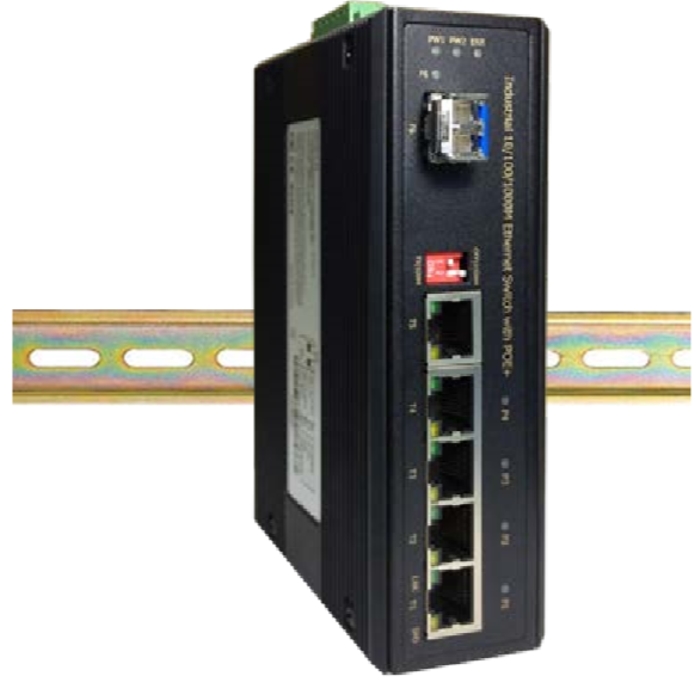

Specification IEEE Standard - IEEE 802.3 10Base-T Ethernet - IEEE 802.3u 100Base-TX Fast Ethernet - IEEE 802.3ab 1000Base-T Gigabit Ethernet - IEEE 802.3z 1000Base-X Gigabit Ethernet - IEEE802.3x Flow Control and Back Pressure, - IEEE802.3af for POE - IEEE802.3at for POE+ Switch Architecture - Back-plane (Switching Fabric): 12Gbps Data Processing - Store and Forward Flow Control: - IEEE 802.3x Flow Control and Back Pressure Jumbo Frame - 9KB MAC address Table Size - 1K Packet Buffer Size - 1M Network Connector : - 5xRJ-45 10/100BaseT(X) auto negotiation, - 4 Giga POE+ 802.3at/af PSE port - Auto MDI/MDI-X function, Full/Half duplex - 1x SFP 100/1000M BaseX Network Cable - UTP/STP above Cat.5e Cable - EIA/TIA-568 100-ohm (100m) - Fiber Cable (Multi-mode):50/125um,62.5/125um - Fiber Cable (Single-mode): 9/125um Protocol - CSMA/CD LED - PW1(Power 1) Green, - PW2(Power 2) Green, - ERR( Fault ) Amber, - TX/RJ-45 port: > LNK (Link/Active) Green, > SPD(Speed) 10/100(OFF ) ,1000 (Green) - SPF Fiber Per port: > Link (Green) > Active Flash DIP Switch - DIP 1: OFF: Port 5 SFP (DEFAULT) ON: Port 5 TX - DIP 2: OFF: SFP 1000M (DEFAULT) ON: SFP 100M Reserve polarity protection - Present Overload current protection - Present Power Supply - Redundant Dual DC 12V-55V Power Input Power Consumption - 5.76W@12/24/48 VDC full load, Without POE Alarm Relay Contact - Relay outputs with current carrying capacity of 1 A @24VDC, - Relay in short circuit mode when 2 powers are connected. in open circuit mode when only one power supply is connected POE power - POE power per port 30watts, Maximum 36Watts per port at 12/24/48VDC input - Maximum total power 126Watts at 24VDC and 48VDC power input - At 75℃ ---- Maximum total power 80W at 12VDC power input - At 70℃ --- Maximum total power 85W at 12VDC power input Removable Terminal Block - Provide 2 Redundant power , Alarm relay contact ,6 Pin - Wire range: 0.34mm^2 to 2.5mm^2 - Solid wire (AWG):12-24/14-22 - Stranded wire(AWG): 12-24/14-22 - Torque:5lb-In/0.5Nm/0.56Nm - Wire Strip length: 7-8mm Operating Temperature - -40℃~75℃ fully tested POE efficiency - Voltage efficiency up to 97% from 12VDC to 55VDC. Surface temperature - Surface temperature rises 3℃ full load in a 75℃ chamber Operating Humidity - 5% to 95% (Non-condensing) Storage Temperature - -40℃~85℃ MTBF(mean time between failure) - 5,510,304 hrs(MIL-HDBK-217F) at 25℃ Housing - Rugged Metal ,IP30 Protection Case Dimension (W X D X H) - 142mmx43mmx105mm (LxWxD) Installation mounting - DIN Rail mounting and Wall Mounting EMC/EMS - CE, FCC, VCCI EMI - FCC Part 15 Subpart B Class A, - CE EN 55022 Class A

Product DM
