401EL 2 Mbps Inverse Multiplexer

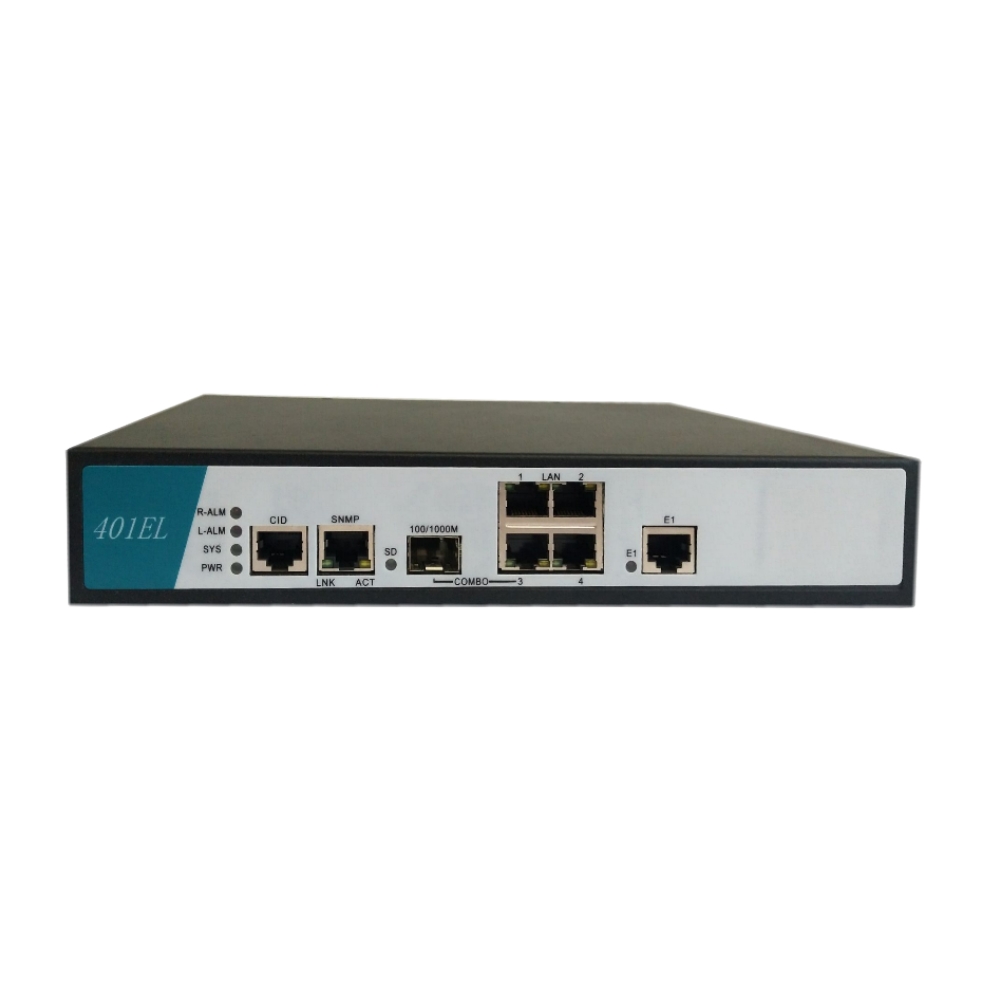

401EL is an E1 inverse multiplexer enabling the transport of high speed data broadband services over the E1 links. Converting G.704 and G.8040 standard to Ethernet with multiple E1 by GFP format mapping, 401EL can support 1.984Mbps.
10/100Base-TX or Fiber LAN user interfaces make 401EL is an ideal solution for high speed broadband application. The inverse aggregation bandwidth is scalable as Nx64kbps [the maximum N=31] with maximum payload bandwidth at 1.984Mbps.
401EL can be managed locally by connecting a VT-100 emulated PC to the CID port or remotely through Telnet/SNMP access all on front panel of the unit. Administration, Maintenance, and Provisioning (OAM&P) are provisioned with the use of 16Kbps embedded operation channel (EOC) that runs through the inverse link. Configured with individual IP address for local and remote unit, 401EL is accessible to the Internet users who are managing the units from a far end place.
To ensure operation continuity and accommodate field requirement, 401EL offers choices of AC or DC or AC+DC power.
Specifications | |
---|---|
Inverse multiplexing | |
Maximal delay: | 64 ms[512 frame buffer] |
Data rate: | N x64kbps, [the maximum N=31], 16Kbps EOC channel is embedded in SA4-SA6 spare bits. |
E1 Interface | |
Standard: | ITU-T G.703, G.704 |
No. of E1 output: | 1-4,scaled down automatically per E1 alarms |
Line rate: | 2048 Kbps +/- 50 PPM |
Clock Mode | Internal, Recovery |
Line Code: | HDB3 |
Framing: | PCM31, PCM31C, PCM30, PCM30C |
Pulse shape: | Meet ITU-T G.703 |
Impedance: | Balanced 120Ω+/-5% resistive or unbalanced 75Ω+/-5% resistive, software programmable |
Connection Type: | RJ-45 or BNC ( optional ) |
LAN Interface | |
Standard: | IEEE 802.3 / IEEE 802.3u |
Interface: | IEEE 802.3/802.3u 10/100/1000M Base-T |
Data Rate: | N x64K bps[N=1~31] |
Bridging Capability: | Complied with IEEE 802.1d transparent bridge Supports VLAN ID, Q in Q and up to 2048 MAC addresses learning |
Connection Type: | RJ45, 4 ports |
Ethernet packet size: | Maximum packet size up to 9K jumbo frame |
SFP interface | |
Type | One 100Base-FX 802.3u interface or 1000Base-FX 802.3u interface, SFP type |
Alarm and Performance | |
CID interface: | VT-100/RS-232C/Telnet/SNMP/Web server |
EOC channel: | 16Kbps |
SNMP: | meet IETF RFC1157,1212 and 2495@10/100Based Tx with RJ-45 connector |
Meet G.821 and G.826 for E1 interface | |
Fiber interface; LOS | |
Maintenance | |
Loopback: LL, RL and NL(local payload loopback) Power AC or DC or AC+DC AC: 90 - 260 V @ 50-60 Hz, 0.2A DC: -36 ~ -72 V | |
Mechanic | |
Desktop (WxHxD) | 234mmx155mmx43mm |
