24V PoE

Cinque Terre

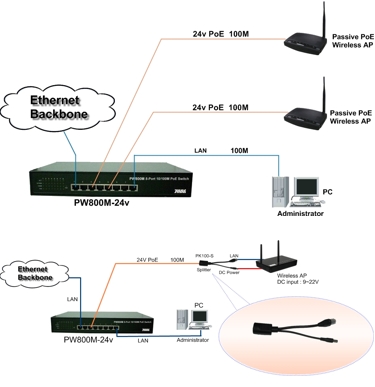

Its cost saving and centralized power distribution using of PoE, eight ports of PW800M-24v provides PoE power injecting function which is able to drive 8 x passive PoE-enabled devices such as wireless APs in the remote different locations. For small area such as home, SMB office, PW800M-24v provides a simple, cost-effective, and highly reliable network connection for data and power feeding remotely.

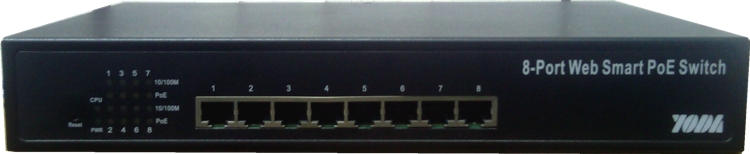

PW800M_24v


Advance and User-Friendly PoE Management Features
The PW800M-24v offers PoE Power Control, PoE Priority Control, PoE Power Delay and PoE Scheduling on each PoE ports.

Midspan Passive Power Source Switch
The PW800M-24v has (8) 10/100BASE-TX ports that support midspan passive PoE injecting. It is designed to inject up to 15.4 Watts of power per port. The PW800M-24v also supports active circuit protection, which automatically disables a port if there is a short, while the other ports remain active.

Simple Wiring and Installation
PW800M-24v reduces cables and eliminates the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. Providing 8 PoE interfaces, the PW800M-24v is ideal for small business and workgroups requiring to deploy the PoE for the wireless access points, network camera or IP phones in any places easily.

Easy Configuring Web Management Interface
The Web smart functions make it easy to survey and control the PoE power provision to the devices by the Web interface. Basic switching functions such as VLAN, Bandwidth Control, Storm Control and QoS are available for network management. The smart functions make it easy to survey and control the PoE power provision to the devices by the Web interface. Basic switching functions such as VLAN, Trunk, QoS are available for network management.

Features
 - PoE Power Control: Each PoE port able to enable or
   disable PoE output
 - PoE Priority Control: prioritizes budgetary power
   to critical applications
 - PoE Power Delay
 - PoE Scheduling by 7 days x 24 hours base
 - Up to 30W of power output per PoE port
 - Midspan Passive PoE Injecting
 - Safe and reliable power to WLAN access points
 - Automatic detection and protection of non-standard
   Ethernet terminals
 - Supports 10/100 Base-T Ethernet
 - Compact design fits easily in WLAN access
 - Plug-and-Play with simple configuration required
 - Internal power supply of upto 120w
 - Easy installation and maintenance
