24V PoE

Cinque Terre

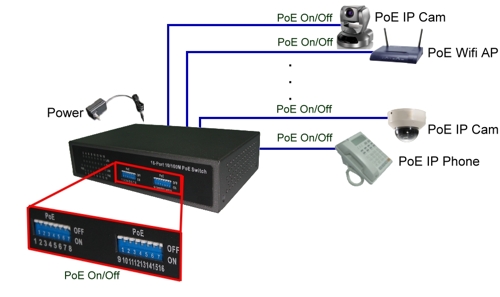

PW1600-24v is a 16-port 10M/100M Fast Ethernet Switch with Power over Ethernet capability. With 16 dip switches, each PoE port can be manually set for On-Off control. PW1600-24v is supporting up to 24VDC output on each LAN port if its port DIP switch is ON.

Auto-MDI/MDI-X
Every port can automatically sense your type of cable, so there is no need for crossover cables whether you are connecting this switch to another switch or to a computer.

Power Protection
PW1600-24v series supports power protections as OVP (Over Voltage Protection), OCP (Over Current Protection), OTP (Over Temperature Protection), robust short-circuit protection and surge protection.

Non-Blocking
This switch receives and forwards traffic seamlessly with its non-blocking wire-speed. Every port simultaneously supports up to 200Mbps of bandwidth in full-duplex mode. This feature provides full wire speed to the connected devices and allows you to run a smooth network.

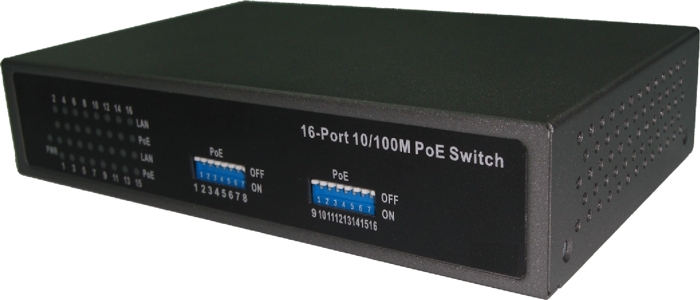

PW1600-24v


no abstract ...
Technical Specifications
  • Standards IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3x Flow Control
  • Features MAC Address: 2K, Buffer Memory: 512K bits Transmission Method: Store and Forward
  • Filtering/Forwarding Rates 10Mbps port - 14,880pps, 100Mbps port - 148,800pps
  • Transmission Media 10BaseT Cat. 3, 4, 5 UTP/STP, 100BaseTX Cat. 5 UTP/STP
  • PoE on each Port 10W
  • Output PoE Pin 4,5,7,8
  • LED Indicators Power, LAN1~16 port , PoE 1~16 port
  • Power Adaptor Input: 100-240VAC, 50~60Hz Output: 48VDC/2.5A (120W)
  • Dimensions 188 x 118 x 38 mm (L x W x H)
  • Weight 1.5 kg
  • Operating Temperature 0 to 50℃
  • Humidity 10 to 90% RH (non-condensing)
  • Certifications FCC , CE
