Surge Protector

Description

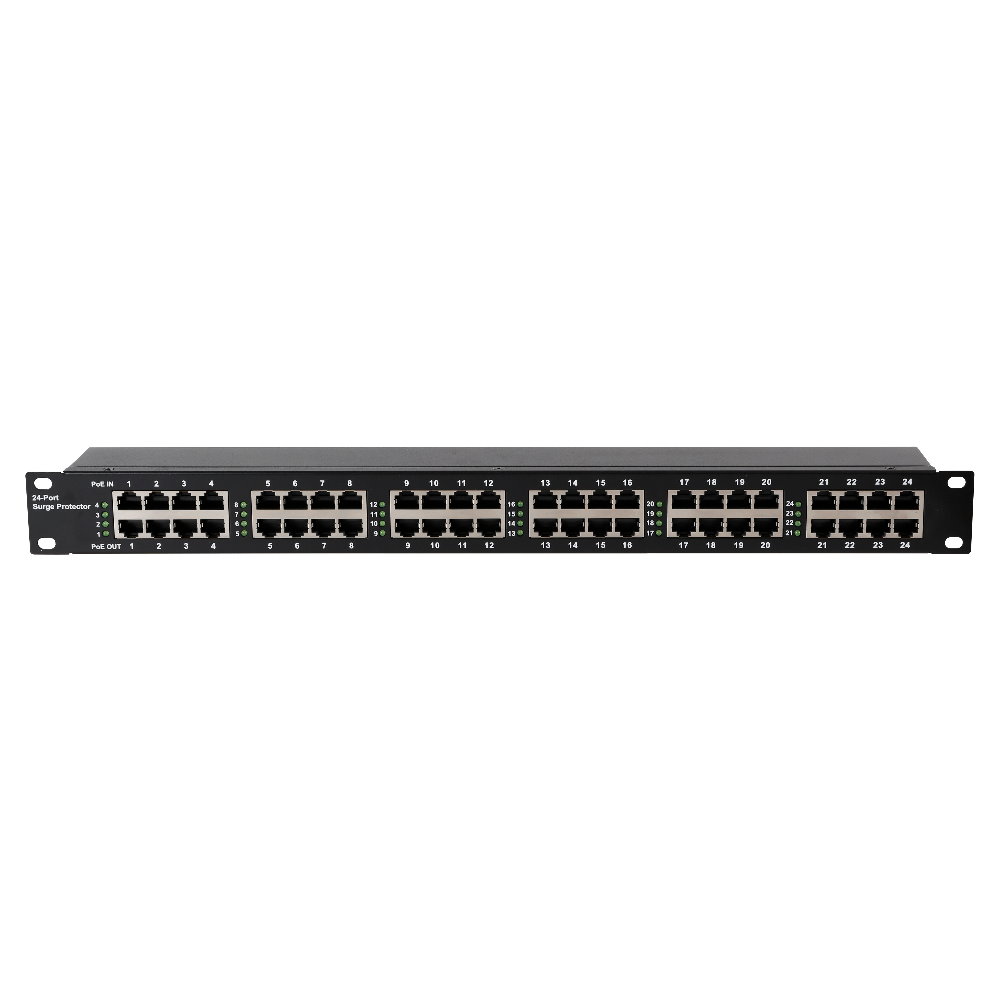

19” Rack 24-port 1G/10G PoE 6KV Surge Protector
SP2400X

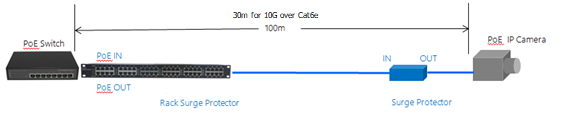

19” rack PoE surge protector SP2400X is an appliance or device designed to protect electrical devices from voltage spikes as PoE (Power over Ethernet) is in use as typical application below.

SP2400X


  • 19” Rack 24 ports PoE 6KV Surge Protector
  • 10/100Mbps/1G/10Gbps Ethernet supported
  • IEC 61000-4-5 SPD standard
  • Applicable to IEEE 802.3at/af upto 30w Mid-point PSE environment
  • Individual PoE port 6KV surge protection isolated
  • PoE Surge Protection LED indicator design for each port
  • Failsafe design for LED off if one port failed due to extreme surge exceeds surge capacity and not damage the equipment
Specifications
Model SP2400X
Features 19” Rack 24 ports PoE 6KV Surge Protector
Standards Compliance IEC61000-4-5 SPD
Bandwidth Up to 68MHz
Maximum Input 58VDC
Insertion Loss <0.2dB
Return Loss 16dB @ 100?
Frequency Response Up to 3dB@68MHz
Insulation Resistance 10,000 M?
Peak Discharging Current 150A for 10/700us
Maximum Surge Voltage Up to 6KV
Surge Life 30000 operations @ 4kV
Surge Protection <1ns
Common Mode
 6KV for 10/700us
Differential Mode
 2KV for 10/700us
PoE Passing Capability 30W
Ethernet Connector- In RJ45-8P8C
Signal Passing Capability Breakdown voltage- 58V
Clamping voltage- 77V
Ethernet Connector- Out RJ45-8P8C
Internal Impedance 40Ω Nominal
PoE Support Applicable to IEEE802.3 at/af environment
PoE Mode Mid-Span (Pin 1,2,3,6)
Material Metal
Operating Temperature -40~85℃ (-40~185℉)
Operating Humidity 20-95% Non-condensing
Dimensions 540 x 130 x 95mm
Weight 1.5kgs
