Surge Protector

Description

SP2400G is a passive device that helps protect sensitive networking equipment from power surges and it could intercepts repeated surge and spikes.

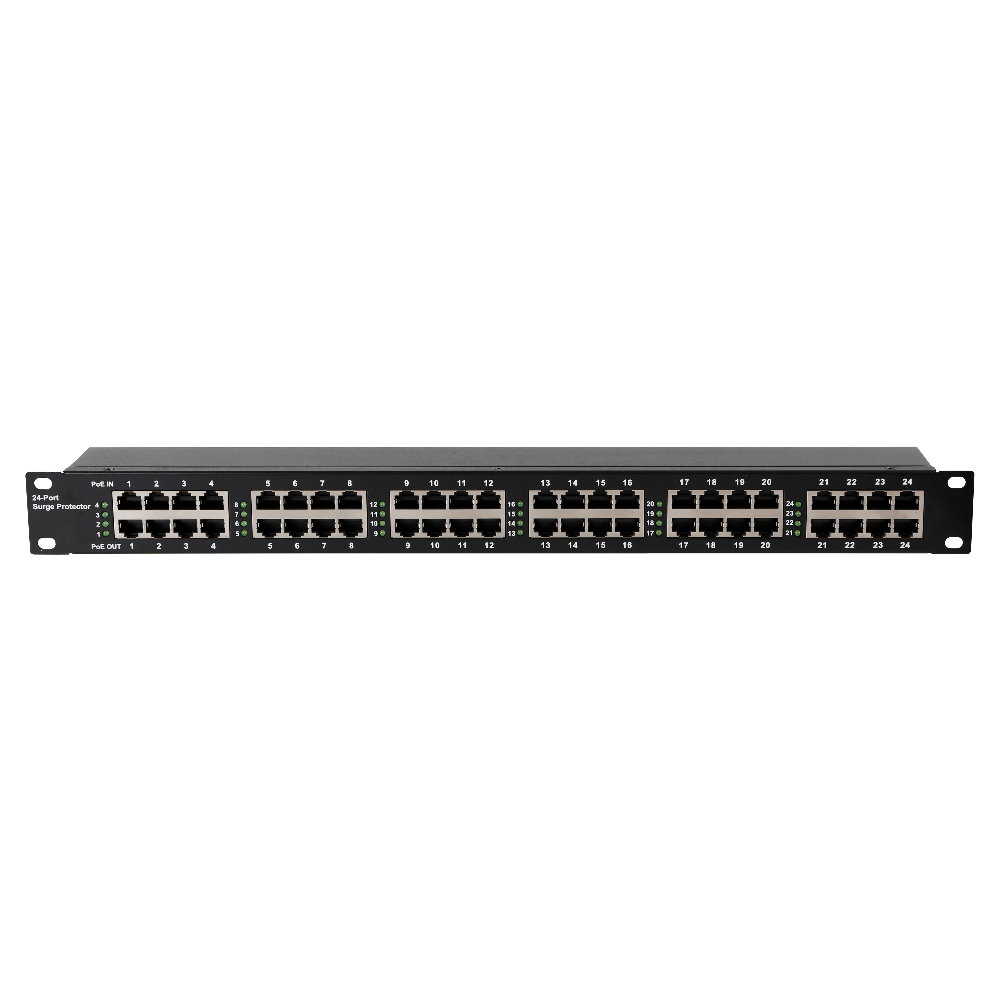

SP2400G


  • 24-port PoE Surge Protector
  • LAN:10/100/1000Mbps
  • Power and Singal Line Protection:6KV
  • Support End-Span PoE
  • 802.3af/at Compliant
  • 19" Rackmount
Model:SP2400G
24-port 6KV PoE+ 30W Surge Protector
Standards ComplianceIEC61000-4-5 PoE Passing Capability30W
BandwidthUp to 68MHz Ethernet Connector-InRJ45
Maximum Imput58VDC Signal Passing CapabilityBreakdown voltage-58V
Clamping voltage-77V
Insertion Loss<0.2dB Ethernet Connector-OutRJ45
Return Loss16dB @ 100Ω Internal Impedance40Ω Nominal
Frequency ResponseUp to 3db@68MHz PoE SupportIEEE802.3af/at
Insulation Resistance10,000MΩ PoE ModeEnd-Span (Pin 1,2,3,6)
Peak Discharging Current150A for 10/700us MaterialMetal
Maximum Surge VoltageUp to 6KV Operating Temperature-40°~185°F(-40°~85°C)
Surge Life30,000 operations @ 4kV Operating Humidty20-95% Noncondensing
Surge Protection<1ns Dimensions445 x 60 x 44mm
Common Mode6KV for 10/700us
Differential Mode2KV for 10/700us
