Unmanaged PoE Switch
Description

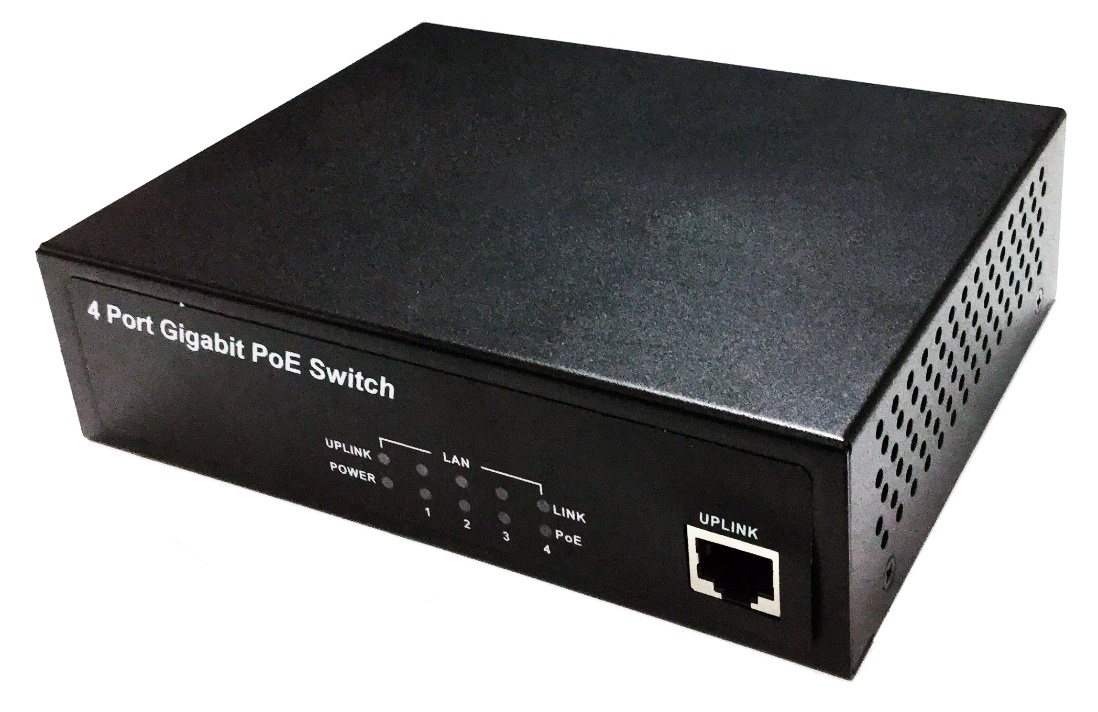

5-Port Gigabit Switch with 4 Port PoE IEEE 802.3at Ports Metal case
Yoda PS541Gi features IEEE 802.3af and IEEE 802.3at High Power PoE capabilities that offer a combined power output of up to 30w over Cat.5e/6 Ethernet cable.

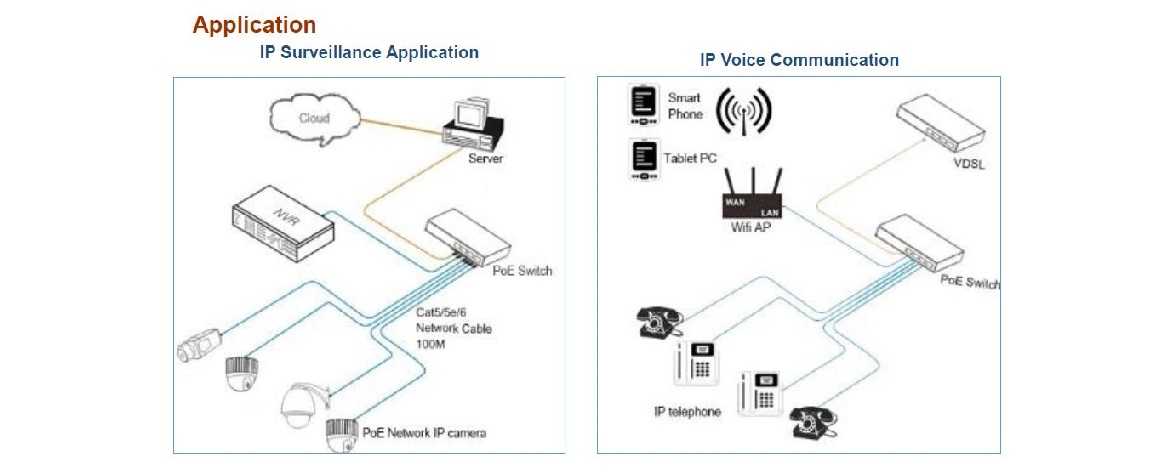

With a total PoE budget of 65 watts for the whole system, PS541Gi is designed specifically to satisfy the growing demand of higher power consuming networking application such as video surveillance, wireless Access Points and no configuration is required.
PS541Gi
- IEEE 802.3at/af Power over Ethernet (PoE) standard
- Auto-detection and protection of non-standard PoE devices
- 5-Port 10/100/1000Mbps Ethernet
- 9K Jumbo Frame supported
- Provides up to 30 watts for PoE+
- Internal power capacity of 65W
Key Features
| Technical Specifications | |
|---|---|
| Standard Compliance | IEEE 802.3 10-BASE-T (Ethernet)
IEEE 802.3u 100-BASE-TX (Fast Ethernet) IEEE 802.3ab 1000BASE-T (Gigabit Ethernet) IEEE 802.3x Flow Control (full-duplex flow control) IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus |
| Ports | 5 ports Gigabit Auto-MDIX, 4 ports PoE/PoE+ |
| MAC Address | 2K MAC address table with auto learning function |
| Buffer Memory | 128KB |
| Switch Fabric | 10Gbps |
| Jumbo Packet Size | 9K Bytes |
| PoE Standard | IEEE 802.3af Power over Ethernet / PSE
IEEE 802.3at Power over Ethernet Plus |
| Power Input | AC input: 100 to 240 VAC, 50/60 Hz |
| PoE Power Output | Per Port 56V DC, Max. 30 watts |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Budget | 65Watts |
| Operating Temperature | 0° ~ 50°C |
| Storage Temperature | -40 to 70 °C |
| Dimensions (W x D x H)Drvice | 160 x 123 x 44 mm |
| Weight(1 PC/Brown Box) | 1.3 kgs/ 235 * 145 * 80 mm |
| Shipping Carton (10 PCs) | 13.5 kgs/ 48 x 43 x 32 cm |
| Warranty | Limited Lifetime Warranty |
