Unmanaged PoE Switch

Description

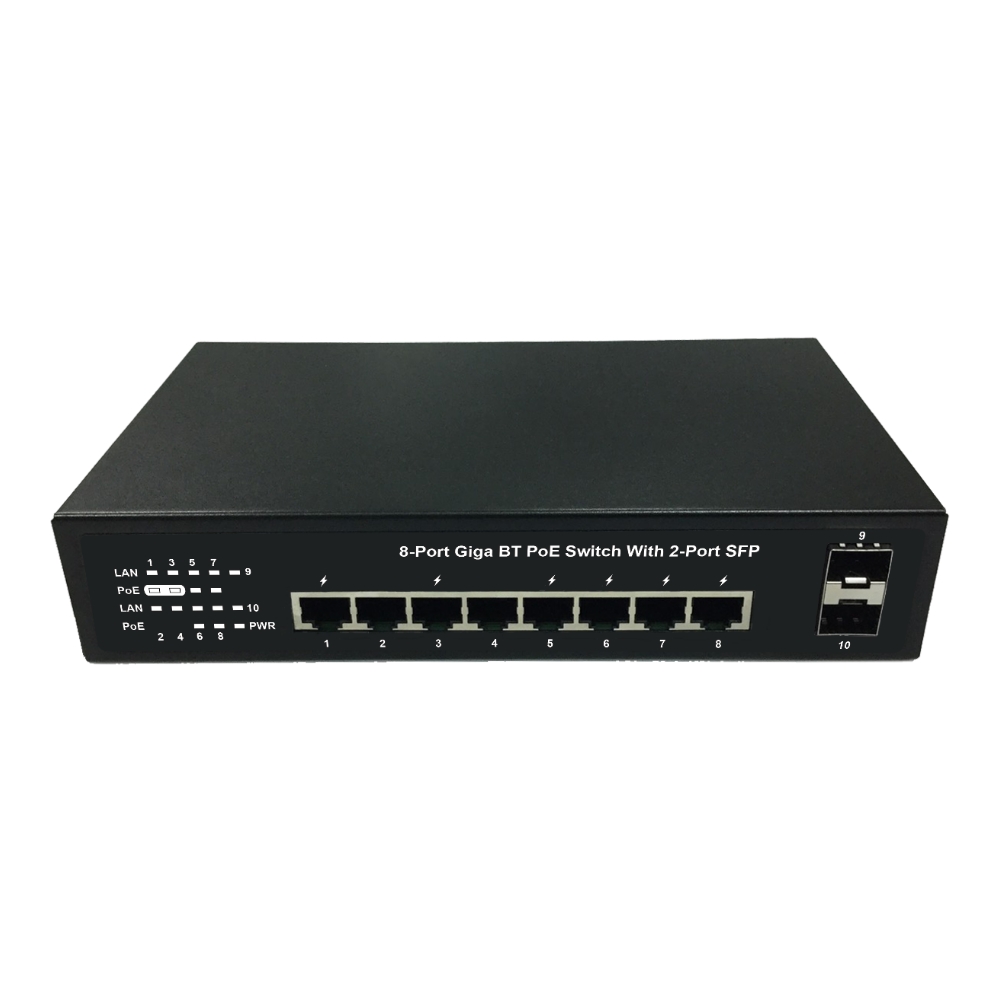

10-Port GbE Switch with IEEE 802.3bt PoE, 2-port SFP

PS1026GFB, a 10-port Gigabit IEEE 802.3bt PoE Switch, is a standard Gigabit Ethernet switch that meets all IEEE 802.3/u/x/z/ab/af/at/bt standards. The switch includes 8-Port 10/100/1000Mbps RJ-45 with 2-Port IEEE 802.3bt and 4-Port IEEE 802.3at PoE function, plus 2-Port Gigabit SFP for Fiber. It is an ideal solution for applications of high-power 90W wireless AP, 4G/5G LTE, and IP cameras, phones.

PS1026GFB


  • 8 x RJ-45 ports for Gigabit Ethernet connection
  • 2 x IEEE 802.3bt max. 90W per port PoE capacity, plus
  • 4 x IEEE 802.3at max. 30W per port PoE capacity
  • Support Jumbo Frame size up to 9KB
  • 2 x Gigabit SFP for Fiber connection
  • Plug and play for easy configuration
Technical Specifications
Standard compliance IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Ethernet
IEEE 802.3z 1000Base-X Ethernet
IEEE 802.3x Flow Control capability
IEEE 802.3bt/at/af Power over Ethernet
RoHS Compliance
Performance Switching capacity:
  • 10 Gigabit Ethernet ports with non-blocking wire speed performance.
  • 20 Gbps switch capacity
  • 8 K MAC addresses
  • Supports Jumbo frame, up to 9K
PoE Features 2 x IEEE802.3bt/at/af, and 4 x IEEE802.3at/af PoE PSE ports
Port 1, 3 with IEEE802.3bt/at/af max. 90Watt per port.
Port 5, 6, 7, 8 with IEEE802.3at/af max. 30Watt per port.
Endpoint with 56VDC power through 4-pair RJ-45 connectors.
PoE-PSE activity LED indicators
Auto detect powered device
250Watts (optional 380W) of total power budget
Hardware Specifications
FeatureDetailed Description
Power Characteristics Voltage : 100-240 VAC
Frequency : 50-60 Hz
PoE Budget Max. 150W (for PS1026GFB-150)
Max. 250W (for PS1026GFB-250)
Max. 380W (for PS1026GFB-380)
PoE Surge Protection 2KV (Optional 6KV)
Ambient Temperature 0° to 40℃
Humidity 5% to 90%
Dimensions 44(H) x 220(W) x 206(D)mm
Weight 2.3kgs (for PS1026GFB-250)
EMI FCC Part 15 Class B, CE
