Description

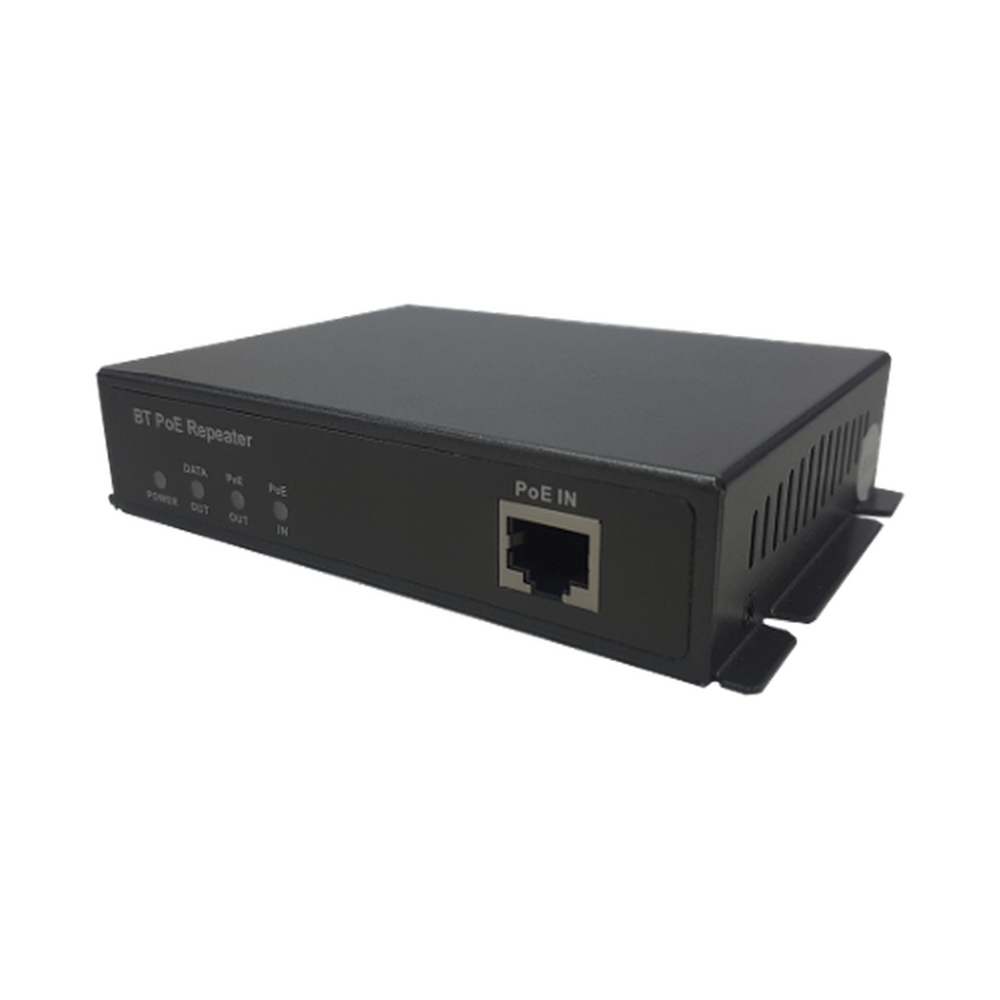

2-port GbE 802.3bt PoE Repeater

PR102GB is a Gigabit IEEE802.3bt Power-over-Ethernet (PoE++) Repeater providing a 10/100/1000Mbps Ethernet transmission for 100-meter distance with two Gigabit Ethernet LAN port extending another 100-meter with PoE capability.

It forwards both 10/100/1000M Ethernet and PoE for another 330ft (100m) using an innovative power-processing scheme, and multiple units can be deployed in series for longer distances without degradation in network speed or latency.

Powered by a 10/100/1000Mbps PoE switch (or PoE injector), PR102GB requires no local power in the middle of the cable making it extremely easy to connect and power IP cameras for at least 3~4 times further distance.

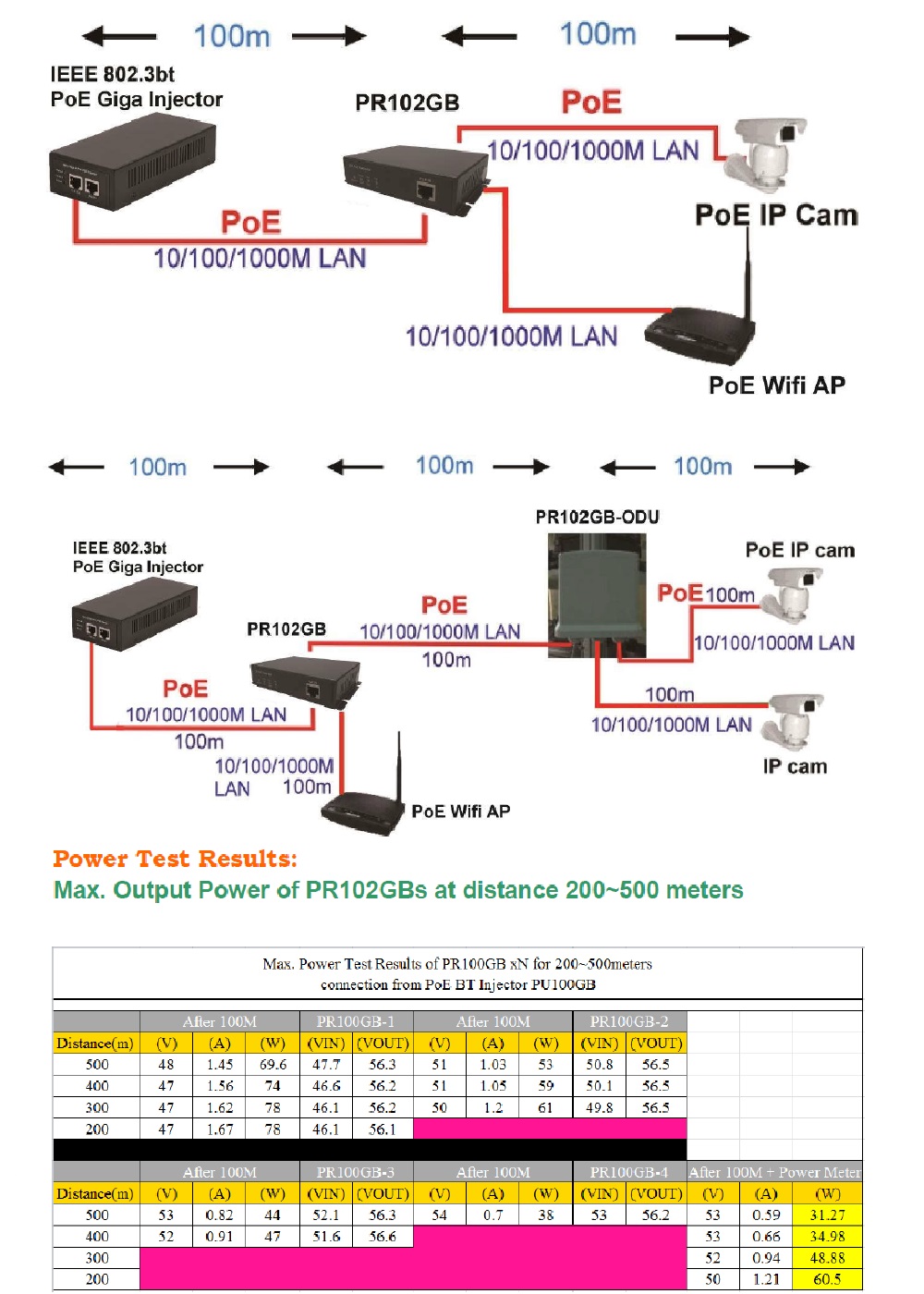

For a simple application, a PR102GB allows to connect one PoE Device (PD) located 200 meters away from the Gigabit Ethernet PoE switch. The PoE switch delivers PoE power over the first 100 meters of Cat5E cable to the PR102GB, and the PR102GB restores the Ethernet signal and forwards remaining PoE power to the PD 100m away.

The PR102GB requires no local power supply, and the PR102GB presents no restriction to the Ethernet network connection. Outdoor units of PR102GB-ODU are also available with IP65 rating enclosures.

PR102GB


  • 2-port Repeat and extend the Power over Ethernet cable installation for another 100 meters
  • No local power required
  • Fully 10/100/1000M Ethernet protocol transparent – no restrictions to network traffic
  • 10/100/1000Mbps Ethernet Wire Speed
  • Compatible with IEEE 802.3bt/at/af PoE and midspan PoE standard
  • IP65 Weather-Proof for PR100GB-ODU outdoor unit
  • Simple installation – Plug & Play
Specifications
Ethernet Interface IEEE 802.3x, Auto-Detection for 10/100/1000BaseT and full/half duplex
Automatic MDI/MDIX function
PoE Input Port : RJ-45 Connector x 1
PoE Output Port : RJ-45 Connector x 2
Port-based VLAN function for LAN ports (option)
POWER IEEE 802.3bt/at/af Compliant with voltage within 44-57 Volt
Maximum Power Dissipation : 2.5 Watts
LED Indicators POWER : Power is ON
POE OUT1 : GE Port with PoE OUT
POE IN : GE Port with PoE IN
POE OUT2 : GE Port with PoE OUT
Regulations & Approvals FCC Rules Part 15
CE
Physical Dimension PR102GB WxDxH : 132.1 x 90 x 28 (mm)
PR102GB-ODU WxDxH : 180 x 165 x 95 (mm)
Operating Environment Humidity : 5% to 95% non-condensing
Temperature : 0 ~ 50 degree C
