Description
500m LAN Extender with 15w power out

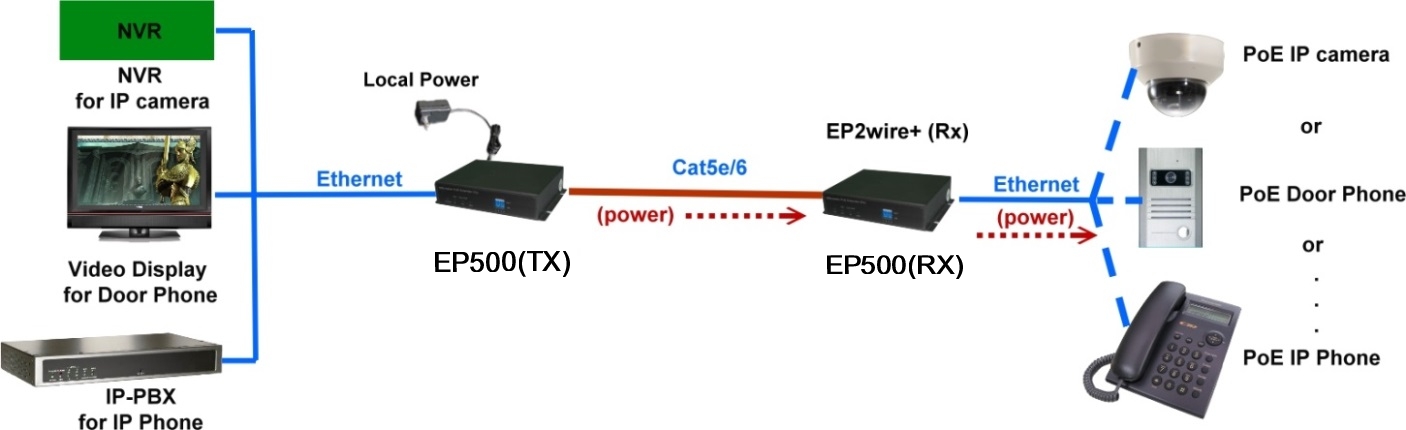

EP500 provides with remote PoE capability over Ethernet at a distance up to 1,500ft (500 meters) over Cat5e/6 connection with PoE power output of 15w for PoE-enabled IP cam or wifi access point, etc.
EP500 works in pair with one master and one slave (client) units. In addition, it is compliant to Safety-Extra-Low-Voltage (SELV) standard.

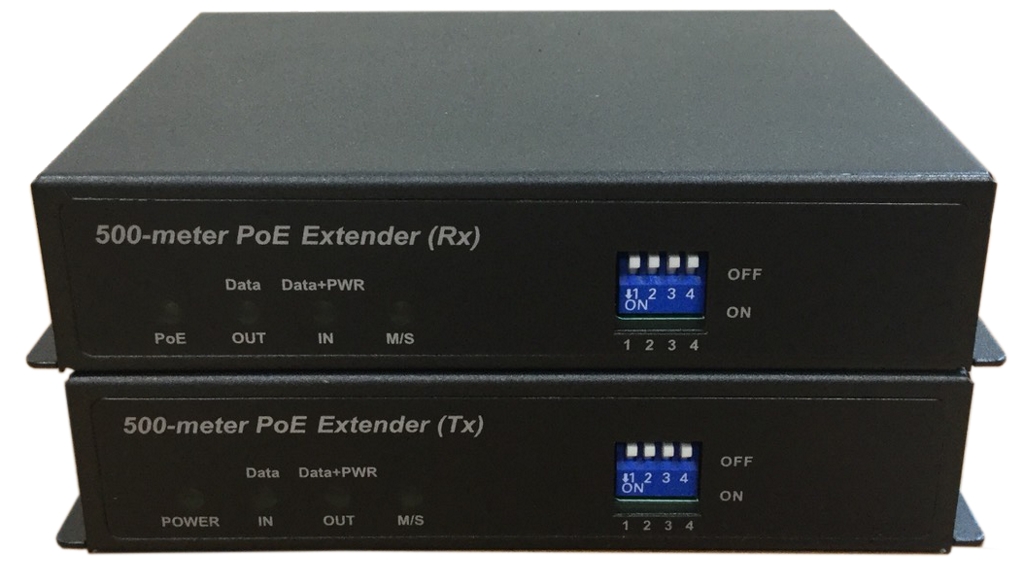

EP500
- Remote Line Power over Ethernet Cable
- 6KV Surge Protection
- Maximum 1,000 ft distance of 10/100Mbps or
- Maximum 1,500 ft distance for 15Watt power output
- Auto MDIX for 10/100 BaseT Ethernet LAN Ports
- Low-Latency for Remote IP-CAM Applications
| Technical Specifications | |
|---|---|
| LAN Interface: | Auto-Detection for 10/100 BaseT and Half/Full duplex Fully compatible with IEEE802.3/IEEE802.3u Automatic MDIX Function Connector: RJ45 |
| Line Interface: | Line Rate: 100/100 ~ 10/10Mbps (full duplex) Safety Extra Low Voltage (SELV) Compliant (< 60VDC) Connector: RJ45 |
| Remote PSE: | IEEE 802.3at/af Compliant with output voltage within 44 – 57VDC Power Auto Restart with Under Voltage Lockout (UVLO) Fault Detection Maximum output power 15 Watts depending on line condition and distance IP-65 ODU (optional) |
| LED Indicators: | POWER: Power is ON LINE: Line Connection Status LAN: Data Activity of LAN Port |
| Physical Dimension: | EP500-Master/Slave: 120 x 90 x 28 (mm) |
| Operating Environment: | Humidity: 5% to 95% non-condensing Temperature: 0 ~ 40 degree C (Optional for wide working temp model) |
| Regulatory Compliance: | FCC Rules Part 15 CE |

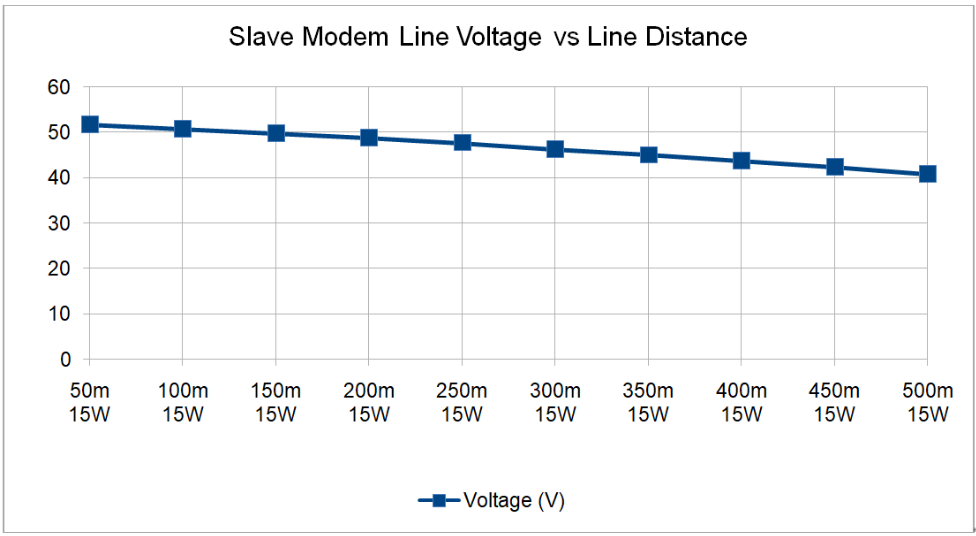

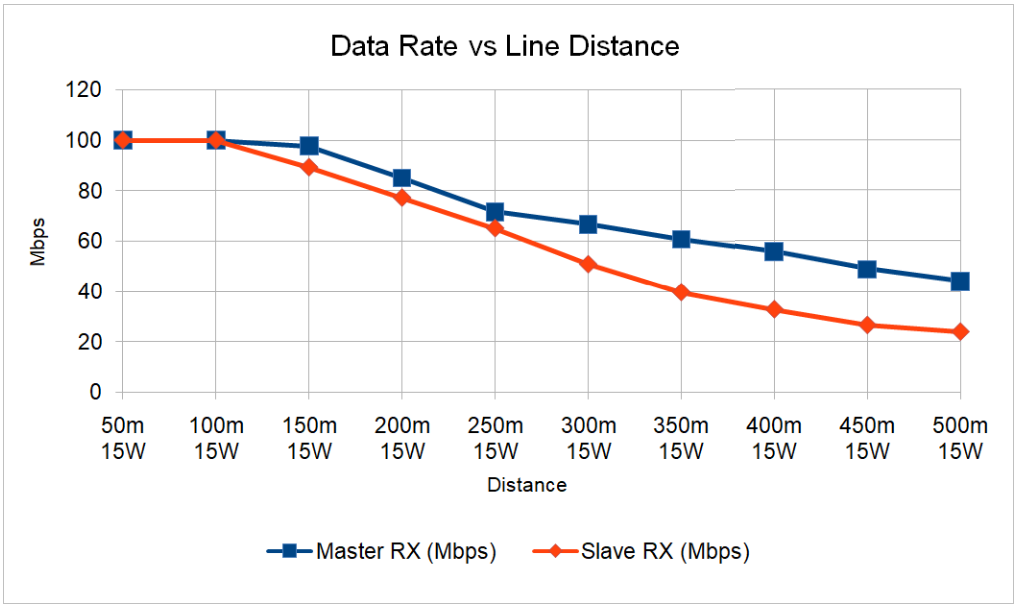

| Performance Table: | |
 | |
 | |
