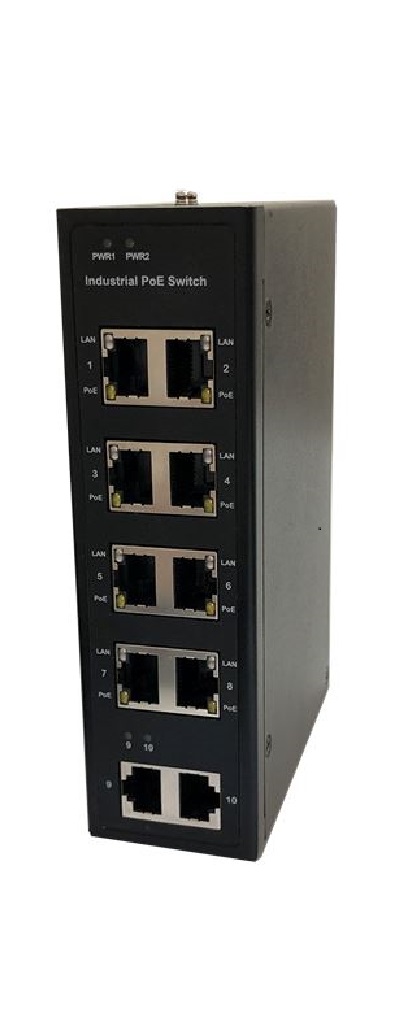

10-Port 10/100/1000BaseT (RJ45) + 4-Port PoE++ Industrial Gigabit IEEE802.3bt/at/af PoE Switch

DB1082G is an Industrial Gigabit PoE Switch with 10-port 10/100/1000BaseT RJ45 connectors plus 4-port IEEE 802.3BT (90W per port) for plug & play. This slim switch is designed with Wall-mountable or DIN rail mountable, making installation more easy.

Besides redundant power supply with overload current protection, it embeds with power din and 6-pin terminal block to prevent power failure event and sufficient power of up to 10A. It can perform dual power backup to ensure system power loss immunity.

The DB1082G is designed to meet with critical network environment with IP 30 enclosure and test under extensive Industrial EMI and Safety standards. It also passed stability testing such as free fall, shock and vibration.

The DB1082G can be used in extreme environments with an operating temperature range of -40 °C to 75 °C.

DB1082G


  • System Interface/Performance
    -RJ-45 port support Auto MDI/MDI-X Function
    -Store-and-Forward Switching Architecture
    -Back-plane (Switching Fabric): 20Gbps
    -8K MAC address table
  • Supports Wide Operating Temperature (-40°C~75°C)
  • IP-30 Metal Housing with DIN Rail and Wall Mount Design
  • 50~57DCV Redundant Power (Power Din & Terminal Block) up to 10Amp for backup with each other
  • 4-port IEEE 802.3bt/at/af PoE++ (90W per port)
  • Polarity reverse protection & removable terminal block
HARDWARE SPECIFICATIONS
IEEE Standards IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX /FX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-SX/LX
IEEE802.3x Flow Control and Back Pressure
IIEEE 802.3bt/at/af, PoE++
Switch Properties Back-plane (Switching Fabric): 20Gbps Packet
Throughput ability (Full-Duplex): 1,488,100pps @64bytes
Transfer Rate 14,881pps for Ethernet port
148,810pps for Fast Ethernet port
1,488,100pps for Gigabit Ethernet port
Connectors 10/100/1000TX: 10 x RJ45 with auto MDI/MDI-X and function
PoE++: 4 x RJ45 for 90W per port
MAC Address 8K MAC addresses
Processing Store-and-Forward
Network Cable 10BaseT: 2-pair UTP/STP Cat. 3, 4, 5, 6 cable EIA/TIA-568 100-ohm (100m)
100/1000BaseT: 2-pair UTP/STP Cat. 5e, 6 cable EIA/TIA-568 100-ohm (100m)
Protocol CSMA/CD
Case Dimension Metal case, IP-30; 44mm(W)x105mm(D)x150mm(H)
Weight 620g
LEDS Power Indicators:
Green LED x 2 for PWR 1 and PWR 2
LAN Indicators:
Green for 1000M and Amber for 10/100Mbps
PoE Indicators:
Amber ON for PoE
Power Supply 50~57VDC, Redundant power with polarity reverse protect function and removable terminal block
PWR 1 (Power Din), PWR 2 (6-pin Terminal Block) Up to 10Amp
Consumption 3.76 Watts (Full load for System Ethernet)
Overload Current Present
Polarity Reverse Present
Operating Humidity 5% to 95% Non-condensing
Operating Temperature -40°C~75°C / -40°F~167°F
Storage Temperature -40°C~85°C / -40°F~185°F
EMI/EMS FCC Class A
EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),
EN61000-4-8,
EN61000-4-11
CE EN55022 Class A, CE EN55024
Stability Testing IEC60068-2-32 (Free fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)
Warranty 2 years
