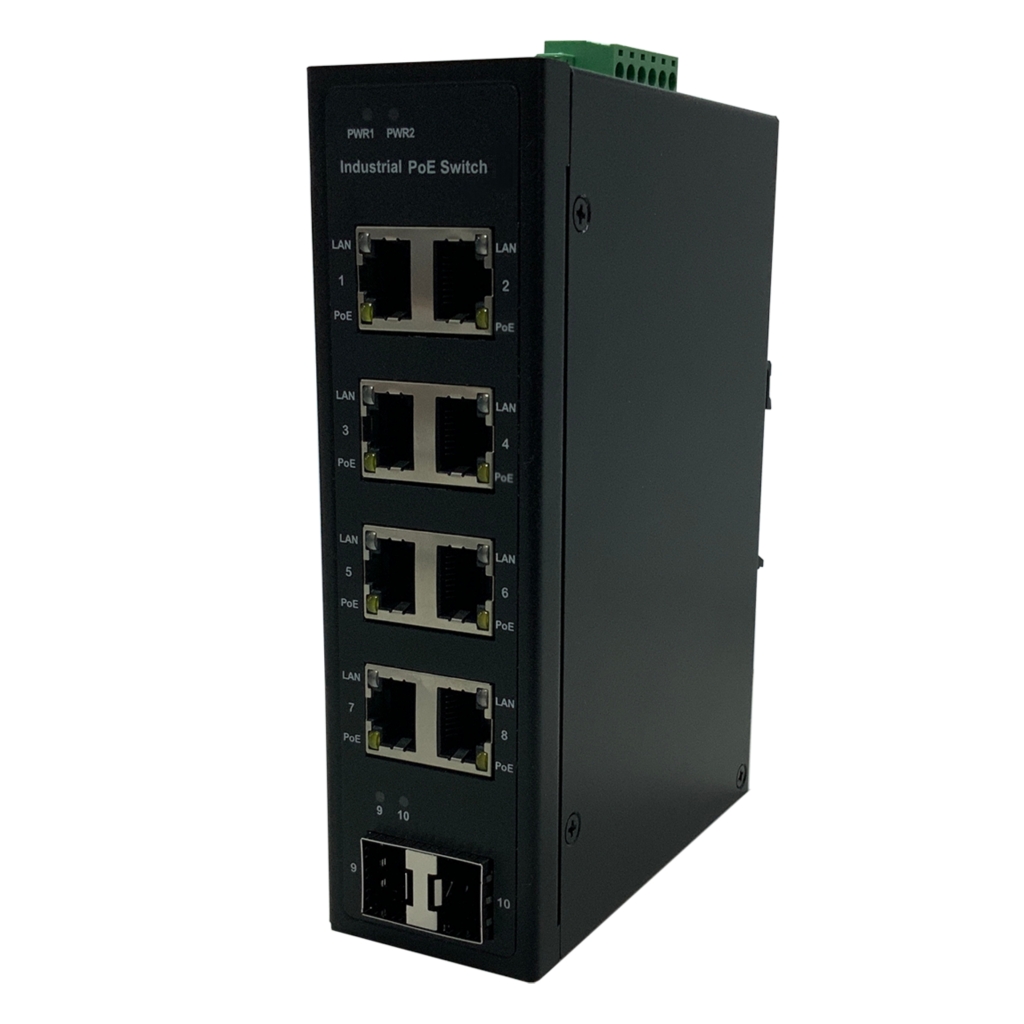

Industrial Grade DB1026GFA 10p Gigabit Switch with PoE
Yoda Harden-Graded Industrial Unmanaged Gigabit PoE Switches are designed with IP30, 6KV PoE Ethernet port surge protection, and operation temperature between -40 degree C and 75 degree C during harsh weather conditions. Besides enabling connections of IEEE 802.3at/af PoE PDs, DB1026GFA series is specially designed for latest Ultra PoE(>25.5W) PDs such as IR PTZ cameras, multi-sensor cameras, and long range PoE applications The DB1026GFA series provide multi-port Gigabit PoE (10M/100M/1G) delivering data and power to PoE PDs over a single network cable as well as additional SFP transceiver slots for flexible uplink. The DB1026GFA series has three sub-models classified as easy-to-install power source equipment (PSE) and provide power up to 30W per port.
DB1026GFA
- 30W x8 3at compliant
- 6KV surge protection on each PoE port (12KV option)
- Operating temperature between -40°C ~ 75°C
- Flexible SFP transceiver ports for uplink/downlink
- Grounding pin supported
- Supporting 10/100/1000Mbps datarates
- DIN-Rail mounting and wall mounting
- IP30 rating metal housing
- Dual power input (Power DIN, Terminal block)
- IEEE3az Energy Efficient Ethernet for green power
| Network Specifications | |
|---|---|
| Total Gigabit Ports | 10 |
| Gigabit PoE Ports (10M/100M/1G) | 8 x 30W PoE |
| SFP Slots (100M/1G) | 2 |
| Gigabit Ports (RJ45) | 8 |
| Forwarding Capacity | 29.76Mbps |
| Mac Table | 8k |
| Jumbo Frames | 9,216 Bytes |
| Switching Capacity | 20Gbps |
| Power Specifications | |
| Power 1 : Input Voltage (Power DIN) | 52VDC ~ 57VDC |
| Power 2 : Input Voltage | 52VDC ~ 57VDC |
| Output Voltage Range /per PoE Port | 52~56 VDC PoE IEEE802.3at (Max. 30W) output |
| PoE Power Budget | 380W |
| Surge Protection /each PoE Port | 6KV (12KV option) |
| Mechanical Specifications | |
| Dimensions (WxHxD) | 150x105x44 mm |
| Weight | 0.71KG |
| Connectors | RJ45 x 8, SFP x 2, Terminal Block x1, Power DIN x1 |
| Environmental Specifications | |
| Operating Temperature | -40℃~ 75℃ (-40℉~ 167℉ ) |
| Storage Temperature | -40℃~ 85℃ (-40℉~ 185℉ ) |
| Operating Humidity | 5% ~ 95% non-condensing |
| Certifications | |
| EMC | CE, FCC, VCCI |
| Safety | EN 62368-1 |
| Surge | EN61000-4-5 |
