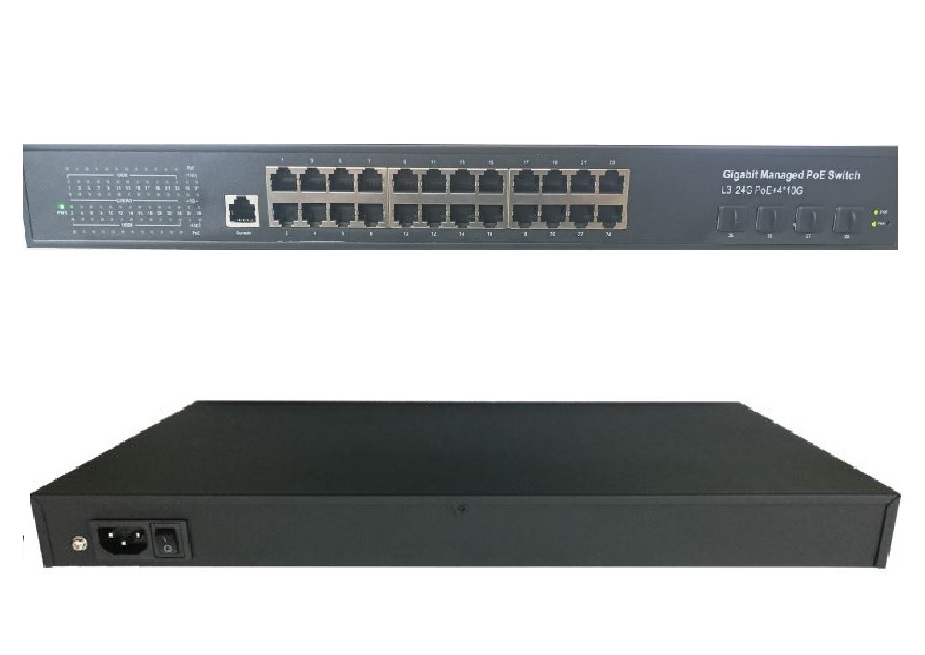

L2/L3 managed Switch PoE

Description

PS2440TGM


Key Features

  • Number of Copper Gigabit ports: 24
  • Number of Fiber 10G or 1G ports: 4
  • Port Shutdown: Support
  • Port Speed:
    *Support Auto Negotiation, full-1000, full-100, half-100, full-10, half-10
  • Flow Control:
    *Support full-duplex IEEE 802.3x, half-duplex back pressure
  • Storm Control:
    *Supports rate limit for broadcast, multicast, and DLF packets
  • Storm Constrain:
    *Support the detection of broadcast packets, multicast packets, or unicast packets on the port,
      shutdown the port if the rate is over the threshold.
  • Port Mirror: Support
  • Port Rate Limit: Support port ingress and egress rate limit
  • Link Aggregation:
    *Support manual link aggregation
    *Support LACP dynamic link aggregation
    *Supports up to 32 aggregation groups, each group up to 8 ports
    *Support source MAC, destination MAC, source destination MAC, source IP, destination IP, source destination IP routing strategy
  • Port Isolate: Support
  • Jumbo Frame: Support up to 16KB packet
  • Redundant Port: Support

    • MAC

  • MAC Table Capacity: 16K
  • MAC Table Management: Support
  • Forwarding mode: Support IVL forwarding mode
  • Static MAC Address: Support
  • MAC Address Binding: Support
  • MAC Address Filtering: Support
  • MAC Learning Control: Control the MAC learning based on port

    • VLAN

  • Number of VLANs: 4K
  • 802.1q-based VLAN: Support
  • MAC-based VLAN: Support
  • IP-based VLAN: Support
  • Protocol-based VLAN: Support
  • Voice VLAN: Support
  • VLAN Mapping: Support 1:1 mapping
  • QinQ: Support basic QinQ, Support flexible QinQ

    • Reliability

  • Spanning Tree Protocol: Support STP/RSTP/MSTP
  • Port Loop Detection: Support
  • EAPS: Support
  • ERPS: Support G.8032/Y.1344
  • LLDP: Support LLDP & LLDP-MED
  • UDLD: Fully compatible with CISCO's UDLD protocol
  • VLLP (VRRP Layer-2 Loop Protection): Support, Only used with VRRP

    • L3

  • ARP: Support static and dynamic ARP
  • Static Route: Support
  • VLAN Interface: Support 32 VLAN interfaces
  • RIP: Support RIP v1/v2
  • OSPF: Support OSPFv2
  • Policy Route: Support
  • VRRP: Support

    • Multicast

  • Static Multicast MAC Address: Support
  • IGMP SNOOPING:
    *Support IGMP SNOOPING v1/v2/v3
    *Support IGMP Querier
    *Support IGMP SNOOPING Filter
  • MVR: Support
  • GMRP: Support

    • ACL

  • Standard IP-based ACL: Support
  • Extended IP based ACL: Support
  • MAC IP-based ACL: Support
  • MAC ARP-based ACL: Support
  • ACL Port Filtering: Support
  • Time-based ACL: Support

    • QoS

  • Port Queue Number: 8
  • Port Queue Scheduling Mode: Support WRR, RR, WDRR, SP
  • Port-based Classification: Support
  • 802.1p-based Classification: Support
  • DSCP-based Classification: Support
  • ACL-based Classification: Support
  • QoS Policy:
    *Support packets mapping to queue
    *Support COS or DSCP Remarking
    *Support rate limits of data flow
    *Support data flow statistics
    *Support mirroring of data flow

    • DHCP

  • DHCP Client: Support
  • DHCP Snooping: Support
  • DHCP Relay: Support
  • DHCP Server: Support
  • DHCP option 82: Support

    • Management

  • CLI Management: Support Console, Telnet, and SSH
  • WEB Management: Support HTTP and HTTPS
  • SNMP Management:
    *Support SNMP v1, v2c
    *Support SNMP TRAP
    *Support lots of standard and private MIBs
  • User Management: Support multiple user management
  • Log Management: Support local log management, Support SYSLOG
  • RMON: Support RMON 1, 2, 3 and 9 groups
  • Cluster Management: Support:
    *Support NDP
    *Support NTDP
    *Support NTDP
    *Support cluster unified management
  • Configuration File: Support uploading and downloading configuration file
  • Upgrade software: Support
  • Clock Management: Support local clock management, Support SNTP

    • Security

  • Switch Management Security:
    *Support enabling and disabling TELNET, WEB and SNMP services
    *Support TELNET, WEB and SNMP services to bind to standard IP ACLs
    *Support for limiting the number of TELNET connections
  • CPU Protection: The PS2440TGM switch's own security protection prevents large data streams from attacking the switch itself.
  • AAA:
    *Support 802.1x
    *Support RADIUS
    *Supports authentication, authorization, and accounting through RADIUS server
    *Support port-based and MAC-based 802.1x
    *Support 802.1x guest VLAN
  • IP MAC Binding: Support static configuration of IP, MAC and port binding
  • DHCP SNOOPING:
    *Support dynamic ARP binding to prevent ARP spoofing
    *Support dynamic IP, MAC and port binding
    *Support fixed port to connect to DHCP server to prevent private connection to DHCP server
  • Prevent ARP Spoofing:
    *Support manually configuring MAC ARP-based ACL rules to prevent ARP spoofing.
    *Support the DHCP SNOOPING function. During the process of obtaining an IP address by DHCP, the switch dynamically binds ARP to the port to prevent ARP spoofing.

    • PoE

  • Switch Control: Support POE on and off per port basis
  • Power Control: Support setting total power budget
  • Other Advanced Features: Support POE scheduling policy and PD online query, etc.

    • Debugging

  • PING: Support
  • TRACEROUTE: Support
  • TELNET Client: Support
Specifications
Fixed Port 24*10/100/1000Base-TX
4*10G SFP+
PoE Port 1-2 port supports PoE++ IEEE 802.3af/at/bt
3-24 port supports PoE+ IEEE 802.3af/at
PoE type IEEE802.3af/at (Max. 30W per port basis)
Console Port 1*console port
Reset Key 1
CPU 400MHz ARM(R) Cortex(TM)-A9
DDR 2G DDR3 1333MHz
Buffer Fully integrated 1.5 MB packet buffer
FLASH 64M
RAM 256M
Bandwidth 256Gbps
Packet Forwarding 92.32Mpps
MAC Address 16K
Network Protocol IEEE 802.3
IEEE 802.3u 100BASE-TX
IEEE 802.3ab1000BASE-T
IEEE 802.3x
IEEE 802.3z 1000BASE-X
IEEE 802.3af/at
IEEE 802.3ad
IEEE 802.3q, IEEE 802.3q/p
IEEE 802.1w, IEEE 802.1d, IEEE 802.1S
STP (Spanning Tree Protocol)
RSTP/MSTP(Rapid Spanning Tree Protocol)
EPPS ring network protocol
EAPS ring network protocol
Port Specification 10/100/1000BaseT(X) Auto
Transmission Mode Store and Forward (full wire speed)
Transmission Distance 10BASE-T : Cat3,4,5 UTP (<=250 meter)
100BASE-TX : Cat5 or later UTP (<=100 meter)
1000BASE-TX : Cat6 or later UTP (<=100 meter)
LED Indicator PWR: Power LED
SYS: (System LED)
1~24: (Link LED=10/100M Link, 1000M=Gigabit Link)
1~24: (PoE LED=PoE on)
25~28:(SFP+ LED)
Input Power Built-in power AC 100~240V 50/60Hz
Max Current 4.8A
Max Power 400W
Operating Temperature/Humidity -20 ~ +55 degree C; 5% ~ 90% RH Non Condense
Storage Temperature/Humidity -40 ~ +75 degree C; 5% ~ 95% RH Non Condense
Physical size Product size: 440mm*290mm*45mm
Packing size: 515mm*375mm*95mm
N.W/G.W (kg) 3.5kg/4.3kg
Installation type 1U Rack type, 19 "
Lightning protection level 3KV 8/20us; IP30
Certificate CE mark, commercial ; CE/LVD EN60950;
FCC Part 15 Class B; RoHS ;
Warranty Whole device for 1 year (Accessories not included)
