Description
2.5G IEEE802.3bt PoE Injector
PI100QB, a 2.5Gbps IEEE802.3bt PoE injector with a built-in AC-DC power supply, is suitable for indoor PoE applications through Ethernet cable CAT5e or higher grade LAN cable like CAT6. It can be powered up by normal 100V~240V AC input.

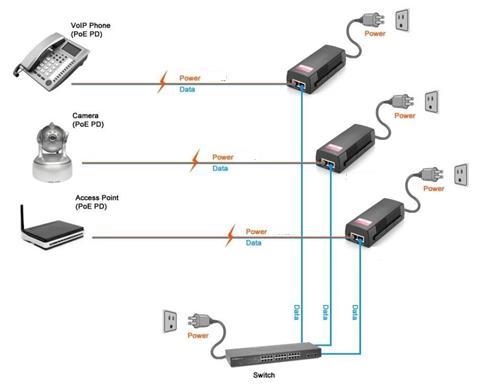

The PoE injector consists of two RJ45 connectors; one port is for Ethernet data only (IN), and another port for Ethernet data with injected PoE (Power over Ethernet) output (OUT).
The injector provides PoE power supply application compliant to IEEE 802.3af/at/bt standards for Ethernet equipment, such as advertising machine, small base station, switch, wireless AP, industrial network terminal, network camera, etc.
It meets the requirements of efficient power provision in which power cannot be available at the remote end with simple/easy installation.
PI100QB
- 4-Pair power up to 60W (90W optional with metal casing)
- IEEE 802.3bt compliant - higher power
- Compatible with all IEEE 802.3at, 802.3af and legacy power supply devices
- Safety: devices only receive the power required through 4 pairs with over current protections.
- Ethernet DC power supply complies with SELV
- Automatic detection and protection of non-standard Ethernet terminals
- Support Ethernet data rate of 10/100/1000/2500Mbps applications
- Compact design for easy installation of WLAN access points
| Specification | |
|---|---|
| Standard | IEEE802.3af/at/bt |
| Number of PoE port | 1 |
| Passing data rate | 10/100/1,000/2,500 Mbps |
| Pin assignment and polarity | 1,2,4,5(+) / 3,6,7,8(-) |
| Output power supply voltage | 52-56VDC |
| User port power | maximum 60W (90W optional with metal casing) |
| AC input voltage | 100 to 240 VAC |
| AC frequency | 50 to 60 Hz | Bare metal size | 145 *60* 40mm |
| Package size | 210*125*55mm |
| Weight | 0.3kg |
| Indicator | AC power (green) POE (yellow) | Connectors | shielded RJ-45, EIA 568a and 568B | Installation structure | wall mounted | Operating temperature | 0 ° - 40 ° C | Storage temperature | -20 ° - 80 ° C | Storage humidity | maximum 95%, non-condensing | Compliant | RoHS, CE, FCC | Electromagnetic emission and immunity | FCC Part 15, class B, EN 55032, EN 55035 | Safety certification en | IEC 62368-1 |
