Web Smart PoE

Description

Its cost saving and centralized power distribution using of PoE, eight ports of PW800MA provides PoE power injecting function which is able to drive 8 x IEEE 802.3at/af, Mid-span compliant powered devices in the remote different locations. For small area such as home, SMB office, PW800MA provides a simple, cost-effective, and highly reliable network connection for data and power feeding remotely.

Advance and User-Friendly PoE Management Features
The PW800MA offers PoE Power Control, PoE Priority Control, PoE Power Delay and PoE Scheduling on each PoE ports.

IEEE 802.3at/af Power Source Switch
The PW800MA has (8) 10/100BASE-TX ports that support midspan PoE standards. It is designed to inject up to 30 Watts of power per port. Each port can automatically detect if any 802.3at/af, Mid-span compliant device is attached and supply power which will be automatically adjusted to fit into the device. The PW800MA also supports active circuit protection, which automatically disables a port if there is a short, while the other ports remain active.

Simple Wiring and Installation
PW800MA reduces cables and eliminates the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. Providing 8 PoE interfaces, the PW800MA is ideal for small business and workgroups requiring to deploy the PoE for the wireless access points, network camera or IP phones in any places easily.

Easy Configuring Web Management Interface
The Web smart functions make it easy to survey and control the PoE power provision to the devices by the Web interface. Basic switching functions such as VLAN, Bandwidth Control, Storm Control and QoS are available for network management.
The smart functions make it easy to survey and control the PoE power provision to the devices by the Web interface. Basic switching functions such as VLAN, Trunk, QoS are available for network management.

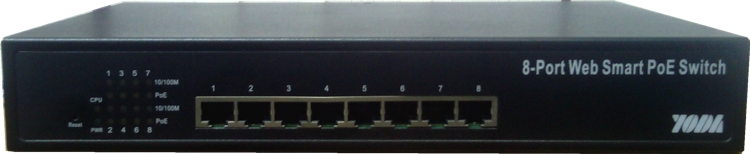

PW800MA


  • PoE Power Control: Each PoE port able to enable or disable PoE output
  • PoE Priority Control: prioritizes budgetary power to critical applications
  • PoE Power Delay
  • PoE Scheduling by 7 days x 24 hours base
  • Up to 30W of power output per PoE port
  • IEEE 802.3at/af, midspan PoE compliant
  • Low power devices receive only the power they need
  • Safe and reliable power to WLAN access points
  • Automatic detection and protection of nonstandard Ethernet terminals
  • Supports 10/100 Base-T Ethernet
  • Compact design fits easily in WLAN access
  • Plug-and-Play with simple configuration required
  • Internal power supply of upto 250w
  • Easy installation and maintenance
Hardware Specification
Network Connector 8-Port RJ-45 for 10/100Base-TX
PoE Inject Port 8-Port with PoE injector(PSE) function, Port-1 to Port-8
LED Display One Power
1-8 port PoE in-use, LNK / ACT
1-8 port LNK /ACT
Switch Architecture Store and Forward switch architecture
Switch Fabric 1.6Gbps
MAC Address 1K MAC address table with Auto learning function
Power AC 100~240V, 50/60Hz,
Power Consumption Internal Power, Max. 250 watts
Dimension(W x D x H) 262 x 160 x 44 mm
Weight 2.2kgs
Power over Ethernet
PoE Standard IEEE 802.3at/af, Mid-span Power over Ethernet / PSE
PoE Power Supply Type Mid-span
PoE Power Output Per Port 56V DC, 580mA. Max. 30 watts
Power Pin Assignment 4/5(+), 7/8(-)
PoE Power Budget 250 watts
Web Smart Switch Function
Management Web management,SNMP Trap
VLAN Port-Based VLAN and IEEE 802.1Q Tag-Based VLAN, ip to 16 VLAN Groups
QoS 2 priority queues for three type of Class of Service
  • Port-Based
  • IEEE 802.1p priority tag
  • TCP / IP header’s DSCP classifier
Weighted Round Robin queue scheduling
Bandwidth Control Inbound Rate Limit and Outbound Traffic shaping
Storm Control Disable, 12.5%, 25%, 50%, 62.5% 4 levels
Standards Conformance
EMI Safety FCC Part 15 Class A, CE
Operating environment 0~40 degree C, 10%~95%RH
Storage environment -40 ~ 70 degree C, 95% RH
Operating Humidity 5% to 90%, relative humidity, non-condensing
Storage humidity 5% to 90%, relative humidity, non-condensing
Standards Compliance IEEE 802.3: 10Base-T
IEEE 802.3u: 100Base-TX
IEEE 802.3x: Flow Control
IEEE 802.1p: Class of Service
IEEE 802.1Q: VLAN Tagging
