Description

Modern business networks are used for increasingly diverse applications -traditional data streams, VoIP voice traffic, video output from digital security cameras and remote control devices to name a few. The range of devices attached to today's converged network often need to be supported not just in terms of data - equipment such as VoIP IP telephones and Wireless Access Points frequently need to be powered in physical locations where mains power is not available or difficult to deliver. Providing power to such devices via an Ethernet UTP cable is an elegant and easy to implement solution. The 8 Port 10/100Mbps PoE+ Switch offers advance switching controls and provides power to network devices using Ethernet cables. This scalable and cost effective solution allows a managed network to efficiently expand to previously unattainable levels.

The feature rich 8-port switch offers websmart network management to meet the accelerating demand for secure manageable networks. LED displays show device status for easy power management and troubleshooting. PoE technology conveniently eliminates the need to install networked devices, such as IP cameras and access points, near a power outlet, thereby reducing equipment and installation costs.

The PS822M offers 8 10/100Mbps Fast Ethernet ports and 2 Gigabit UTP/SFP combo ports. The two Gigabit UTP/SFP combo ports can be either 1000Base-T for 10/100/1000Mbps or 1000Base-SX/LX through SFP (Small Factor Pluggable) interface. PS822M performs a high performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as 5.6Gbps. Its two built-in GbE uplink ports also offer incredible extensibility, flexibility and connectivity to the core switch or servers.

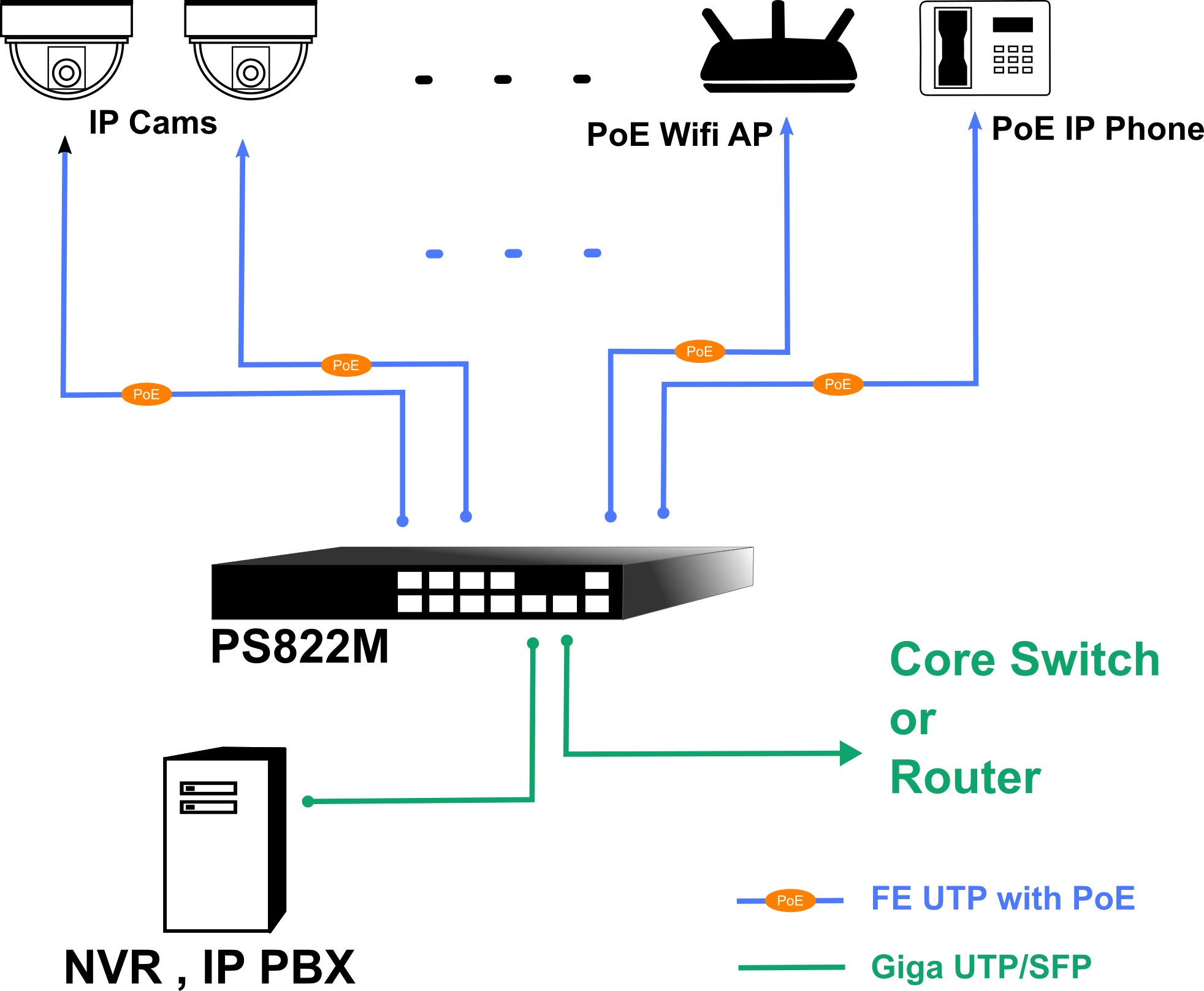

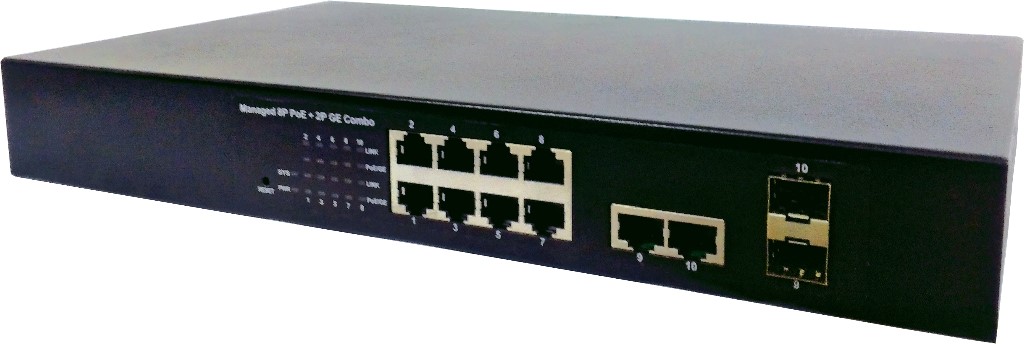

PS822M


  • 8 10/100Mbps Fast Ethernet ports and 2 Gigabit UTP/SFP Combo ports
  • Up to 30W of power output per PoE port
  • Complies with IEEE 802.3at/af or Legacy PoE
  • Web Smart Switch Function Management
  • Automatic Detection and Protection of Non-standard Ethernet Terminals
  • PoE Power Control, Power Delay, Scheduling, Auto Check
  • Port-Based VLAN and IEEE 802.1Q Tag-Based VLAN, up to 30 VLAN groups
  • VLAN ID 1~4094
  • Bandwidth control, Inbound Rate Limit, Outbound Traffic Shaping
Hardware Specification
10/100Mbps Copper Ports 8 10/100Base-TX RJ-45 Auto-MDI/MDI-X ports
1000Mbps Copper Ports 2 10/100/1000Mbps RJ-45 Auto-MDI/MDI-X ports
SFP/mini-GBIC Slots 2 1000Base-SX/LX, Combo with Port 9,10
Switch Architecture Store-and-Forward
Switch Fabric 5.6Gbps / non-blocking
Switch Throughput 4.16Mbps @64Bytes
Address Table 8k entries
Share Data Buffer 512K bytes or 4,096Mbit
Maximum Frame Size 9K Bytes
Flow Control Back pressure for Half-Duplex
IEEE 802.3x Pause Frame for Full Duplex
LED PWR, SYS
Port 1 ~ 8
LINK (Green)
PoE ( Amber)
Port 9, 10
LINK (Green)
GE (Green)
RESET Button < 5 sec: System reboot
> 5 sec: Factory Default
Dimension(W x D x H) 330 x 190 x 44mm
Weight 2.1kgs (250w)
Power Requirement 100~240V AC, 50~60Hz
Power Consumption /
Dissipation
150w/250w
Power over Ethernet
PoE Standard IEEE 802.3at/af Power over Ethernet / PSE
PoE Power supply Type End-Span
PoE Pin Assignment 1/2(+), 3/6(-)
PoE Power Output Per port 56V DC, 350mA~560mA, Max 15.4~30 Watts
PoE Power Budge 240 Watts Max.
Standards Conformance
Regulation Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3: 10Base-T
IEEE 802.3u: 100Base-TX
IEEE 802.3z: 1000Base- SX/LX
IEEE 802.3ab: 1000Base-T
IEEE 802.3x: Flow Control
IEEE 802.1p: Class of Service
IEEE 802.1Q: VLAN Tagging
IEEE 802.3at/af: Power over Ethernet
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
Environmental
Operating Temperature: 0~ 40 ℃
Relative Humidity : 20 ~ 95%
Storage Temperature: -10~ 70 ℃
Relative Humidity : 20 ~ 95% (non-condensing)
Web Smart Functions
System Configuration Web Interface, SNMP v1 / V2c
Port Management Port Configuration, Mirroring, Bandwidth Control,
Broadcast Storm Control
VLAN Setting Port-Based VLAN up to 30 groups,
802.1Q tagged-based VLAN up to 30 VLAN groups,
VLAN IDs 1~4094
Multi to 1 Setting
QoS Setting Assign First-In-First-Out, All-High-before-Low or
Weight-Round-Robin QoS policy and each port for
High / Low priority.
Security MAC Address Binding, TCP/UDP Filter, Web Security by
access port.
Spanning Tree STP IEEE 802.1D Spanning Tree Protocol
RSTP IEEE 802.1w Rapid Spanning Tree Protocol
Trunk Link Aggregation Algorithm :
2 groups of 4-port 10/100BASE-TX (port 1~4 , 5~8)
1 group of 2-port 10/100/1000BASE-T (port 9,10)
PoE Setting PoE Status, Setting, Event Counter, Power Delay,
Scheduling, Auto Check, NTP Setting
IGMP IGMP(v1/v2) Snooping
