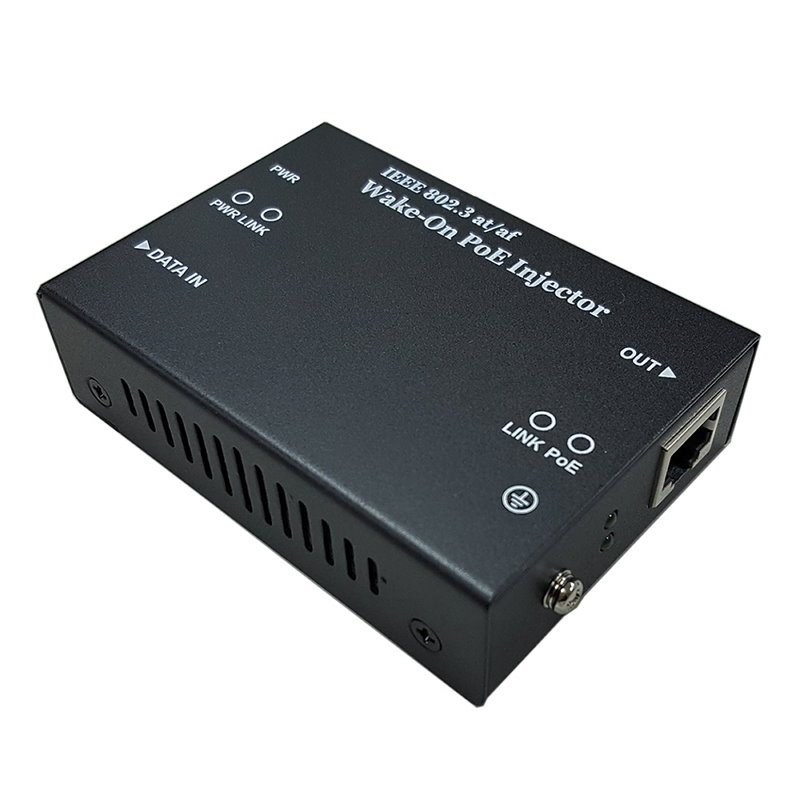

802.3at/af Gigabit Wake-On PoE Injector

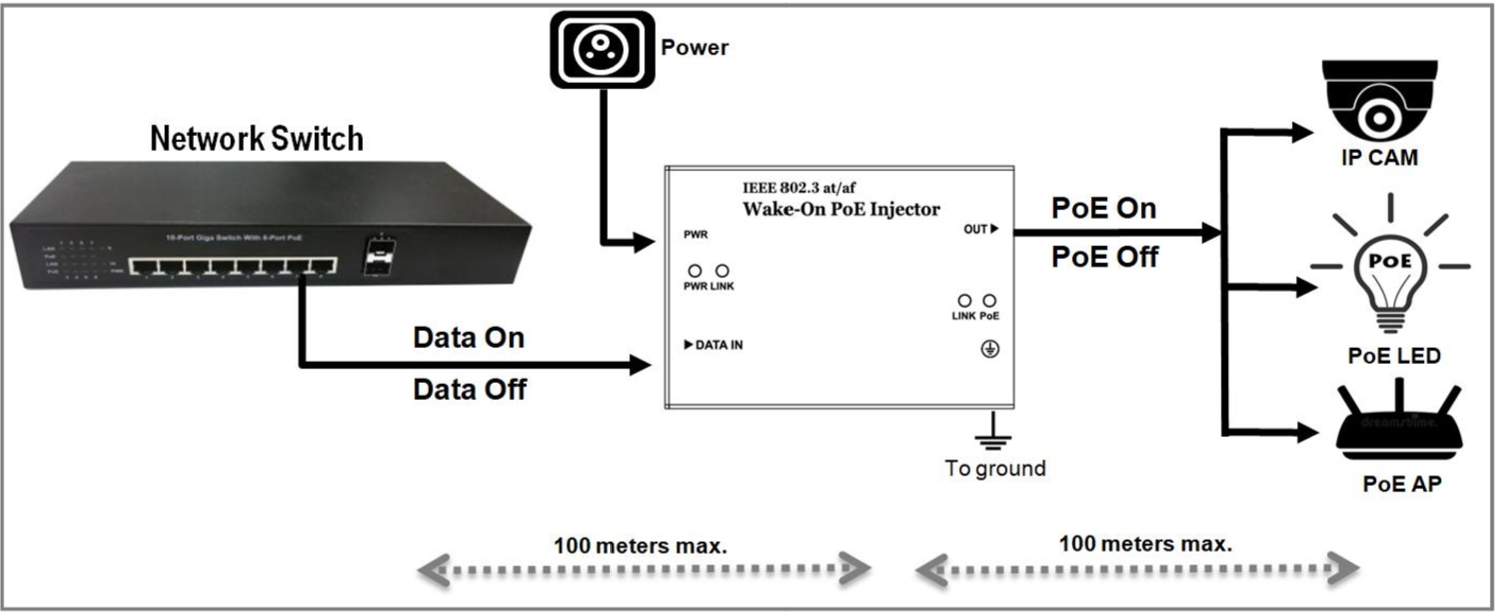

The Wake-On PoE Injector WPI100AG is designed to use the Ethernet Data Input to wake on PoE power injecting IEEE 802.3af/at compliant PD device for up to 30watt. By enabling/disabling the input Ethernet data transmission, it allows user to turn on/off the power for the PD device. This Wake-On PoE is featured as manageable, energy-saving, remote reset and LAN extender for the applications with unmanaged / managed Ethernet Switch. It’s an ideal solution to meet various working scenarios and reducing troubleshooting time. The WPI100AG performs significantly well in power saving function.

WPI100AG


  • Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u, 100BASE-TX,
    IEEE802.3ab, 1000BASE-T
  • Complies with IEEE802.3af/at Standard
  • Supports PoE power up to 30 watts
  • PoE Power output controlled by Ethernet Data Input
  • Manageable function when WPI100AG co-work with managed Network switch
  • LAN Extender
  • Power On Demand (Power-Saving)
  • Remote Reset
  • PoE Surge Protection: 2KV (Optional: 6KV)
  • PoE Power Detection Function
  • Wall-mount design with metal case
  • Plug and Play
Hardware Specification
Standard IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-T
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
DATA IN 1 10/100/1000BASE-T RJ45 auto-MDI/MDI-X port
Out Port 1 10/100/1000BASE-T RJ45 auto-MDI/MDI-X port
POWER OVER ETHERNET
PoE Standard IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
PoE Power Supply Type End-span
PoE Power Output Per Port 48~56V DC, Max. 30 watts
Power Pin Assignment 1/2(+), 3/6(-)
LED INDICATORS PWR, LINK (DATA IN), LINK (DATA OUT), PoE
PHYSICAL SPECIFICATION Item dimensions (WxDxH): 90 x 63 x 25 mm
POWER 48~56VDC External Power Adapter
CERTIFICATION FCC / CE / LVD
OPERATING ENVIRONMENT Operating temperature: 0 - 50℃
Storage temperature: -20 - 70℃
Humidity: 20 - 95% non-condensing
