Description
IEEE802.3bt 2.5G/1G 60/90w PoE Injector

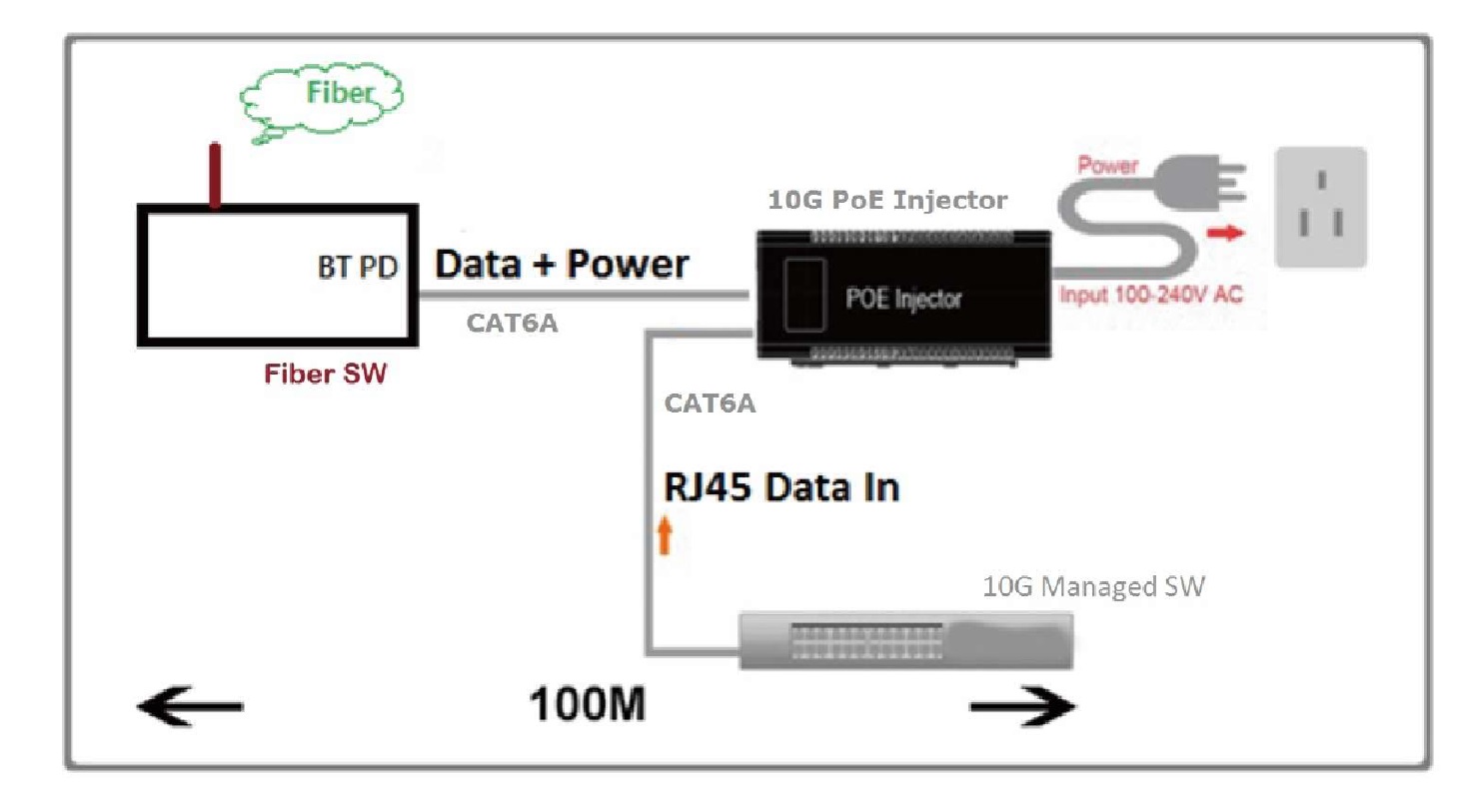

PU100GBT is a single port, IEEE 802.3bt 60/90w PoE Injector solution with 10Gbps Ethernet for remote PoE PD devices. Delivering up to 60W/90W through 4pairs in CAT6A, the PU100GBT supplies remote power for new applications such as wireless Access Points, Pan-Tilt-Zoom (PTZ) IP cameras, and IP video-phones.
It complies to IEEE 802.3bt/at/af PoE++ standard on both end-point and midspan pairs to deliver with a total power of 60W/90w PoE output. It can work with 10/100/1000Base-T networking devices and 10/5/2.5/1Gbps Ethernet devices such as Wi-Max and wireless IEEE 802.11n access points.

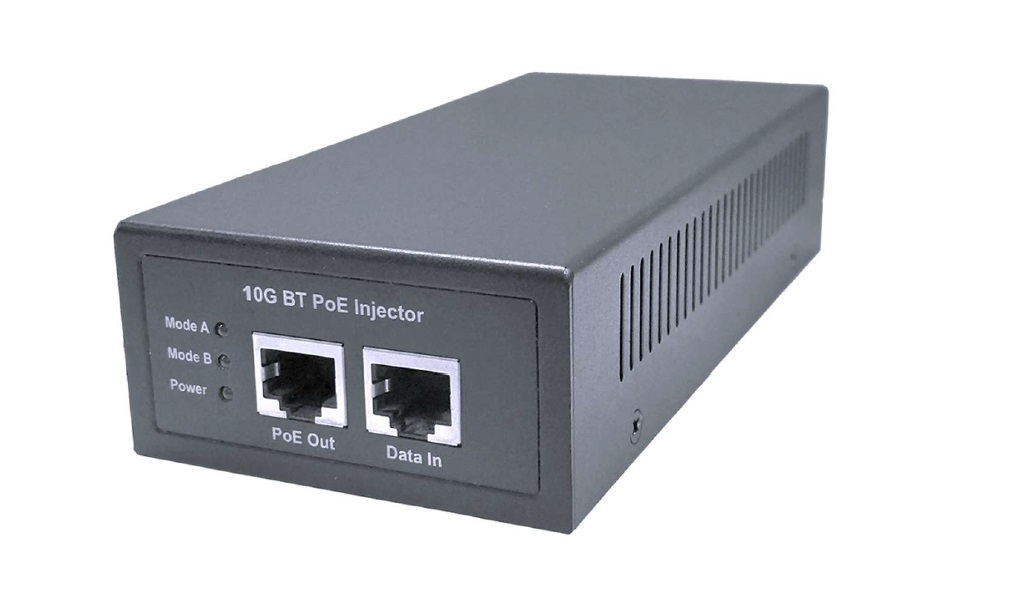

PU100GBT
Key Features
- Up to 60/90W of PoE Power feeding on 4-pairs
- IEEE 802.3bt/at/af PoE Compatible
- Compatible with IEEE 802.3af or Legacy PoE application devices
- Safe on Low Power Devices Receive Only the Power needed
- Safe and Reliable Power to WLAN Access Points
- Automatic Detection and Protection of Non–standard Ethernet Terminal Devices
- Supports 10G/5G/2.5Gbps, 1000M/100M/10Mbps, Ethernet LAN environment
- Support 10Gbps data link for CAT6A up to 70m at PoE 60W/90W output
| Hardware Specification | |
|---|---|
| Interface |
Data In Ports: RJ-45 PoE Out Ports: RJ-45 |
| Data Speed | 10G/5G/2.5G/1000M/100M/10Mbps |
| PoE Power Output | 56VDC Max. 60/90 Watts |
| Input Power voltage | 100-240VAC, 50/60Hz |
| LEDs | AC Power (Green), PoE Status x 4 (Green) |
| Network Cable |
10Base-T: 2-Pair UTP Cat. 3, 4, 5, up to 250m 100Base-TX: 2-Pair UTP Cat. 3, 4, 5, up to 100m 1000Base-TX: 2-Pair UTP Cat. 3, 4, 5, up to 100m 2.5G/1000Base-T: Cat.5e or higher UTP (<=100m) 5G Base-TX Cat.6 or higher UTP (<=100m) 10G Base-X Cat.6A or higher UTP (<=100m) |
| Dimension (W x D x H) | 180 x 71 x 37 mm |
| Weight | 530 g |
| Operating Temperature | 0 ~ 40% |
| Storage Temperature | -40 ~ 70% |
| Humidity | 5 ~ 95% (non-condensing) |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3at/af/bt |
| PoE Function | Auto Recovery, OVP, OCP, OTP |
| PoE Power Output | DC 56V max. 60w/90 watts |
| PoE Pin Polarity | Pin1/2(-), pin3/6(+), pin4/5(+), pin7/8(-) |
| Power Module Budget | 65W (Optional 36W or 90W) |
| Standards Conformance | |
| Standards Compliance |
IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3az 1000Base-TX Gigabit Ethernet IEEE 802.3an/bz, 10GBase-T, 5G/2.5GBase-T IEEE 802.3af/at/bt Power over Ethernet |
| Regulation Compliance | FCC Part 15 Class A, CE |
