Injector Splitter Converter PoE

Description

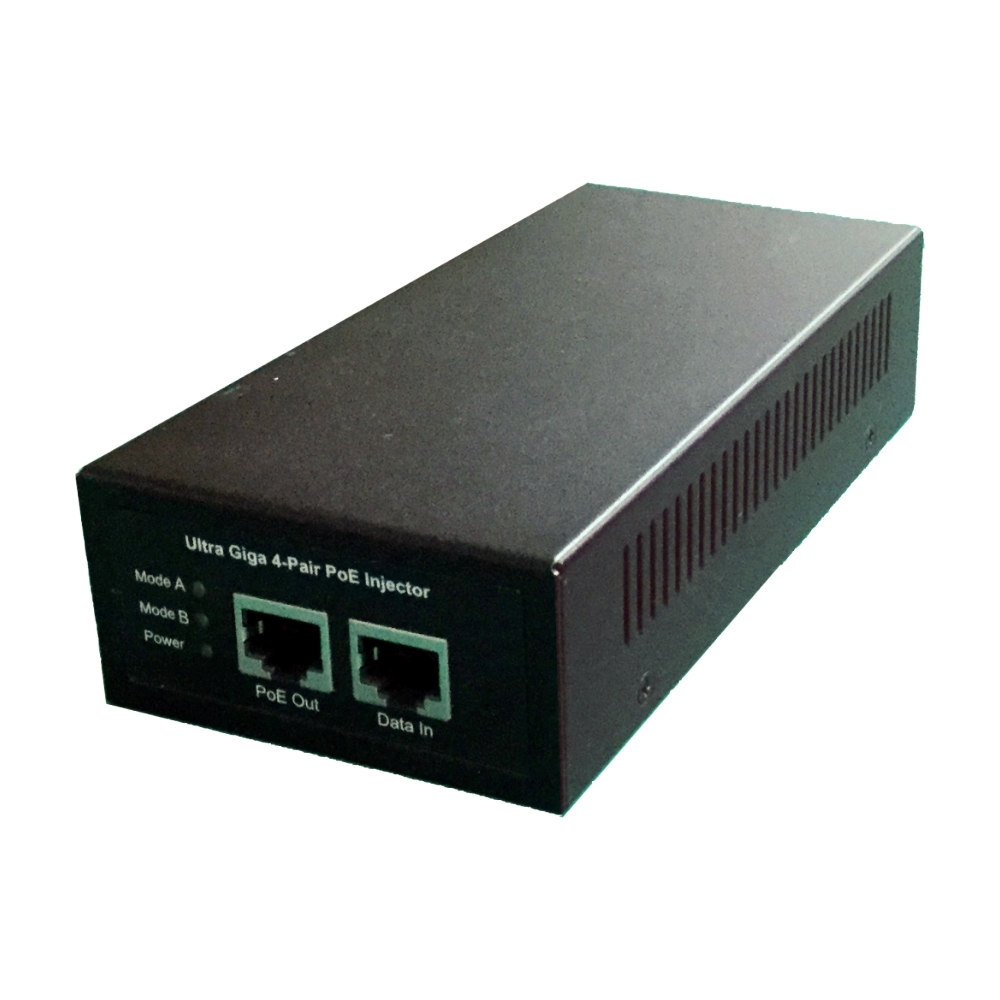

PU100GB
IEEE 802.3bt Gigabit Injector 90w

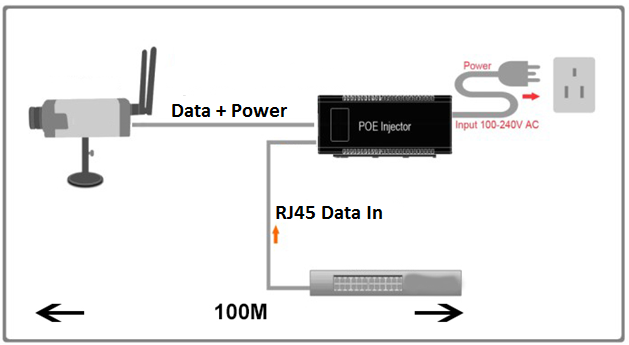

PU100GB is a single port, IEEE 802.3bt 90w PoE PSE solution for remote PoE PD devices. Generating up to 90W through 8 pins, PU100GB supplies remote power for new applications such as wireless Access Points, pan-tilt-zoom (PTZ) IP cameras, lighting, Panel display for digital signage and video-phones. It complies to IEEE 802.3bt PoE++ standard to deliver 90w on both end-point and midspan pairs with a total power of 90w PoE output. It can work with 10/100Base-T networking devices and emerging 1000Base-T devices such as Wi-MAX and wireless IEEE 802.11n access points.

PU100GB-90


  • Up to 90W of PoE Power Feeding on 4-pairs
  • IEEE 802.3bt Compliant
  • IEEE 802.3at/af backward compatible
  • Compatible with IEEE 802.3af/at or Legacy PoE applications
  • Safe on Low Power Devices Receive Only the Power They Need
  • Safe and Reliable Power to WLAN Access Points
  • Automatic Detection and Protection of Non–standard Ethernet Terminals
  • Supports 10/100/1000Base-T LAN environment
Technical Specifications
No. of PoE PSE Ports 1 port IEEE 802.3bt/at/af PoE
Pass Through Data Rates 10/100/1000Mbps
Pin Assignment and Polarity 1/2(-), 3/6(+), 4/5(+),7/8(-)
Output Power Voltage 56 VDC Maximal
User Port Power 90 Watts Maximal
Input Power Voltage 100-240 VAC
Dimensions 160 x 77 x 39 mm
Weight 530g
Indicators System Indicator: AC Power (Green)
Weight 530g
Connectors RJ-45
Operating Ambient Temperature 0 to 40 degree C
