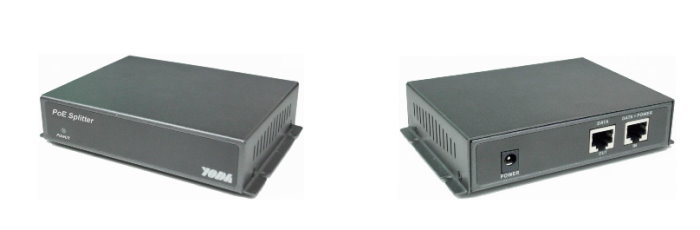

PS300A is a high power PoE Splitter for use in Power over Ethernet systems. With Ethernet Input (data + power) port and Output (data only) port, PS300A may split power from existing LAN cable and convert up to maximum 24VAC/2A for power hungry applications such as Security cameras. The internal current limit, short-circuit and overload protection are implemented to provide up to 24VAC/2A for use of AC output power.
PS300A can work in pair with PI300, a high power PoE Injector, to deliver up to 24VAC/2A for use of high power devices. PS300A is powered by PI300 and so requires no separate power connection in the middle of the cable, making it extremely easy to connect and power IP cameras.
Advantages:
Technical Specifications: | |
---|---|
LAN Interface: |
IEEE 802.3x, Auto-Detection for 10/100BaseT and full/half duplex

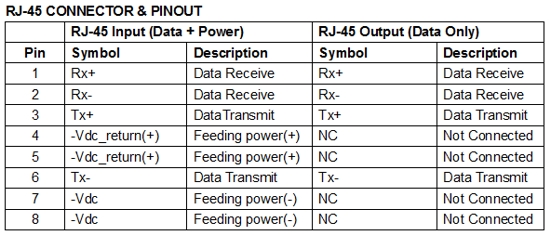

Standard Straight-through, or Cross-over CAT 5 cable Automatic MDIX function RJ-45 Connector x 2 |
POWER: | OUTPUT: 24VAC/2A at full load |
LED Indicators: | POWER: Power is ON |
Regulations & Approvals: | FCC Rules Part 15 Class A CE |
Physical Dimension: | WxDxH: 120 x 90 x 28 (mm) |
Operating Environment: | Humidity: 5% to 90% non-condensing Temperature: 0 ~ 50 degree C |
