Injector Splitter Converter PoE

Description

PS300-ODU is an outdoor high power PoE Splitter 12V for use in Power over Ethernet application. PS300-ODU can split power and data from existing LAN cable and convert up to 12VDC/2.5A for power hungry applications such as wireless AP or IP cameras. The internal current limit, short-circuit and overload protection are implemented.

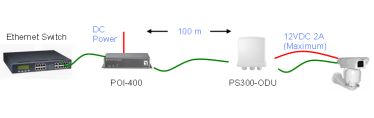

PS300-ODU can work in pair with high power PoE Injector (such as Yoda PI300, PW541, etc.), to deliver up to 12VDC/2.5A for requirement of high power devices. PS300-ODU is powered by PoE Injector and requires no separate power connection in the middle of the cable, making it extremely easy to connect and power IP cameras.

The PS300-ODU is IP65 Rain-Proof from snow, rain, typhoons, desert heat, etc. and works under harsh weather condition.

PS300-ODU


Advantages: - 12VDC 2.5A High Power PoE Power Splitter - Split Power Over Ethernet (POE) to remote devices - DC OUTPUT: 12VDC (default), 9, 6, 5, 3.3VDC (Optional) - Ethernet 100Mbps Wire Speed - Simple to install - Plug & Play - IP65 Rain-Proof design
Technical Specifications: LAN Interface: - IEEE 802.3x, Auto-Detection for 10/100BaseT and full/half duplex - Standard Straight-through, or Cross-over CAT 5 cable - Automatic MDIX function - RJ-45 Connector x 2 POWER: - OUTPUT: DC12V/2.5A at full load Regulations & Approvals: - FCC Rules Part 15 Class A - CE Physical Dimension: - WxDxH: 180 x 165 x 95 (mm) Operating Environment: - Humidity: 5% to 90% non-condensing - Temperature: 0 ~ 50 degree C
