Injector Splitter Converter PoE

Description

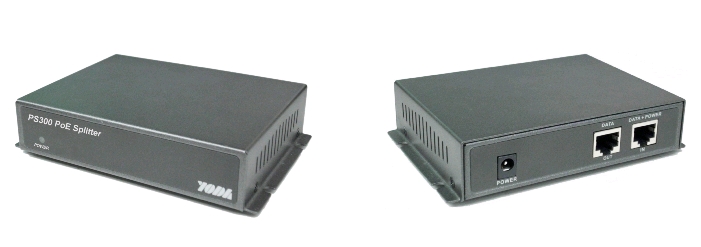

PS300 is a high power PoE Splitter for use in Power over Ethernet systems. With Ethernet Input (data + power) port and Output (data only) port, PS300 may split power from existing LAN cable and convert up to 12VDC/2A for power hungry applications such as Wireless APs, Security cameras and IP Phones. The internal current limit, short-circuit and overload protection are implemented to provide up to 12VDC/2A for use of DC output power.

PS300 can work in pair with PI300, a high power PoE Injector, to deliver up to 12VDC/2A for use of high power devices, such as 18W IP Camera. PS300 itself is powered by PI300 and so requires no separate power connection in the middle of the cable, making it extremely easy to connect and power IP cameras.

PS300


Advantages
  • E12VDC 2A High Power PoE Power Splitter
  • ESplit Power Over Ethernet (POE) to remote devices
  • EDC OUTPUT: 12, 9, 6, 5, or 3.3VDC
  • EEthernet 100Mbps Wire Speed
  • ESimple to install - Plug & Play

Technical Specifications LAN Interface - EIEEE 802.3x, Auto-Detection for 10/100BaseT and full/half duplex - EStandard Straight-through, or Cross-over CAT 5 cable - EAutomatic MDIX function - ERJ-45 Connector x 2 POWER - EOUTPUT: 12VDC 2A at full load LED Indicators - EPOWER: Power is ON Regulations & Approvals - EFCC Rules Part 15 Class A - ECE Physical Dimension - EWxDxH: 120 x 90 x 28 (mm) Operating Environment - EHumidity: 5% to 90% non-condensing - ETemperature: 0 ~ 50 degree C
