Injector Splitter Converter PoE

Description

High Power Gigabit PoE Splitter PS203G
802.3at/af, Midspan PoE In, 12/19/24VDC, GE LAN Out

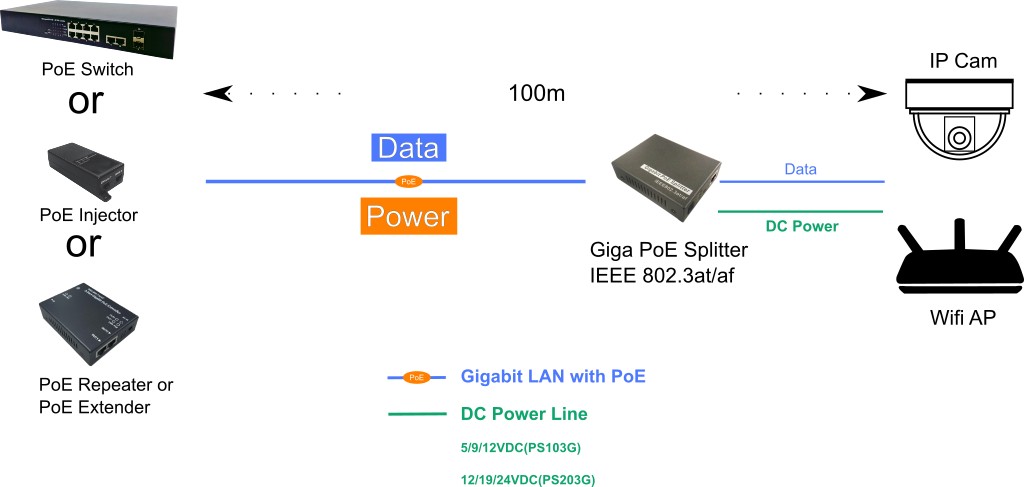

The Gigabit Power over Ethernet Splitter PS203G splits a networked PoE signal into separated power and Gigabit data sources. This device allows administrators to run Gigabit speed PoE cables over long distances and then split the PoE signal into separated data and power sources in order to network non-PoE devices.

Save installation and equipment cost when installing Thin Client PC, POS terminal, Touch Panel PC, Digital Signage Kiosk, LTE, WiMAX, WiFi AP, IP cameras and more in varied locations hard to find electrical outlets. No need to install network devices near a power outlet. This compact device safeguards valuable network equipment with short circuit protection and quickly creates an integrated PoE and non PoE network at Gigabit speeds.

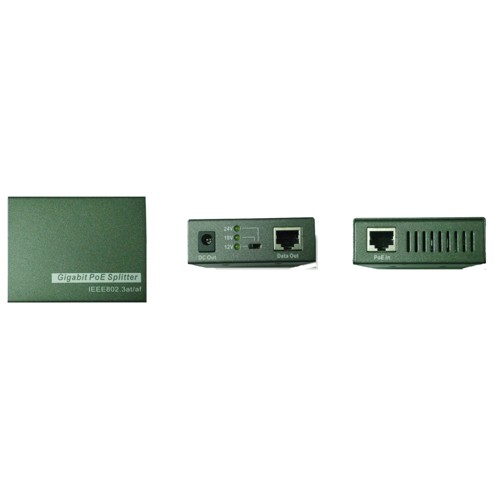

PS203G


Key Features
  • Wider working temperature of 0 ~ 50 degree C
  • Network devices at Gigabit speeds all within a compact device
  • Automatically detects PoE terminals and supplies inline power
  • Auto-sensing power drawn from 802.3at/af or midspan high power PSE devices
  • Easily install non-PoE devices where a power outlet is not available
  • Safeguards network device with short circuit protection
  • Adjustable output DIP switch for 12V, 19V and 24V adjustable DC output
  • Converts Non-PoE devices with Power Over Ethernet Support
  • Auto-sensing power drawn from 802.3at/af or midspan high power PSE devices
  • Supplies power current up to 2A with isolation circuitry
  • Light weight and compact size with wall mounting capability
Interface
- 2-Port RJ-45 interfaces : 1 x PoE (Data+Power) input, 1 x Data output
- 1-Port DC output power socket
- 1 DC 12V/19V/24V DIP switch

Power over Ethernet
- IEEE 802.3at/af PoE standard compliant
- Supports max. 24watt (24VDC) power output
- Split the 48~56V DC power over RJ-45 Ethernet cable into DC 12V/19V/24V
  output
- Remote power feeding up to 100 meters

Hardware
- Metal case with wall-mounting capability
- All-in-one compact size design
- LED indicators for Power output
- DC output DIP switch for 12V/19V/24V

Standard Compliance
- IEEE 802.3 10Base-T
- IEEE 802.3u 100Base-TX
- IEEE 802.3ab 1000Base-T
- IEEE 802.3at High Power over Ethernet
- IEEE 802.3af Power over Ethernet
- FCC Part 15 Class A, CE
