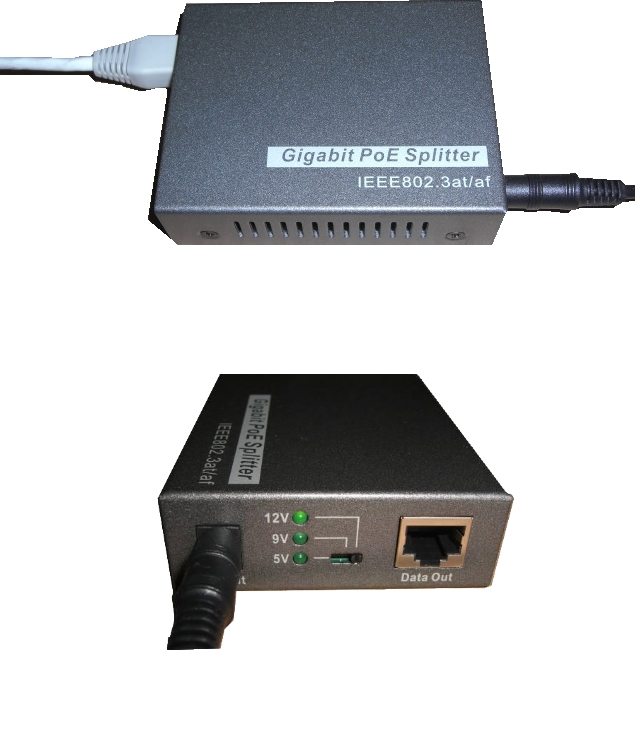

Gigabit PoE Splitter PS103G
802.3at/af PoE Input, 5/9/12VDC and Giga LAN Output

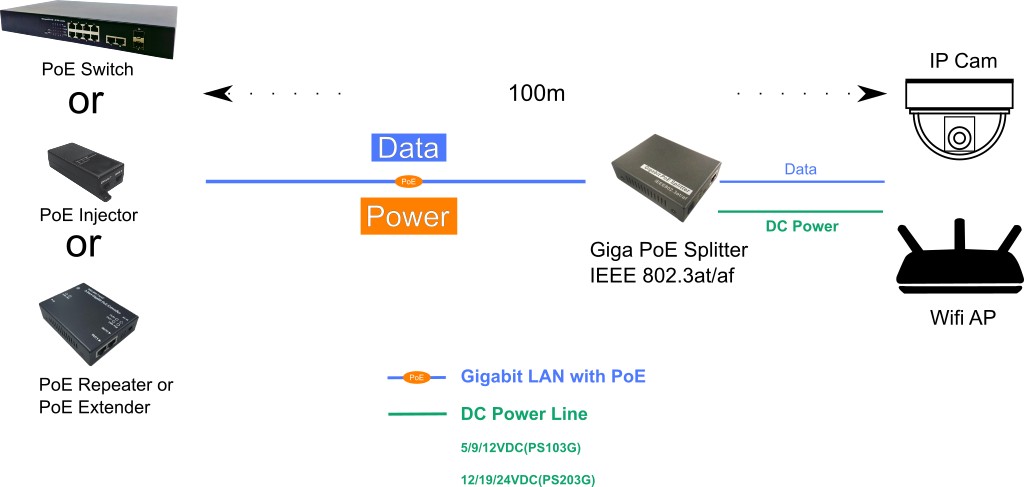

The Gigabit Power over Ethernet Splitter PS103G splits a networked PoE signal into separate power and Gigabit data sources. This device allows administrators to run Gigabit speed PoE cables over long distances and then split the PoE signal into separated data and power sources in order to network non-PoE dvices.

Save installation and equipment cost when installing Thin Client PC, POS terminal, Touch Panel PC, Digital Signage Kiosk, LTE, WiMAX, Wireless AP, IP cameras and more in varied locations hard to find electrical outlets. No need to install network devices near a power outlet. This compact device safeguards valuable network equipment with short circuit protection and quickly creates an integrated PoE and non PoE network at Gigabit speeds.

PS103G


  • Working temperature of 0 ~ 40 degree C
  • Network devices at Gigabit speeds all within a compact device
  • Automatically detects PoE terminals and supplies inline power
  • Auto-sensing power drawn from 802.3at/af or midspan high power PSE devices
  • Easily install non-PoE devices where a power outlet is not available
  • Safeguards network device with short circuit protection
  • Adjustable output DIP switch for 5V, 9V and 12V adjustable DC output
  • Converts Non-PoE devices with Power Over Ethernet Support
  • Auto-sensing power drawn from 802.3at/af or midspan high power PSE devices
  • Supplies power current up to 2A with isolation circuitry
  • Light weight and compact size with wall mounting capability
Interface
- 2-Port RJ-45 interfaces : 1 x PoE (Data+Power) input, 1 x Data output
- 1-Port DC output power socket
- 1 DC 5V/9V/12V DIP switch

Power over Ethernet
- IEEE 802.3at/af PoE standard compliant
- Supports max. 24watt (12VDC) power output
- Split the 48~56V DC power over RJ-45 Ethernet cable into DC 5V/9V/12V output
- Remote power feeding up to 100 meters

Hardware
- Metal case with wall-mounting capability
- All-in-one compact size design
- LED indicators for Power output
- DC output DIP switch for 5V/9V/12V

Standard Compliance
- IEEE 802.3 10Base-T
- IEEE 802.3u 100Base-TX
- IEEE 802.3ab 1000Base-T
- IEEE 802.3at High Power over Ethernet
- IEEE 802.3af Power over Ethernet
- FCC Part 15 Class A, CE
